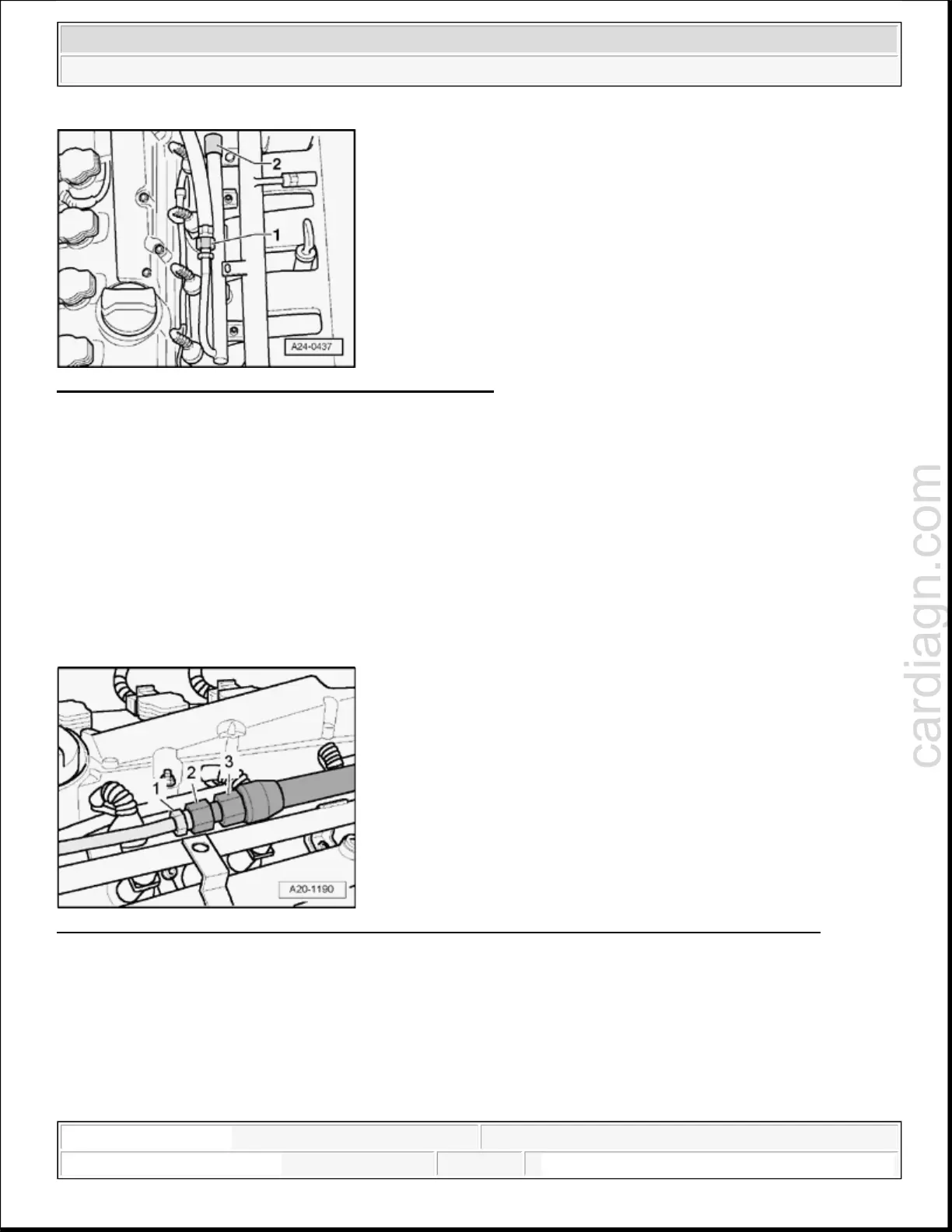

Fig. 25: Disconnecting Fuel Supply Line And Set Aside
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Disconnect fuel supply line - 1 - and set aside.
Vehicles as of 07.03
Fig. 26: Counterholding Using An Open
-End Wrench At Each Hex Head & Unscrew Union Nut
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Unscrew fuel hose from connection on fuel rail pipe. To do so, counterhold using an open-end wrench at
each hex head - 1 - and - 3 - and unscrew union nut - 2 -.
All
Seal off line so that no dirt will get into fuel system.
NOTE:
Disregard - 2 -.
CAUTION: Fuel system is under pressure! Before opening system, place rags around
the connection point. Then release pressure by carefully loosening
connection.
2005 Audi A4 Quattro
ENGINE 1.8 Liter 4-Cyl. 5V Turbo Engine Mechanical, Engine Code(s): AMB
