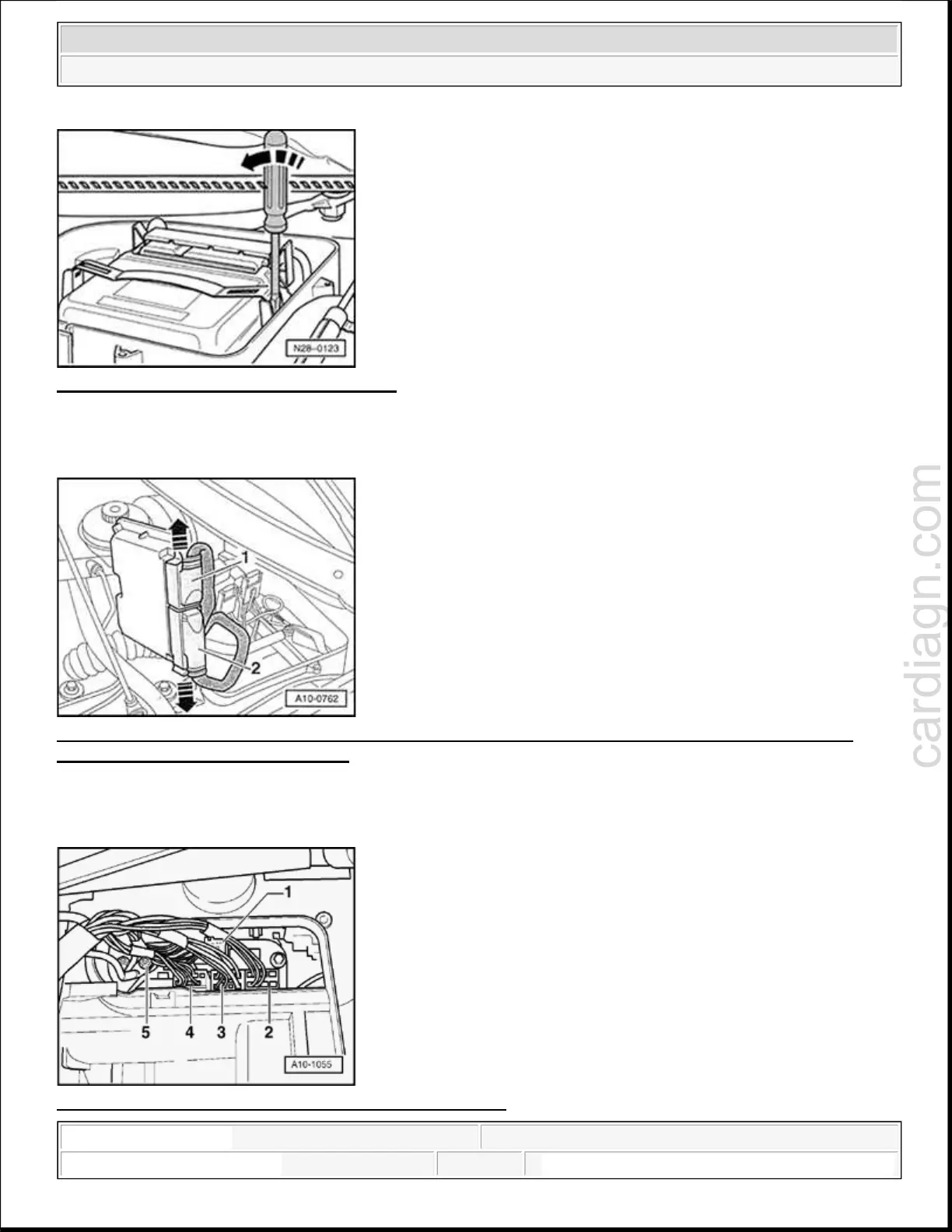

Fig. 31: Removing Engine Control Module
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Carefully pry off retainer bar with screwdriver - arrow -.
Fig. 32: Disengaging Electrical Connector Retainers And Disconnecting Electrical Connectors From
Engine Control Module (ECM) J623
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Release catches - arrows - and disconnect control module connectors - 1 - and - 2 -.
Fig. 33: Disconnecting Connectors From Connector Rail
2005 Audi A4 Quattro
ENGINE 1.8 Liter 4-Cyl. 5V Turbo Engine Mechanical, Engine Code(s): AMB
