Disconnect connectors 1...4 from connector rail.
Unbolt wire connector - 5 -.

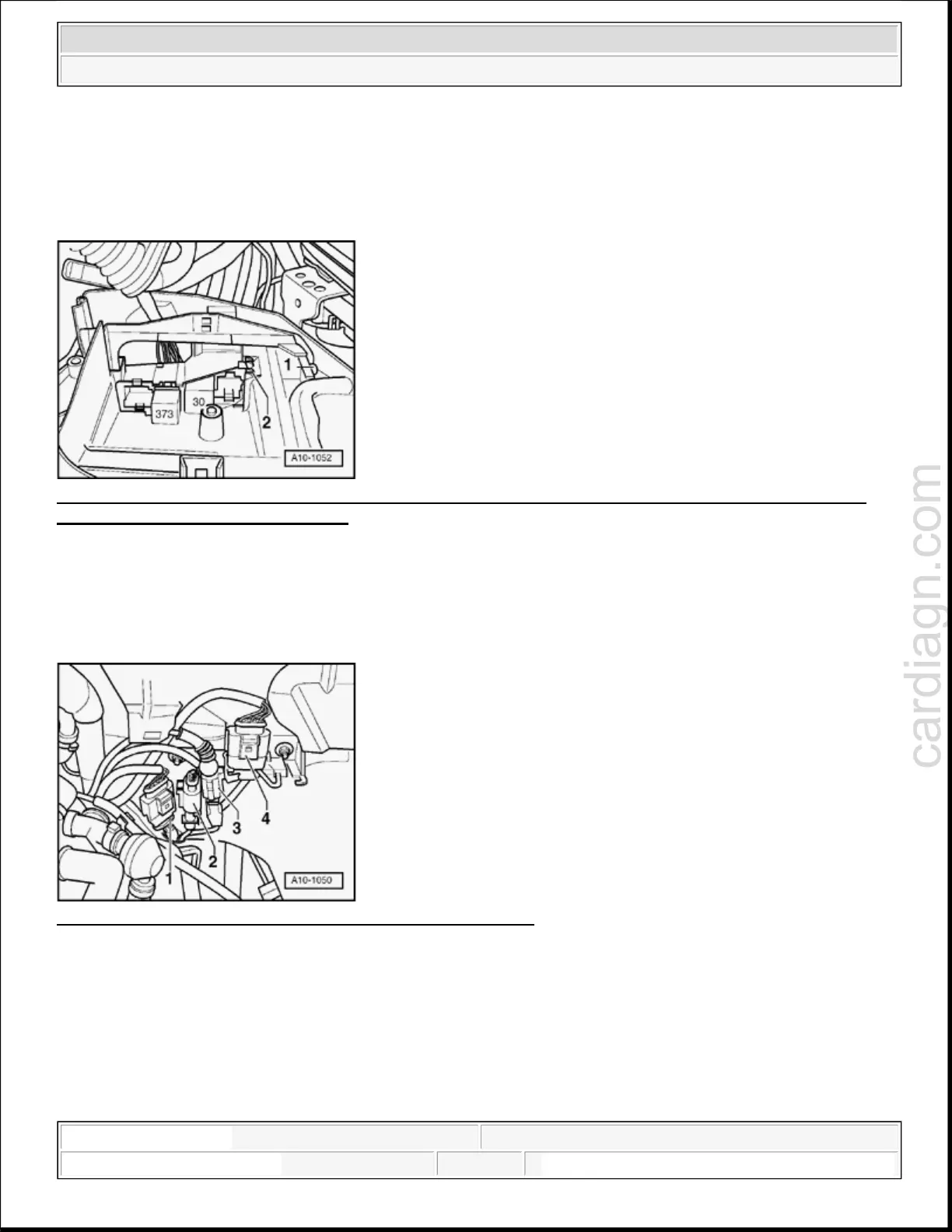

Fig. 34: Releasing Catches, Lifting Off Control Module Support & Pulling Auxiliary Relay Carrier In
Electronics Box Upward To Remove
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Release catch - 1 - and lift off control module support.
Release catch - 2 - and pull auxiliary relay carrier in electronics box upward to remove.
Disengage wiring harness from electronics box housing and plenum chamber, and place on engine.
Fig. 35: Disconnecting 4
-Pin Connectors Of Oxygen Sensors
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Remove connectors 1...4 from mount.
Disconnect connectors.
Open cable ties and place wires to electrical engine components to one side.
Pull out retainers for both coolant hoses to heat exchanger at rear of engine.
Disconnect coolant hoses between engine and heat exchanger.
2005 Audi A4 Quattro
ENGINE 1.8 Liter 4-Cyl. 5V Turbo Engine Mechanical, Engine Code(s): AMB
1:00:56 AM Page 19
