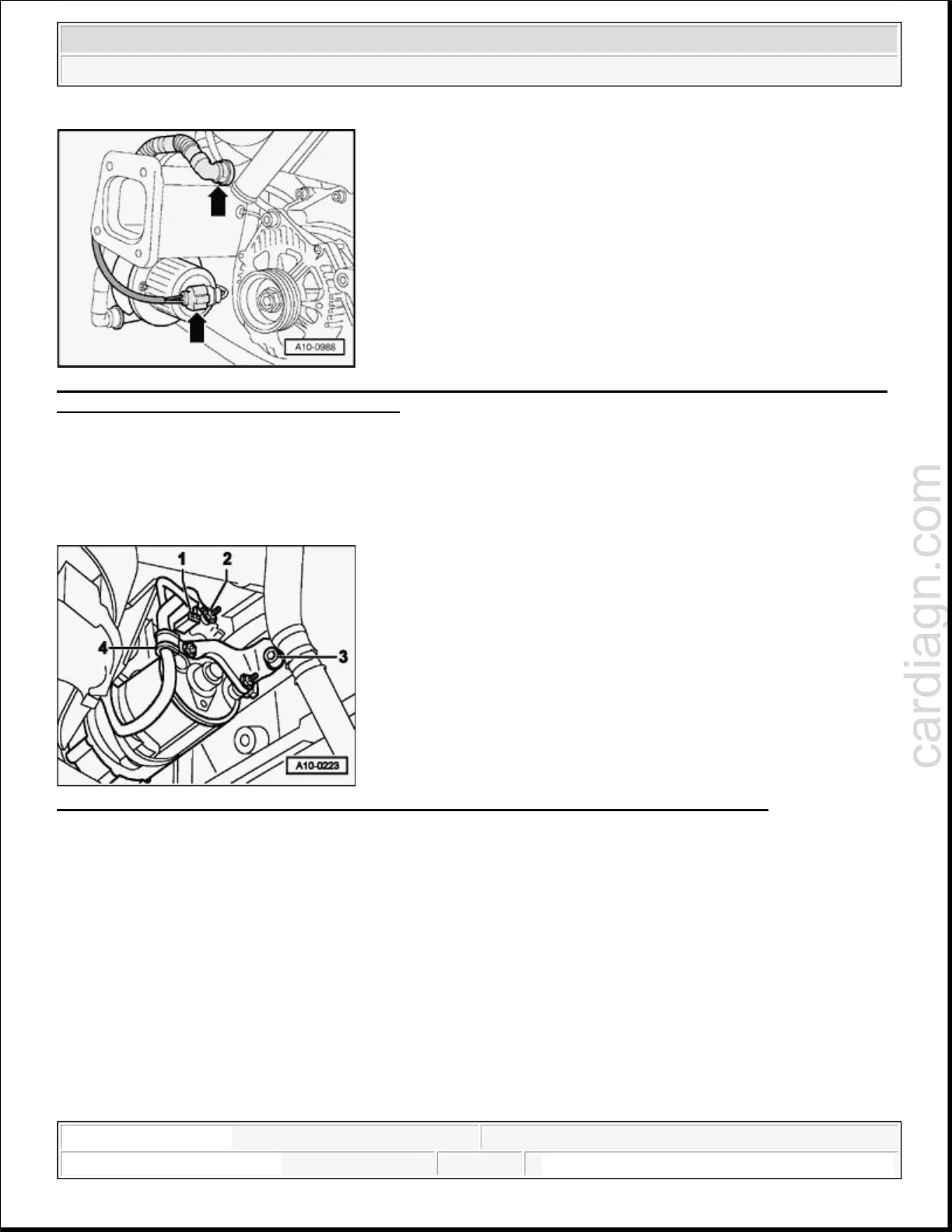

Fig. 36: Disconnecting Connector From Secondary Air Injection (AIR) Pump Motor V101 & Hose From
Pipe To Secondary Air Combination Valve
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Disconnect connector - arrow - from secondary Air Injection (AIR) pump motor V101 and move wire
clear.
Disconnect hose - arrow - from pipe to secondary air combination valve.
Fig. 37: Removing Wires From Starter & Insulator From Positive Connection On Starter
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Remove wires - 1 - and - 2 - from starter, remove insulator from positive connection on starter.
Remove clamp from starter holder - 4 -.
Unbolt mount from cylinder block - 3 - and starter.
Unbolt starter from transmission and remove.
Unbolt Ground (GND) wire from right engine support.
