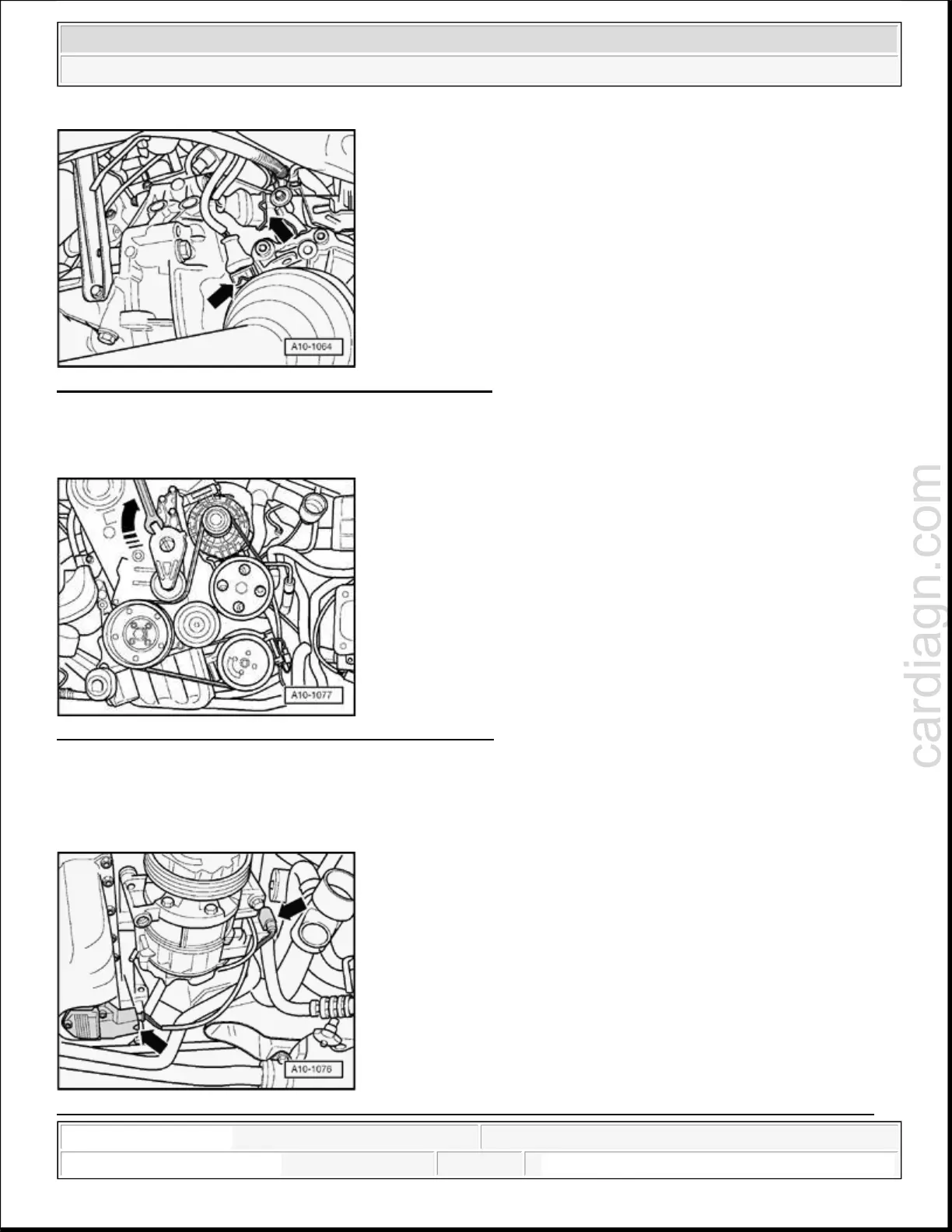

Fig. 42: Disconnecting Connectors From Transmission
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Disconnect both connectors - arrows - from transmission.
Fig. 43: Swiveling Tensioner In To Loosen Ribbed Belt
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Swivel tensioner in direction of - arrow - to loosen ribbed belt.
Remove ribbed belt from generator pulley.
Fig. 44: Disconnecting Compressor Clutch Connector From Air Conditioning Compressor & Oil Level
2005 Audi A4 Quattro
ENGINE 1.8 Liter 4-Cyl. 5V Turbo Engine Mechanical, Engine Code(s): AMB
1:00:56 AM Page 23
