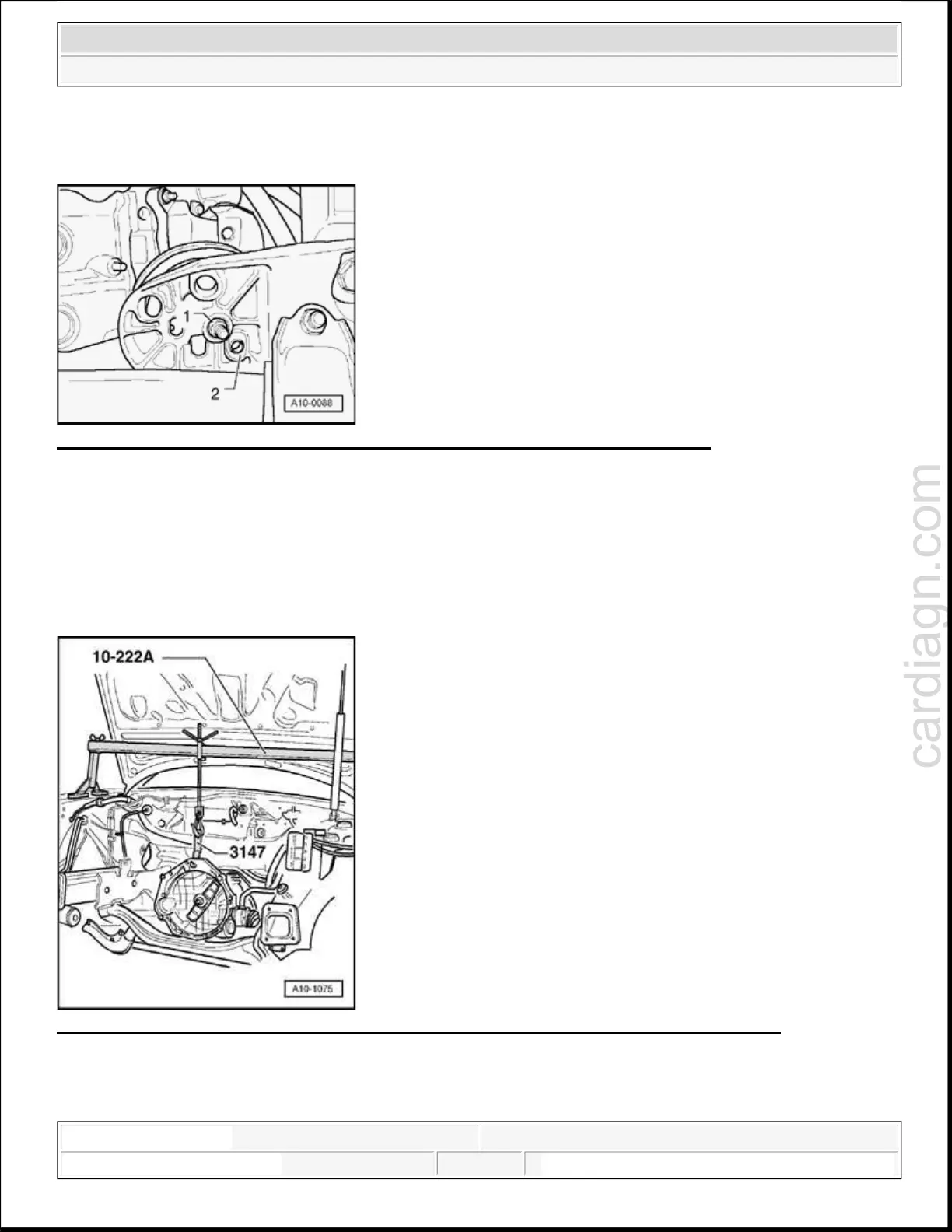

Fig. 47: Threaded Connections And Positioning Sleeves On Lower Engine Mounts
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Mark positions of bolted connections - 1 - and locating sleeves - 2 - on lower right and left engine
mounts.
Remove lower nuts - 1 - on left and right engine mounts.
Fig. 48: Placing Support Bar 10-222A Behind Gas-Filled Strut On Suspension Strut Domes
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Place support bar 10-222A behind gas-filled strut on suspension strut domes. Spindle at front.
En
a
e transmission support 3147 in bolt hole of transmission bell housin
.
NOTE:
Differing mounting holes are provided for different engine versions.
NOTE:
Illustration shows vehicle with engine removed.
