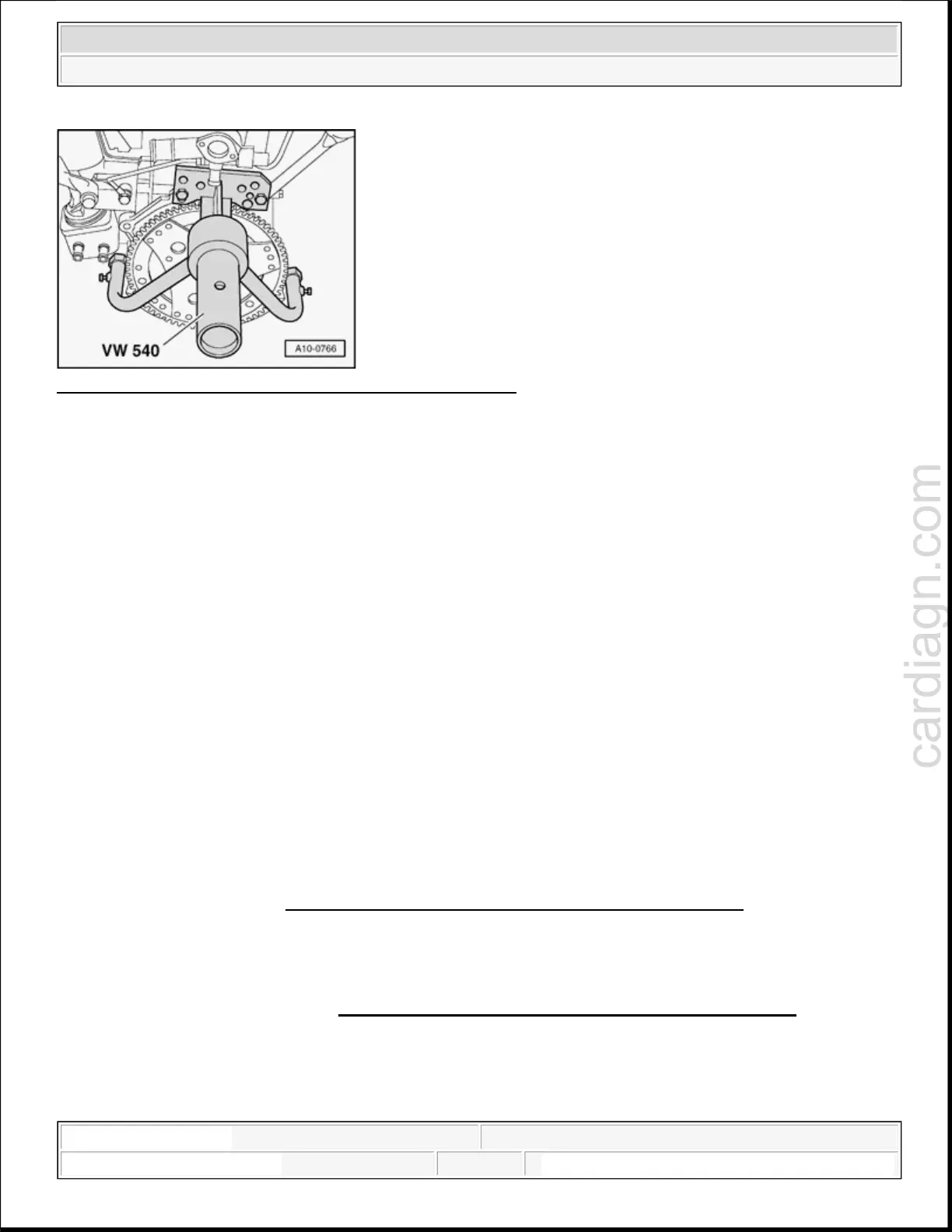

Fig. 52: Identifying Engine Transmission Bracket VW540
Courtesy of VOLKSWAGEN UNITED STATES, INC.
When working on the engine, secure it to the engine stand using engine bracket VW540.
Engine, installing
Install in reverse order, paying attention to the following:
Check whether dowel sleeves for centering engine/transmission in cylinder block have been installed and
install if necessary.
Push intermediate plate onto dowel sleeves.
Vehicles with manual transmission
Check clutch release bearing for wear and replace if necessary.
Lightly grease splines on transmission input shaft with G 000 100. Do not grease guide sleeve for release
bearing.
If necessary check that clutch plate is properly centered.
A needle bearing must be installed in crankshaft on vehicles with manual transmission. Install needle
bearing if necessary --> Pilot needle bearing in crankshaft, extracting and driving
.
Vehicles with automatic transmission
On vehicles with automatic transmission, no needle bearing must be installed in crankshaft. Remove
needle bearing if necessary --> Pilot needle bearing in crankshaft, extracting and driving
.
To secure torque converter on drive plate, only use correct bolts
Tighten torque converter bolts with Matra V175 15 mm A/F socket attachment.
Checking position of torque converter
NOTE:
When performing repairs, replace seals, gaskets, self-locking nuts and
bolts which have a specified tightening angle.
2005 Audi A4 Quattro
ENGINE 1.8 Liter 4-Cyl. 5V Turbo Engine Mechanical, Engine Code(s): AMB
1:00:56 AM Page 28
