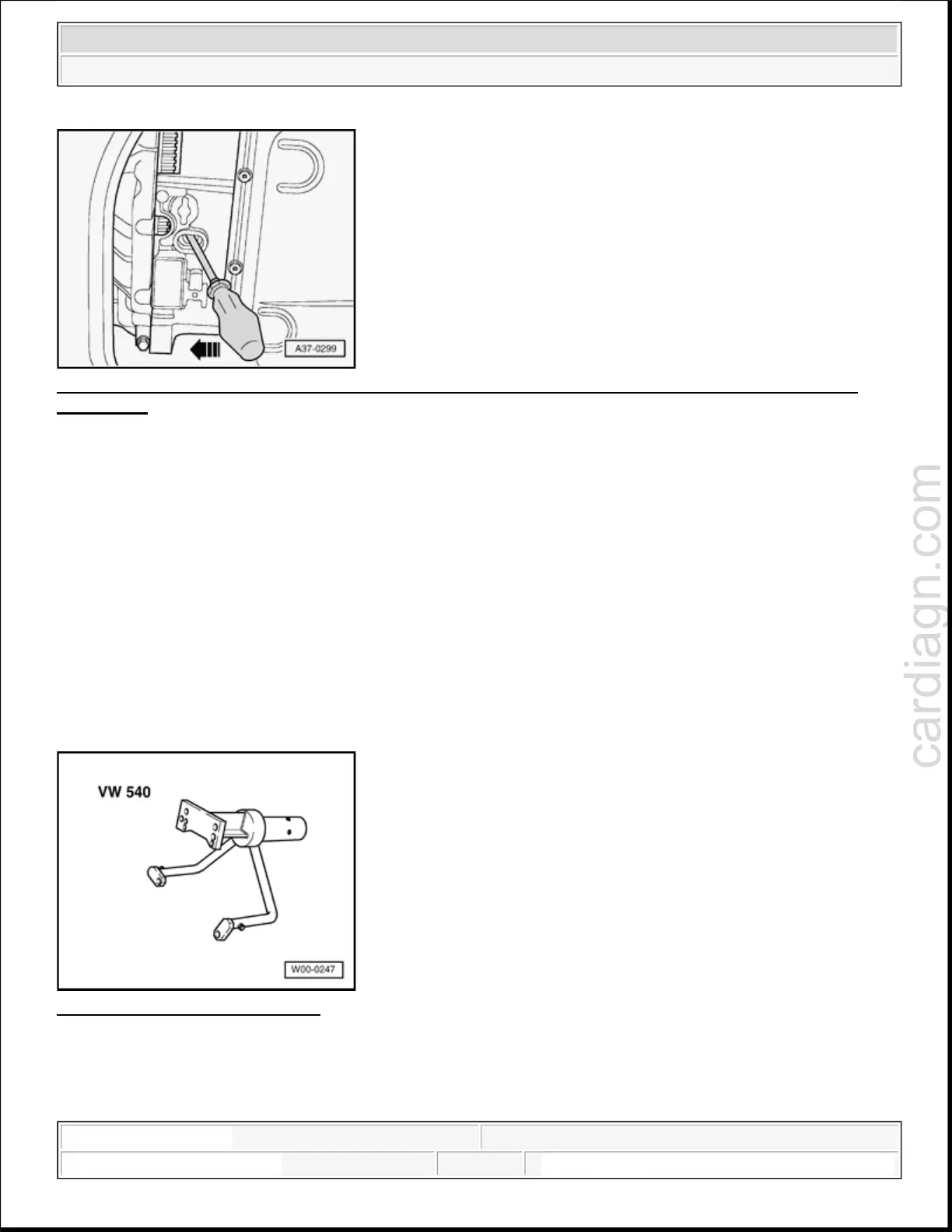

Fig. 50: Separating Transmission From Engine And At Same Time Remove Torque Converter From
Drive Plate
Courtesy of VOLKSWAGEN UNITED STATES, INC.
 Separate transmission from engine and at same time remove torque converter from drive plate.
All models
 Pull engine away from transmission and lift engine toward front of vehicle out of engine compartment.
Vehicles with automatic transmission
 If necessary, secure torque converter in transmission with wire to prevent it from falling out.
Engine, securing to repair stand
Special tools, testers and auxiliary items required
Fig. 51: Holding Fixture VW 540
Courtesy of VOLKSWAGEN UNITED STATES, INC.
 En
g
ine and transmission bracket VW540
2005 Audi A4 Quattro
ENGINE 1.8 Liter 4-Cyl. 5V Turbo Engine Mechanical, Engine Code(s): AMB
