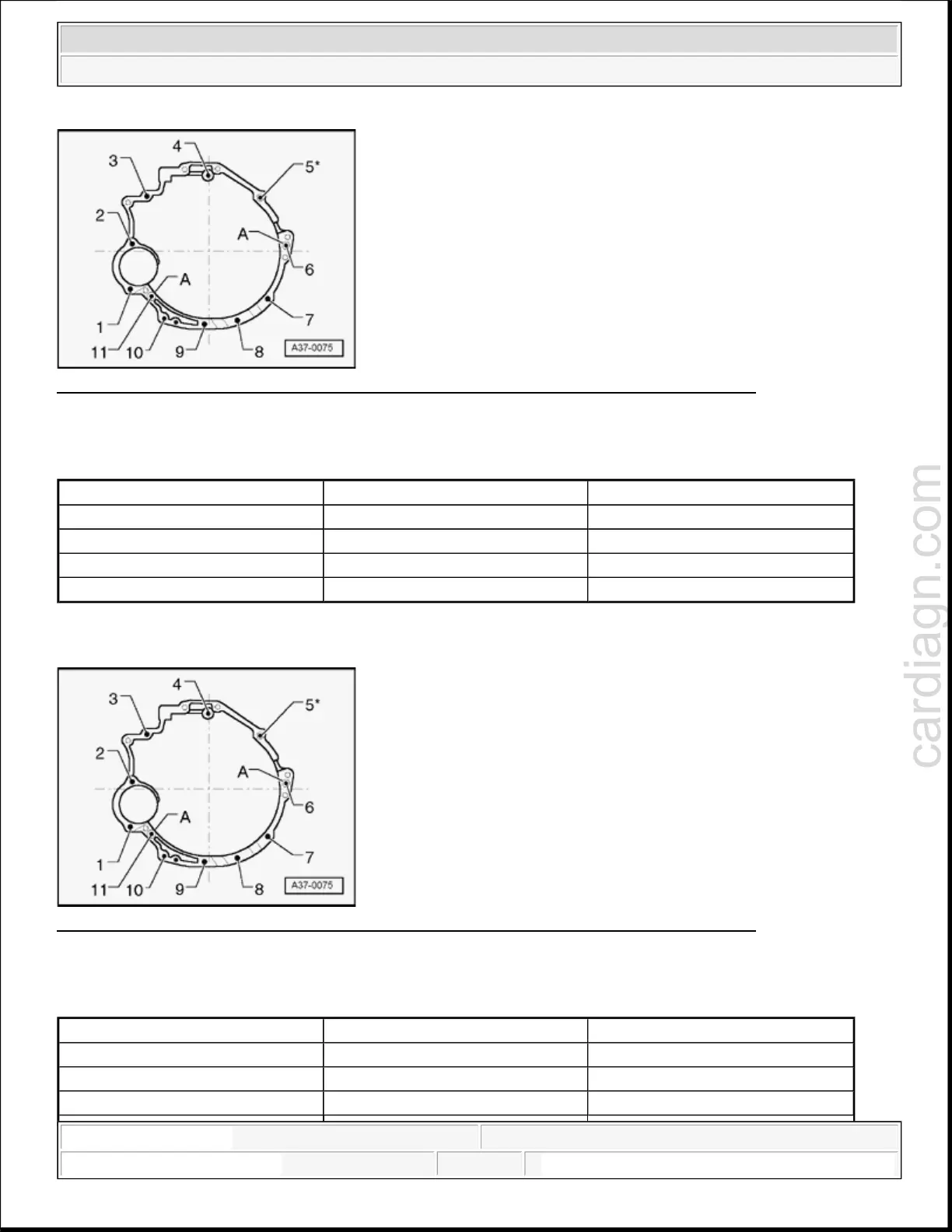

Fig. 56: Identifying Engine/Transmission Mountings (Automatic/Manual Transmission)
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Engine/transmission mountings (manual transmission)
A: Dowel sleeves for centering
Fig. 57: Identifying Engine/Transmission Mountings (Automatic/Manual Transmission)
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Engine/transmission mountings (automatic transmission)
Item Bolt Nm
1, 3, 4 M12 x 67 65
2, 6 M12 x 90 65
5, 11 M12 x 110 65
7... 10 M10 x 45 45
Item Bolt Nm
1, 8, 9, 10 M10 x 45 45
2, 3, 4, 11 M12 x 67 65
5 M12 x 110 65
2005 Audi A4 Quattro
ENGINE 1.8 Liter 4-Cyl. 5V Turbo Engine Mechanical, Engine Code(s): AMB
1:00:56 AM Page 32
