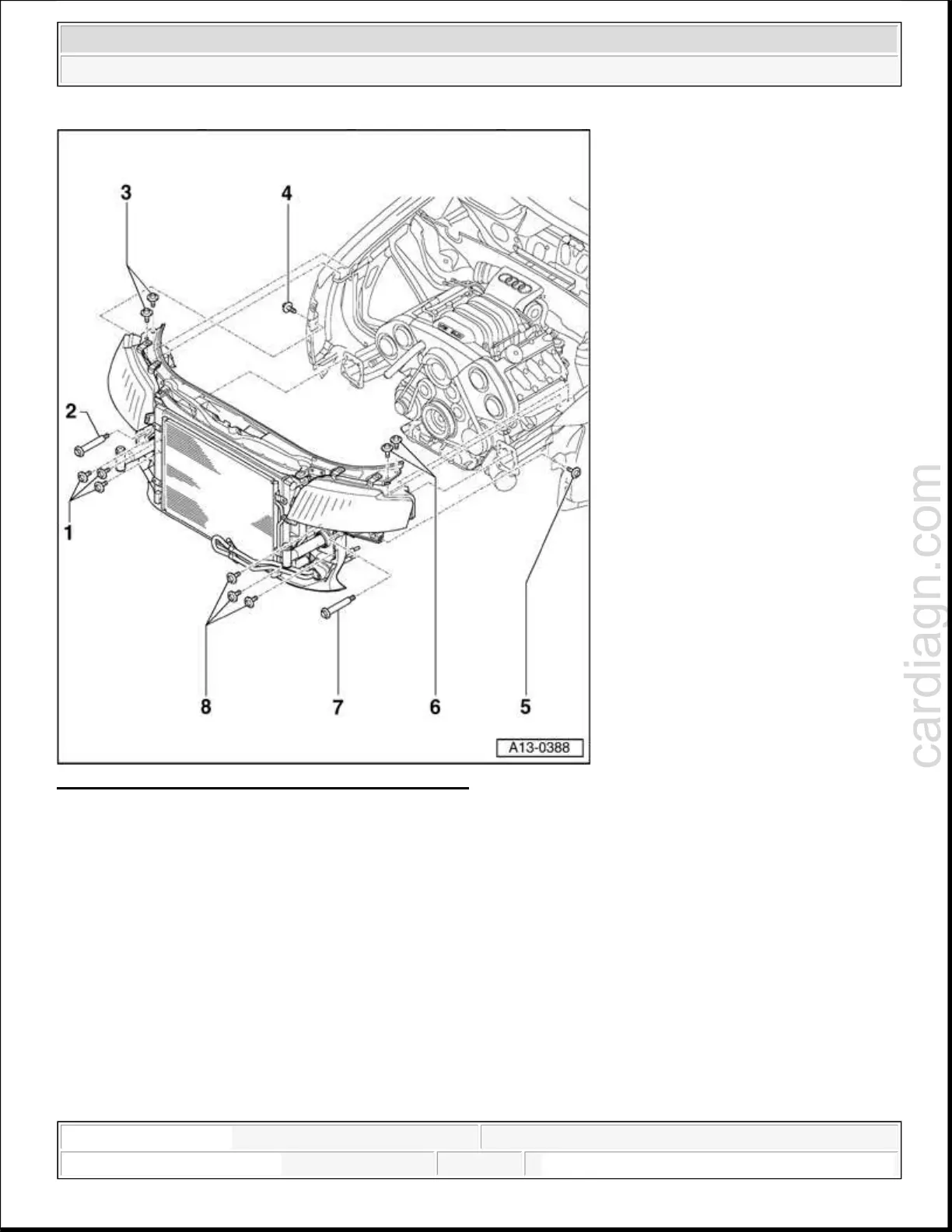

Fig. 59: Lock Carrier In Service Position, Overview
Courtesy of VOLKSWAGEN UNITED STATES, INC.
1 - 45 Nm
2 - 45 Nm
3 - 10 Nm
4 - 10 Nm
5 - Hole
 For special tool 3369
6 - Hole in lock carrie
r
2005 Audi A4 Quattro
ENGINE 1.8 Liter 4-Cyl. 5V Turbo Engine Mechanical, Engine Code(s): AMB
