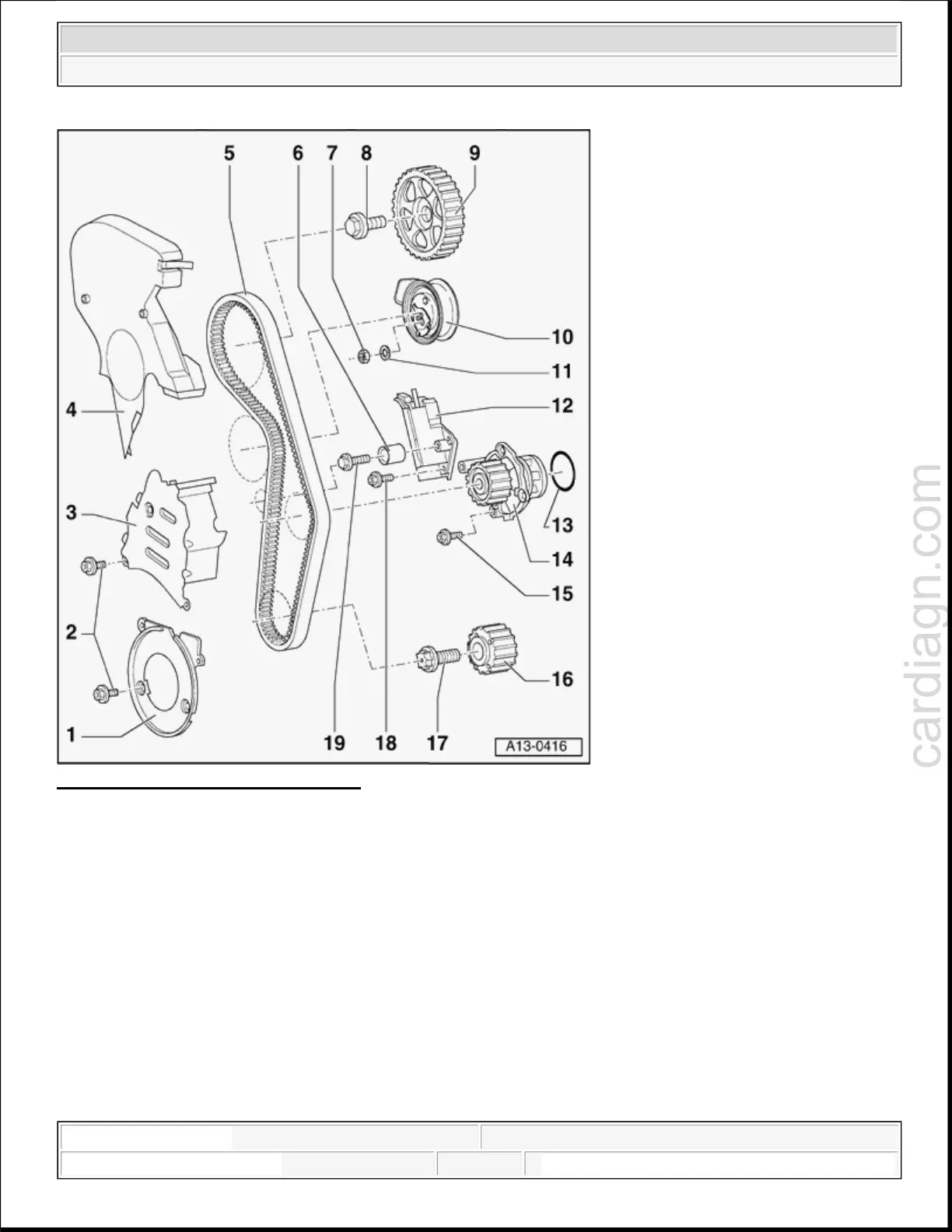

Fig. 79: Toothed Belt Drive, Overview
Courtesy of VOLKSWAGEN UNITED STATES, INC.
1 - Toothed belt guard (lower)
To remove, unbolt vibration damper
2 - 10 Nm
Apply D 000 600 when installing
3 - Toothed belt guard (center)
To remove, unbolt ribbed belt tensioner
4 - Toothed belt guard (top)
2005 Audi A4 Quattro
ENGINE 1.8 Liter 4-Cyl. 5V Turbo Engine Mechanical, Engine Code(s): AMB
