17 - 90 Nm + 1/4 turn (90 ° ) furthe
r
 Replace
 Do not use oil
 Use counterhold tool 3415 to loosen and tighten
18 - 15 Nm
19 - 25 Nm

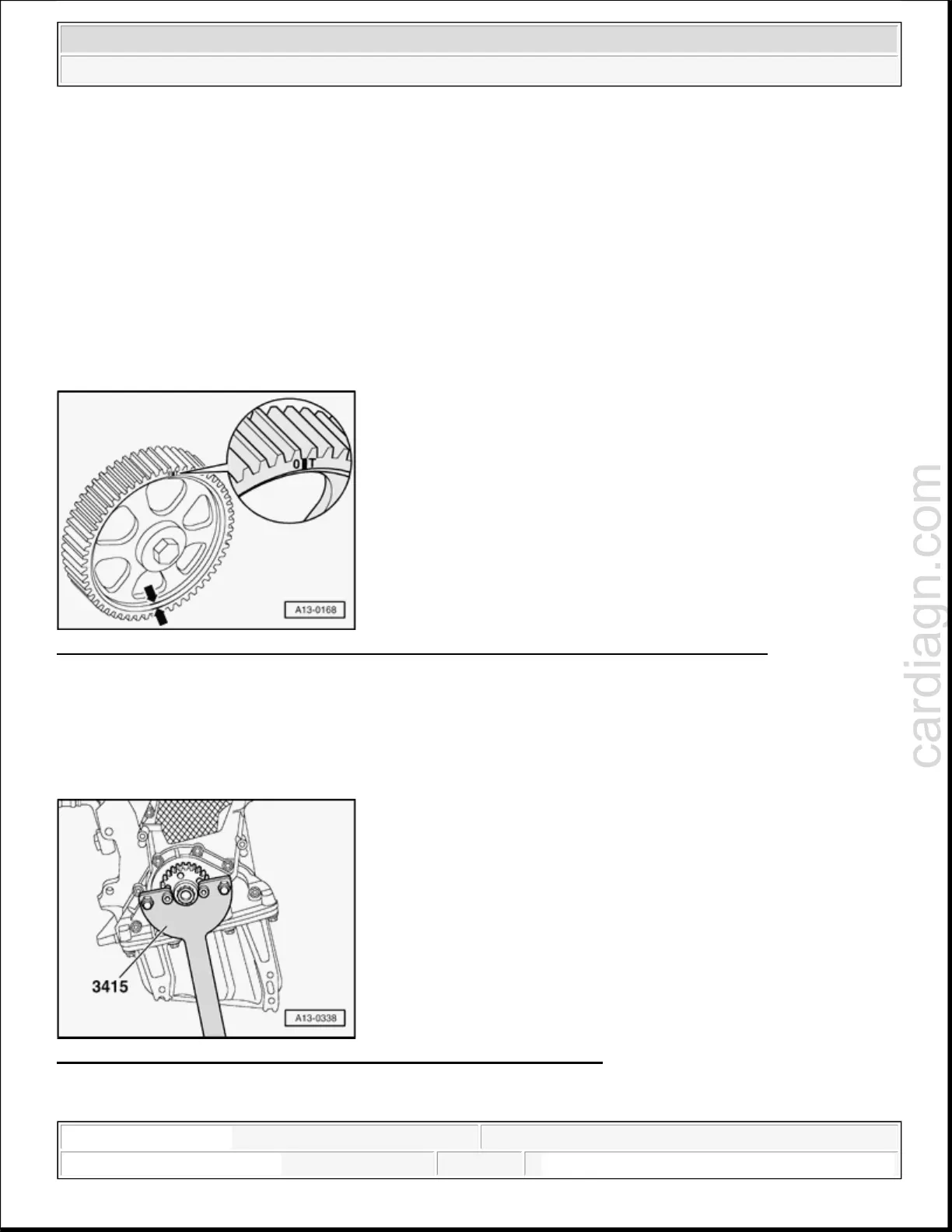

Installed position of camshaft sprocket
Fig. 80: Identifying Camshaft Gear Thin Rib Toward Outside And TDC Marking Visible
Courtesy of VOLKSWAGEN UNITED STATES, INC.
 Narrow chamfer of camshaft sprocket must face outward - arrows - and marking for TDC No. 1 cylinder
must be visible from front.
Removing and installing crankshaft toothed belt sprocket
Fig. 81: Removing And Installing Crankshaft Toothed Belt Sprocket
Courtesy of VOLKSWAGEN UNITED STATES, INC.
2005 Audi A4 Quattro
ENGINE 1.8 Liter 4-Cyl. 5V Turbo Engine Mechanical, Engine Code(s): AMB
1:00:57 AM Page 52
