Place drive belt on crankshaft sprocket (observe direction of rotation).
Install lower part of drive belt cover.

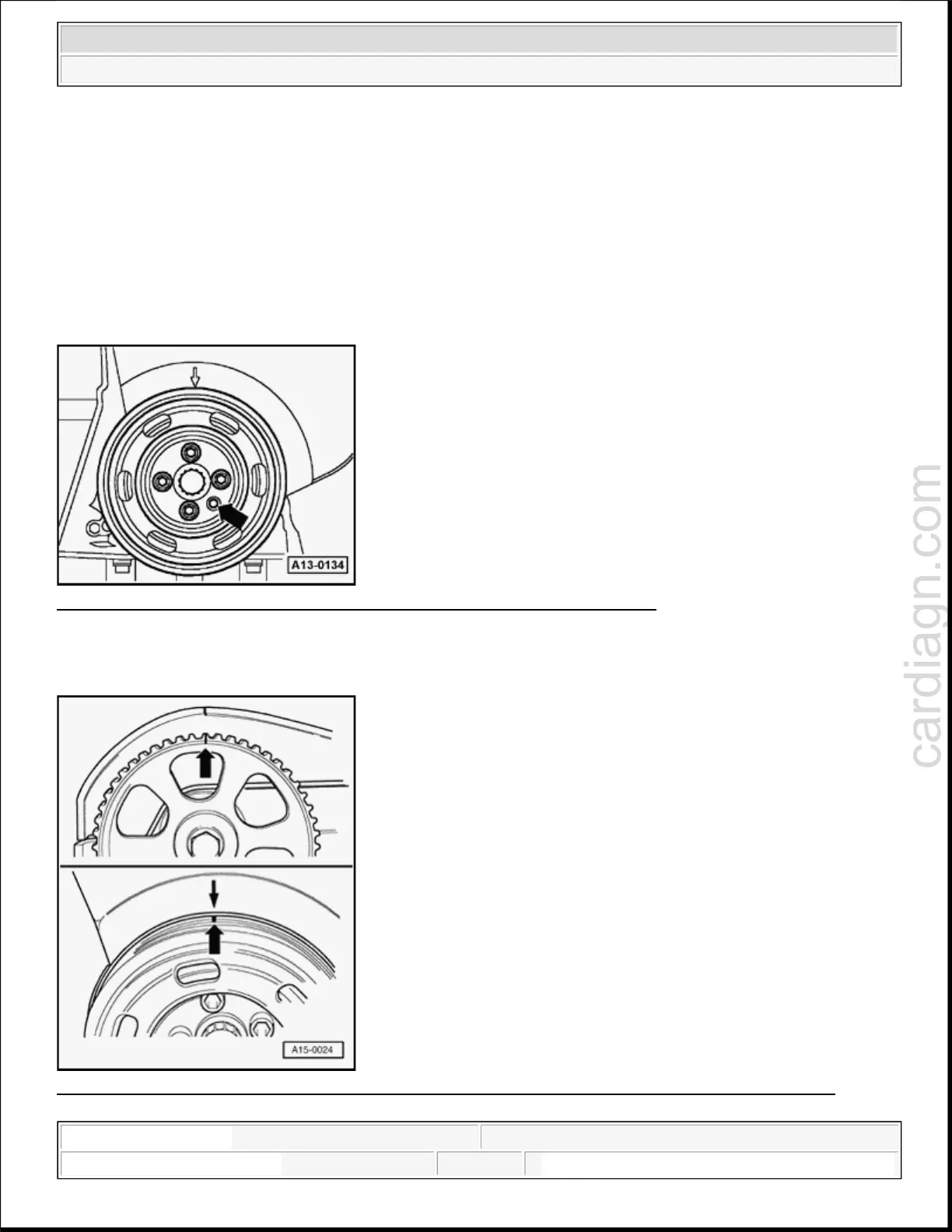

Fig. 91: Tightening Vibration Damper/Pulley, Take Note Of Locating Point
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Tighten vibration damper/pulley, take note of locating point - arrow -.
Fig. 92: Identifying Marking On Camshaft Gear Aligned With Marking On Cylinder Head Cover
Courtesy of VOLKSWAGEN UNITED STATES, INC.
cylinder. Risk of damaging valves/piston crown.
NOTE:
The vibration damper/pulley can be installed in only one position. The hole
- arrow - in the vibration damper must be located over the raised part on
the crankshaft drive belt sprocket.
