Align camshaft sprocket-to-cylinder head cover positioning marks and vibration damper-to-drive belt
cover positioning marks.
Install drive belt in this order: water pump, tensioning pulley, camshaft sprocket.
Tensioning drive belt
If the drive belt tensioner is completely extended:

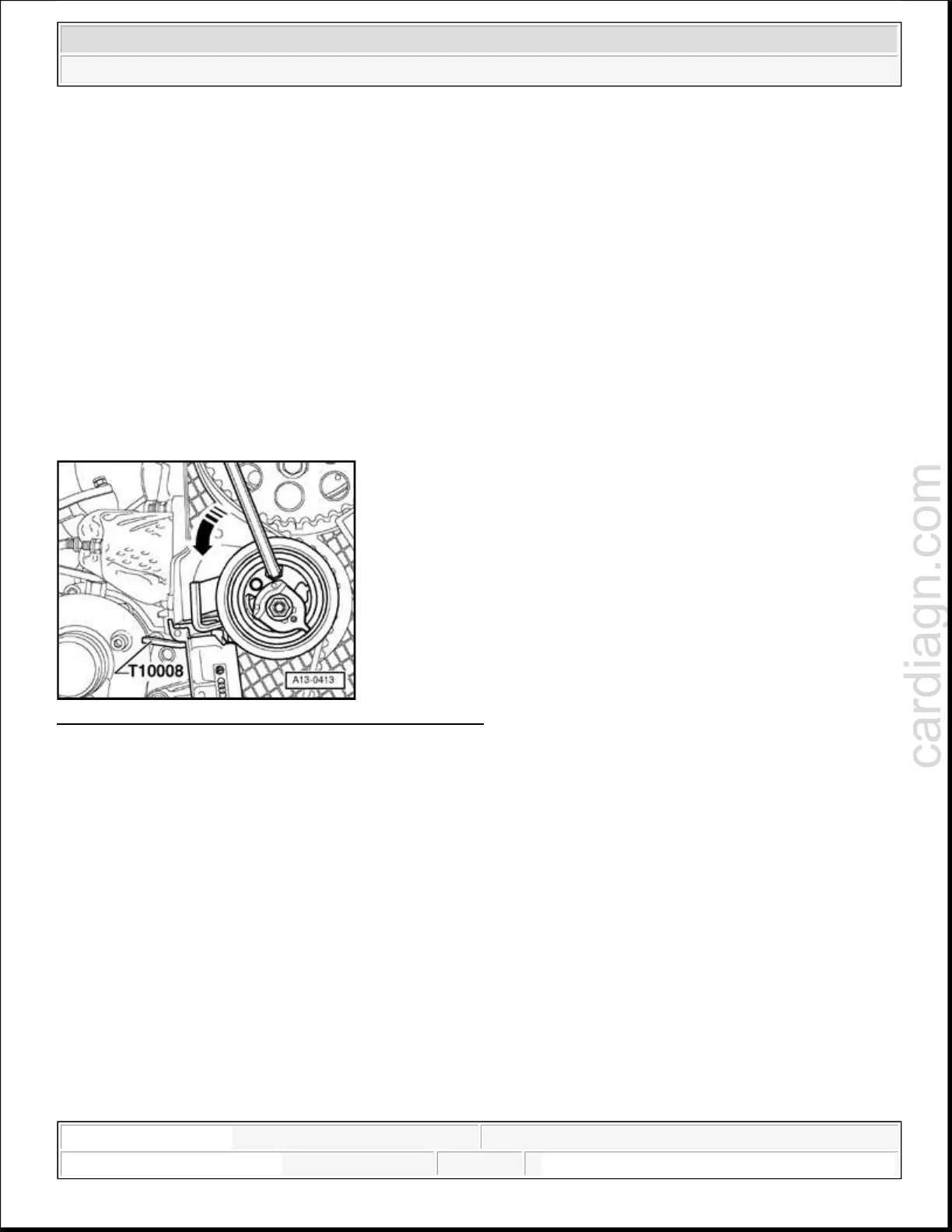

Fig. 93: Inserting An Allen Wrench Into Socket-Head
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Push pulley on counter-clockwise in direction of - arrow - with a socket head wrench using even but not
excessive application of force until tensioner piston can be locked with locking plate T10008.
All
CAUTION: If the drive belt tensioner is at its travel limit, it must be pushed back in the
installed position together with the pulley. This procedure can take up to 5
minutes.
When compressing the tensioner, excessive force can damage the
tensioning pulley.
NOTE:
The stop tab of the eccentric bolt must not be bent.
2005 Audi A4 Quattro
ENGINE 1.8 Liter 4-Cyl. 5V Turbo Engine Mechanical, Engine Code(s): AMB
1:00:58 AM Page 59
