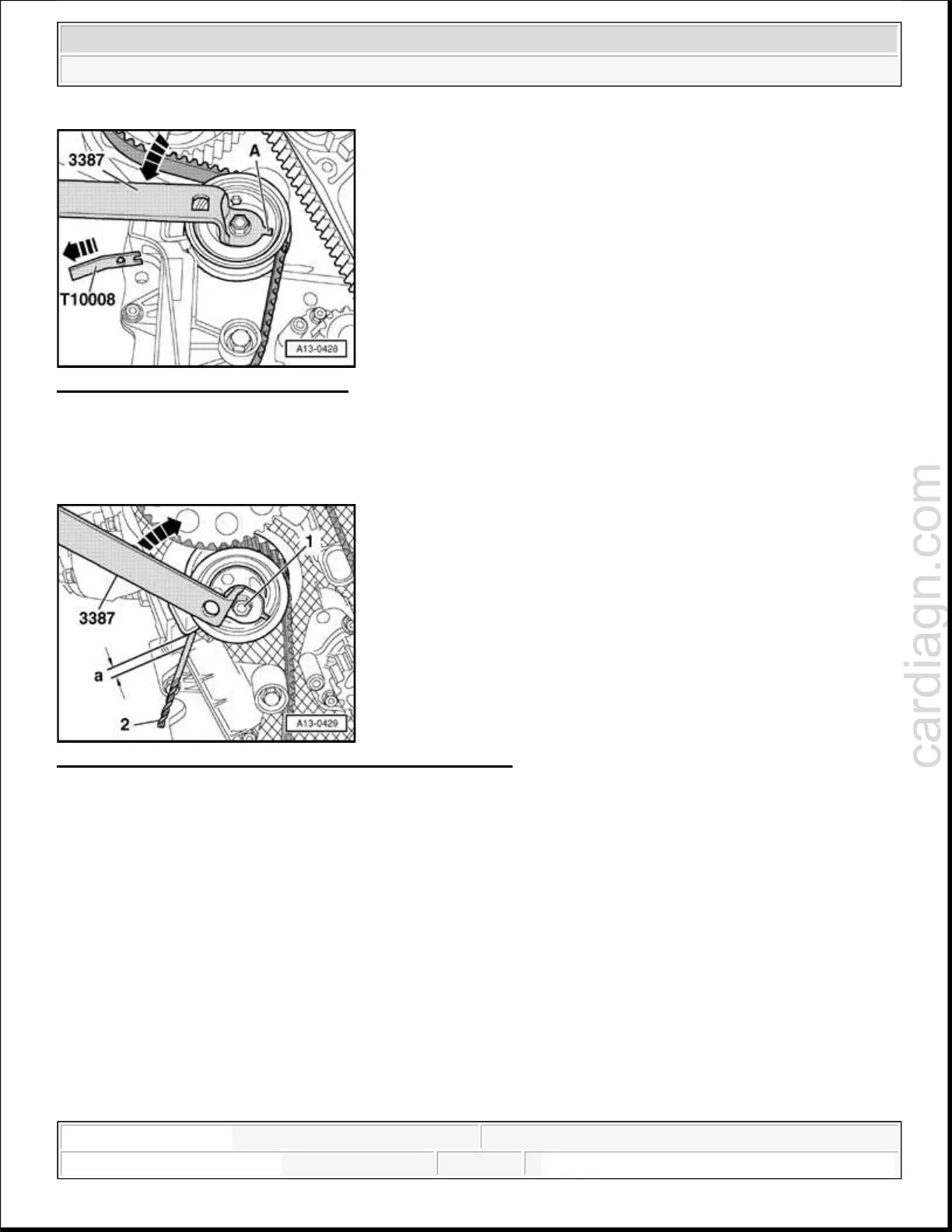

Fig. 94: Adjusting Tensioning Roller
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Turn eccentric bolt counter-clockwise in direction of - arrow - using special tool 3387.
Hold eccentric bolt in this position and withdraw locking plate T10008.
Fig. 95: Checking Tensioning Roller Specified Dimension
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Turn eccentric bolt clockwise to right in direction of - arrow - until a gauge - 2 - with dimension - a -
(e.g. drill bit) can be passed between tensioning lever and tensioner housing.
Dimension a = 8 mm
Hold eccentric bolt in this position and tighten pulley nut - 1 -.
Tightening torque: 27 Nm
CAUTION: The engine must only be turned in the direction of engine rotation
(clockwise) at the crankshaft.
NOTE:
To turn the engine over apply tool at the center bolt on the crankshaft.
2005 Audi A4 Quattro
ENGINE 1.8 Liter 4-Cyl. 5V Turbo Engine Mechanical, Engine Code(s): AMB
