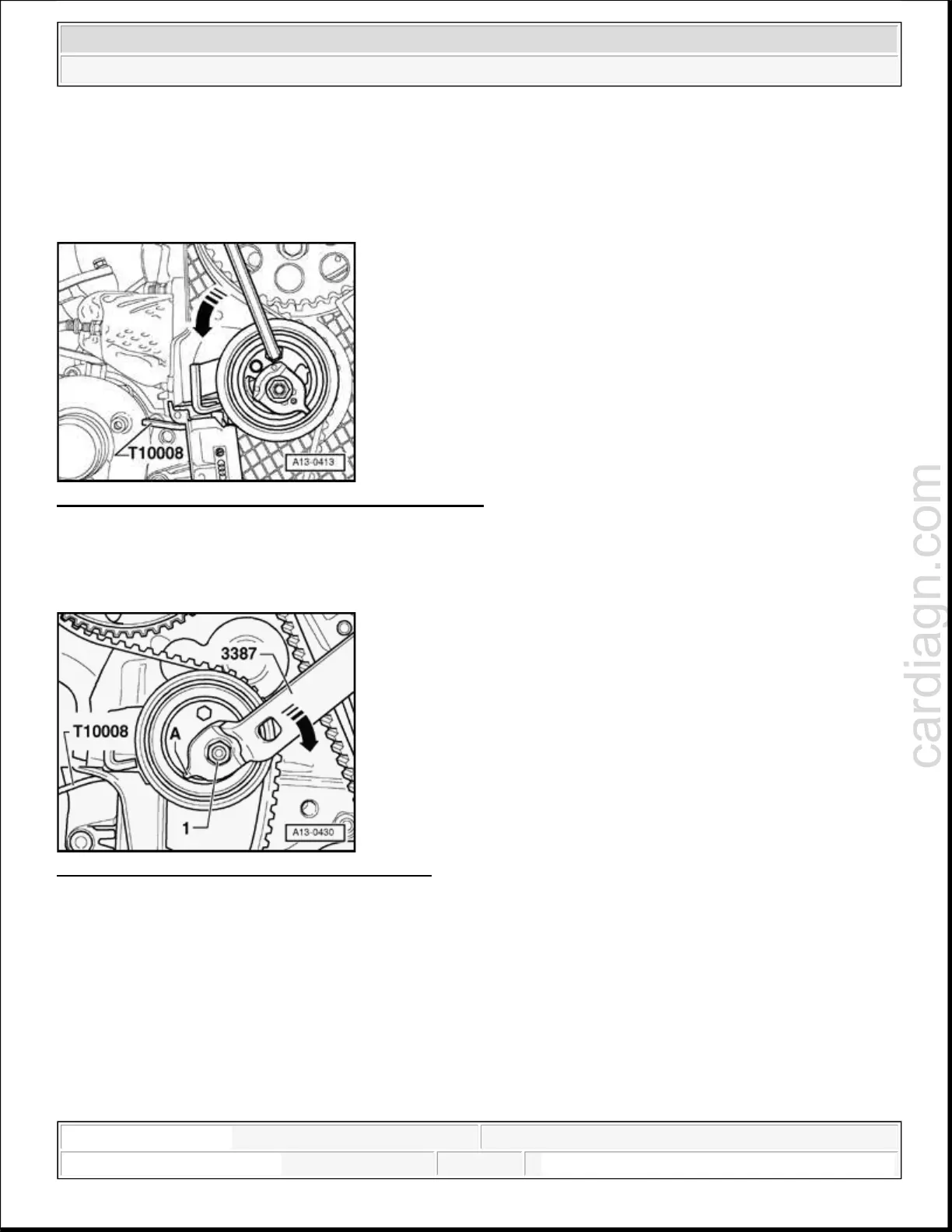

Fig. 98: Inserting An Allen Wrench Into Socket-Head
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Push pulley on counter-clockwise in direction of - arrow - with a socket head wrench using even but not
excessive application of force until tensioner piston can be locked with locking plate T10008.
Fig. 99: Releasing Tension Of Tensioner Roller
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Loosen nut - 1 - on pulley.
Continue under "Tensioning drive belt".
If dimension -a- is obtained
Install center and upper drive belt cover.
and with evenly applied force.
When compressing the tensioner, excessive force can damage the
tensioning pulley.
