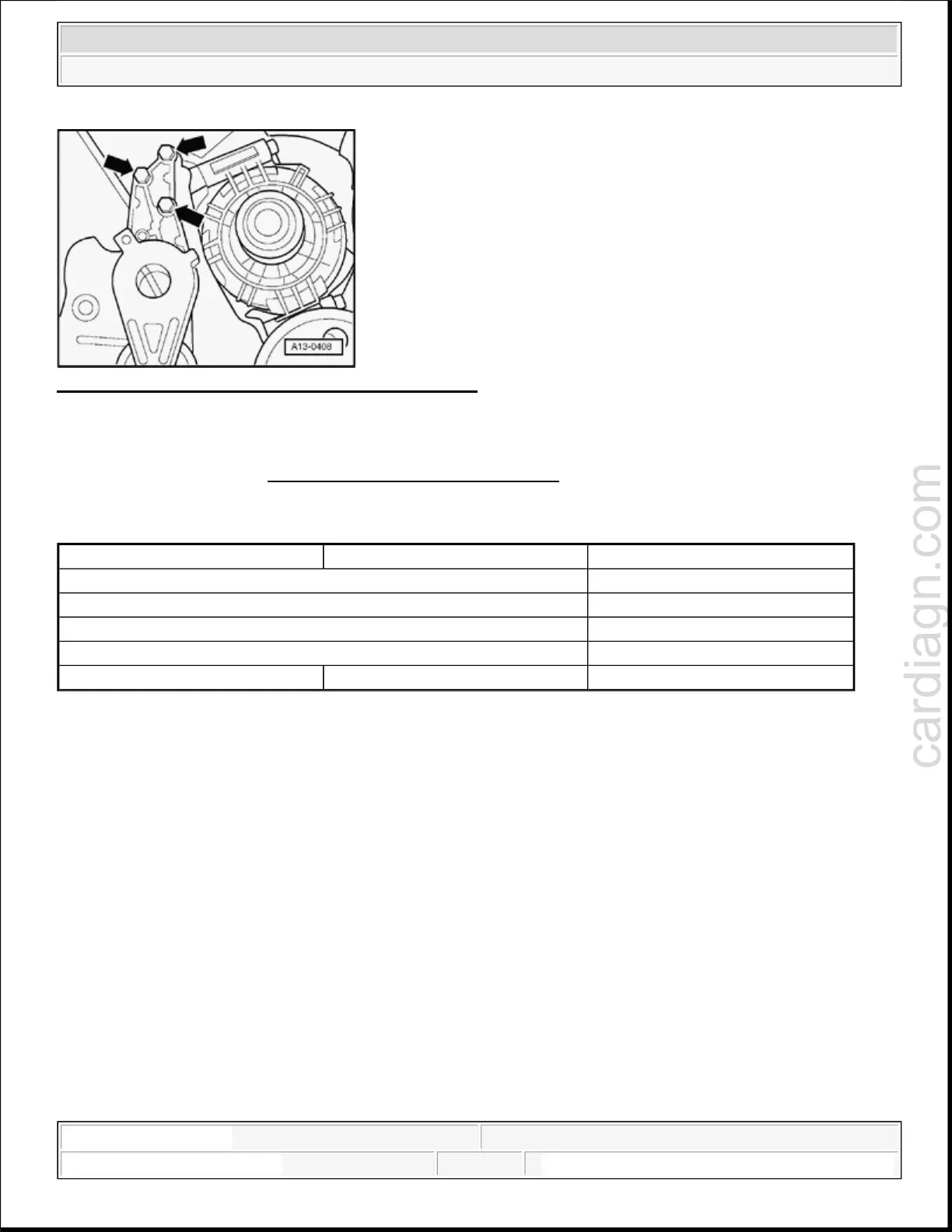

Fig. 100: Removing/Installing Ribbed Belt Tensioner
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Install ribbed belt tensioner.
Install ribbed belt --> Ribbed belt, removing and installing.
Tightening Torques
*Install using locking adhesive
*Replace bolts
* 90 ° equals one quarter turn
Toothed drive belt, removing from camshaft sprocket
Special tools, testers and auxiliary items required
Component Nm
Lower drive belt cover at cylinder block 10 * See note
Center drive belt cover at cylinder block 10 * See note
Ribbed belt tensioner at bracket 23
Vibration damper/pulley at crankshaft 10 + 90 ° * See note
Drive belt tensioning pulley 27
2005 Audi A4 Quattro
ENGINE 1.8 Liter 4-Cyl. 5V Turbo Engine Mechanical, Engine Code(s): AMB
1:00:58 AM Page 63
