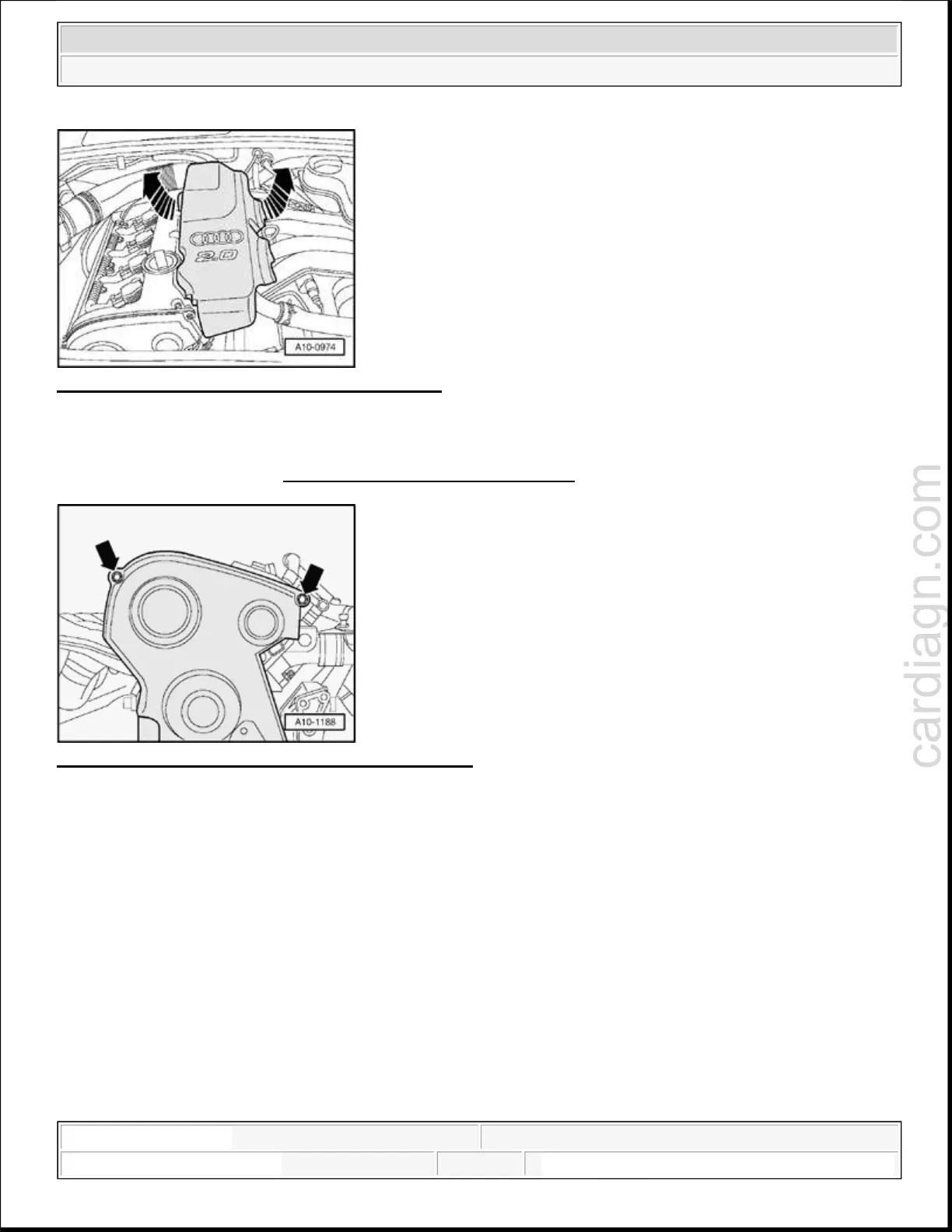

Fig. 103: Removing Engine Cover By Lifting Up
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Remove engine cover by lifting up - arrows -.
Remove ribbed belt --> Ribbed belt, removing and installing.
Fig. 104: Removing Upper Part Of Drive Belt Cover
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Remove upper part of drive belt cover.
NOTE:
Take special note of the installed position of the upper part of the drive
belt cover particularly where it meets the center part of the drive belt
cover.
CAUTION: The engine must only be turned in the direction of the engine rotation
(clockwise) at the crankshaft.
NOTE:
To turn the engine over use the center bolt on the crankshaft.
