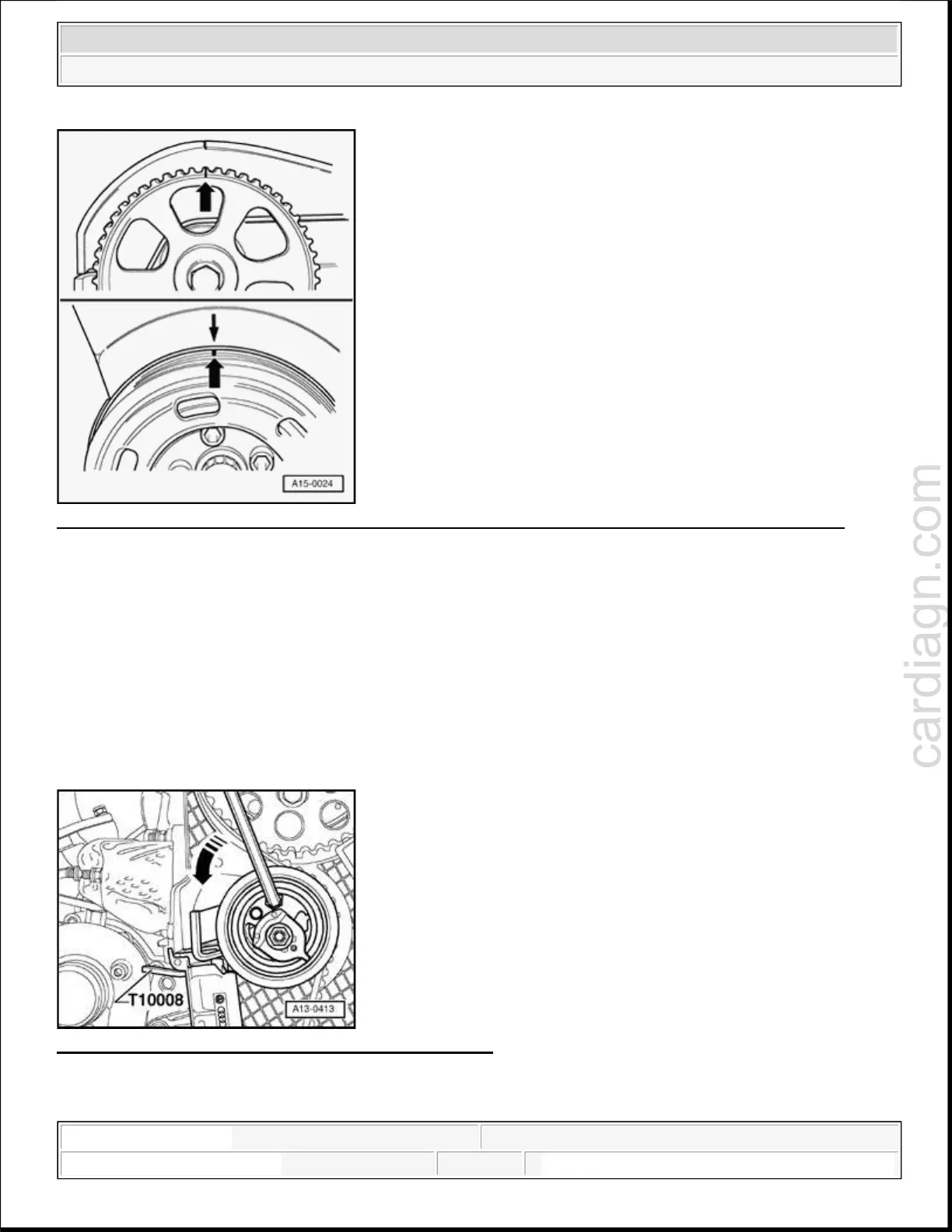

Fig. 105: Identifying Marking On Camshaft Gear Aligned With Marking On Cylinder Head Cover
Courtesy of VOLKSWAGEN UNITED STATES, INC.
 Bring engine to TDC on cylinder 1 and turn crankshaft in direction of engine rotation using center
camshaft drive sprocket bolt on camshaft. Mark on camshaft sprocket and mark on crankshaft must be at
TDC cylinder 1 - arrows -.
Fig. 106: Inserting An Allen Wrench Into Socket
-Head
Courtesy of VOLKSWAGEN UNITED STATES, INC.
 Push pulle
y
on counte
r
-clockwise in direction of - arrow - with a socket head wrench usin
g
even but not
CAUTION: The drive belt tensioner is oil-damped and can only be compressed slowly
and with evenly applied force.
When compressing the tensioner, excessive force can damage the
tensioning pulley.
2005 Audi A4 Quattro
ENGINE 1.8 Liter 4-Cyl. 5V Turbo Engine Mechanical, Engine Code(s): AMB
1:00:58 AM Page 66
