excessive application of force until tensioner can be locked with locking plate T10008.

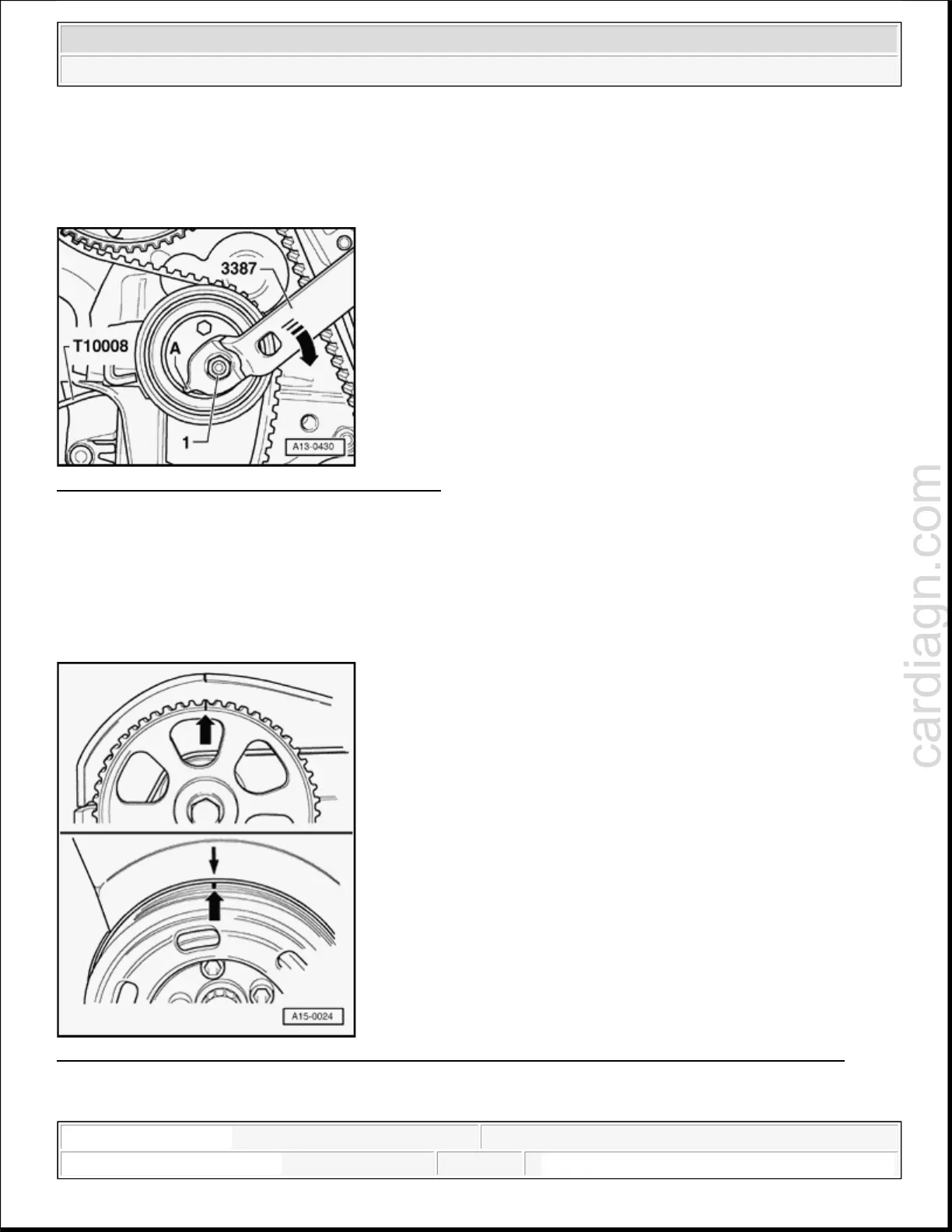

Fig. 107: Releasing Tension Of Tensioner Roller
Courtesy of VOLKSWAGEN UNITED STATES, INC.
To release tension from drive belt, loosen nut - 1 - on pulley and rotate eccentric bolt clockwise in
direction of - arrow - using special tool 3387.
Remove drive belt from camshaft.
Installing
Fig. 108: Identifying Marking On Camshaft Gear Aligned With Marking On Cylinder Head Cover
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Ali
n camshaft sprocket-to-c
linder head cover positionin
marks and vibration dampe
-to-drive belt
NOTE:
The stop tab of the eccentric bolt must not be bent.
2005 Audi A4 Quattro
ENGINE 1.8 Liter 4-Cyl. 5V Turbo Engine Mechanical, Engine Code(s): AMB
1:00:58 AM Page 67
