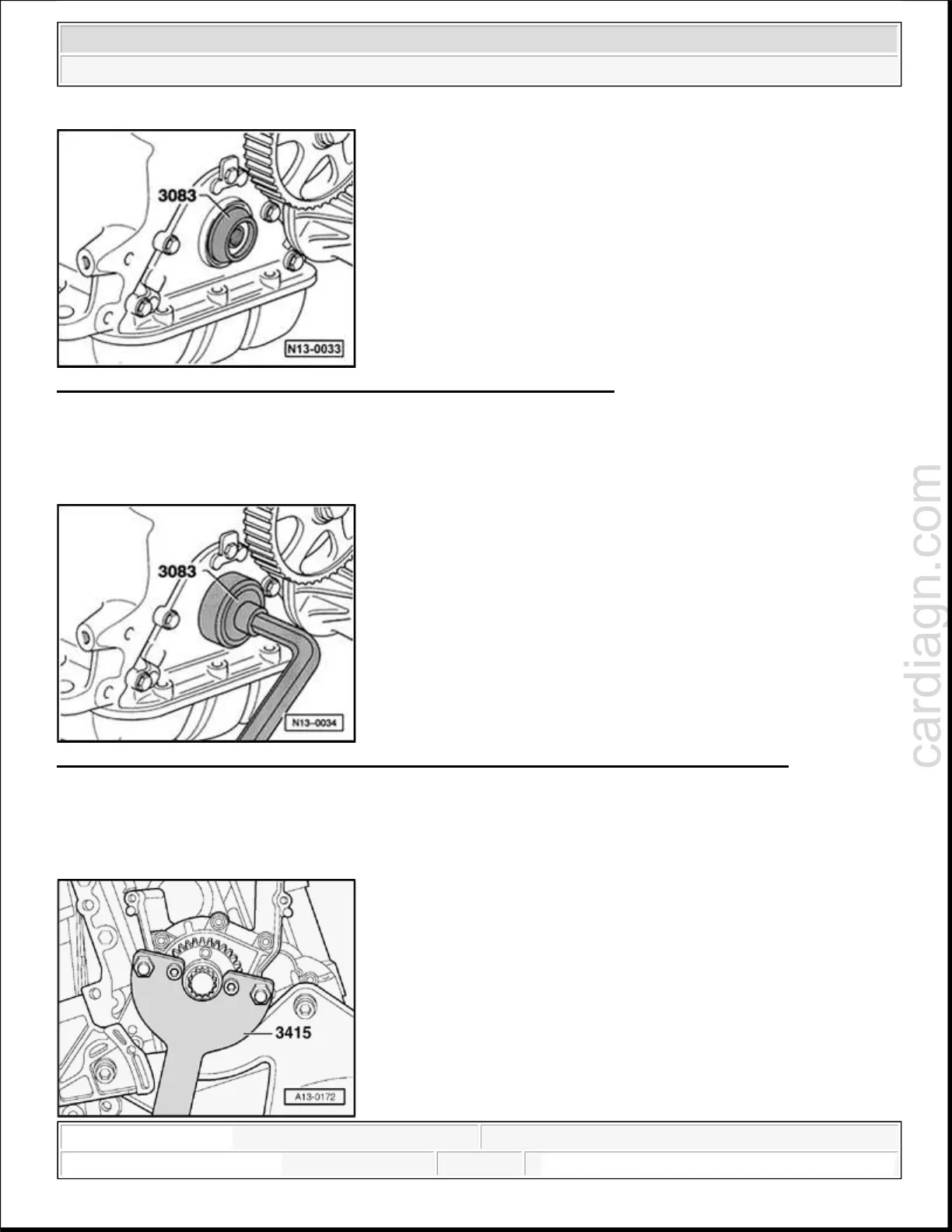

Fig. 115: Installing Guide Sleeve From 3083 Onto Crankshaft Journal
Courtesy of VOLKSWAGEN UNITED STATES, INC.
 Install guide sleeve from 3083 onto crankshaft journal.
 Slide oil seal over guide sleeve.
Fig. 116: Pushing In Oil Seal As Far As It Will Go Using Thrust Sleeve And Bolt From 3083
Courtesy of VOLKSWAGEN UNITED STATES, INC.
 Push in oil seal as far as it will go using thrust sleeve and bolt from 3083.
 Replace bolt for toothed belt sprocket.
2005 Audi A4 Quattro
ENGINE 1.8 Liter 4-Cyl. 5V Turbo Engine Mechanical, Engine Code(s): AMB
