Audi MIB Series User Manual

9
618_022
618_019
618_006
618_021
FM2 radio signal input
FM1/AM radio signal input
Private CAN High
Information/entertainment
CAN High
Private CAN Low
Information/entertainment
CAN Low

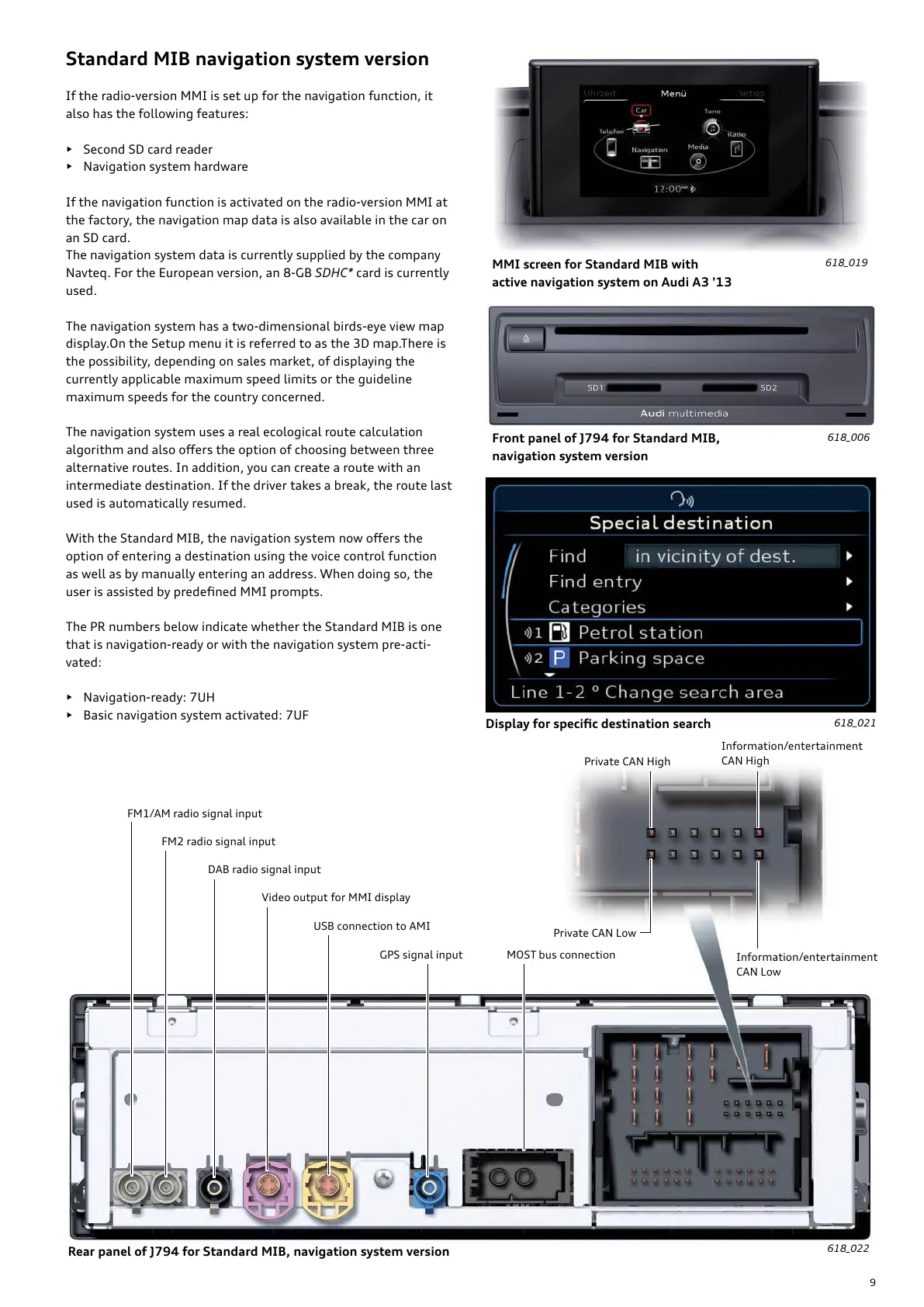

Rear panel of J794 for Standard MIB, navigation system version
Front panel of J794 for Standard MIB,
navigation system version
Display for specific destination search
DAB radio signal input
Video output for MMI display
USB connection to AMI
GPS signal input MOST bus connection
Standard MIB navigation system version
If the radio-version MMI is set up for the navigation function, it
also has the following features:
• Second SD card reader
• Navigation system hardware
If the navigation function is activated on the radio-version MMI at
the factory, the navigation map data is also available in the car on
an SD card.
The navigation system data is currently supplied by the company
Navteq. For the European version, an 8-GB SDHC* card is currently
used.
The navigation system has a two-dimensional birds-eye view map
display.On the Setup menu it is referred to as the 3D map.There is
the possibility, depending on sales market, of displaying the
currently applicable maximum speed limits or the guideline
maximum speeds for the country concerned.
The navigation system uses a real ecological route calculation
algorithm and also oers the option of choosing between three
alternative routes. In addition, you can create a route with an
intermediate destination. If the driver takes a break, the route last
used is automatically resumed.
With the Standard MIB, the navigation system now oers the
option of entering a destination using the voice control function
as well as by manually entering an address. When doing so, the
user is assisted by predefined MMI prompts.
The PR numbers below indicate whether the Standard MIB is one
that is navigation-ready or with the navigation system pre-acti-
vated:
• Navigation-ready: 7UH
• Basic navigation system activated: 7UF
MMI screen for Standard MIB with
active navigation system on Audi A3 '13

Audi MIB Series Specifications
