16
618_042
618_043
DAB tuner
DAB tuner
MOST interface
MOST interface
Tuner 1
AM/FM
Tuner 1
AM/FM
Tuner 2
FM
Tuner 2
FM
Tuner 3
FM
DAB decoder
DAB decoder
RDS decoder
RDS decoder
RDS decoder
FM phase
diversity unit
FM phase
diversity unit
RDS
RDS
Audio
amplifier
Audio
amplifier
Sound
processor
Sound
processor

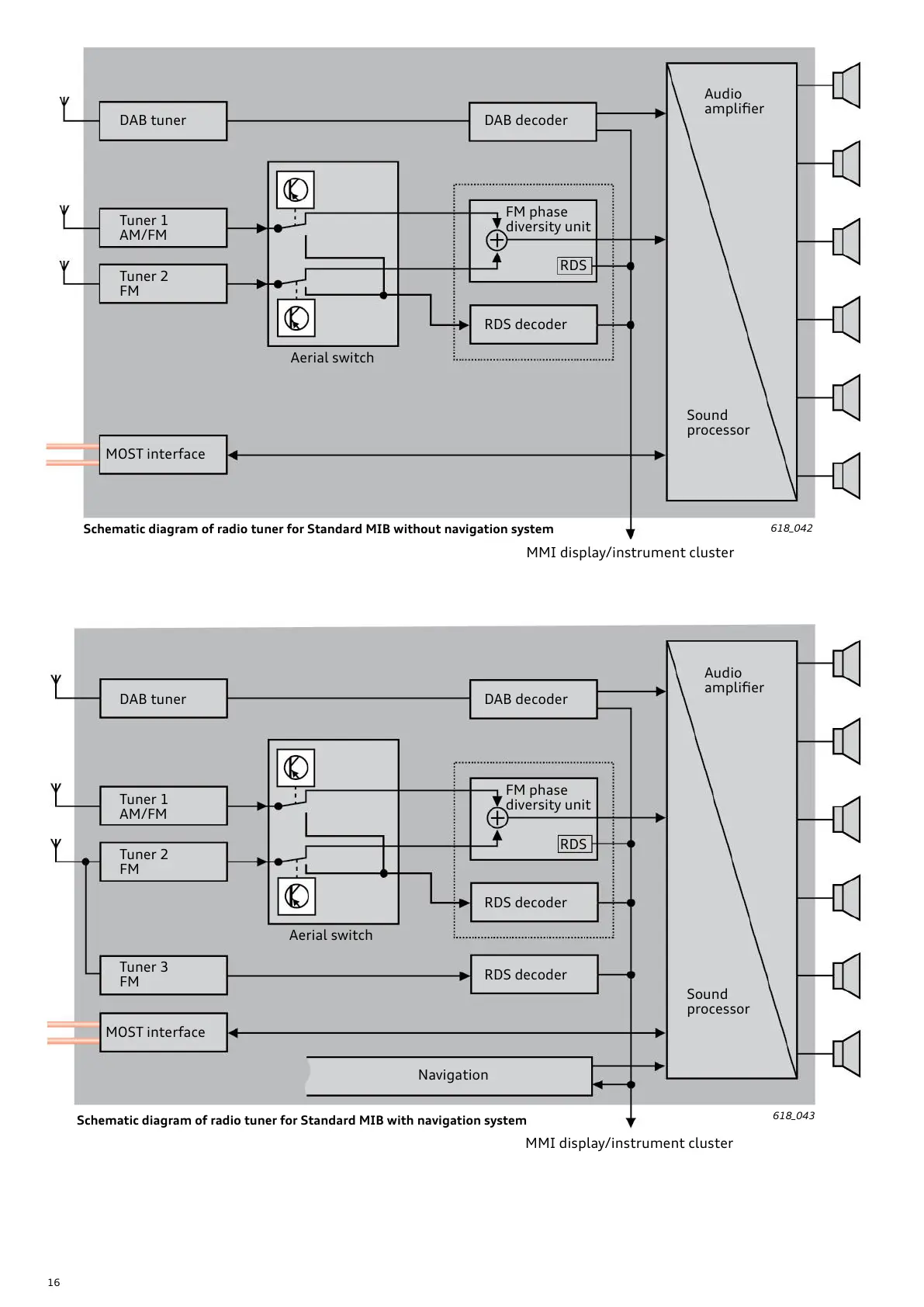

Schematic diagram of radio tuner for Standard MIB without navigation system
Schematic diagram of radio tuner for Standard MIB with navigation system
Navigation
MMI display/instrument cluster
MMI display/instrument cluster
Aerial switch
Aerial switch
