Specifications
MICROPHONE PREAMPLIFIERS:
(measured to insert send)
ADC LINE INPUTS (Insert Returns):
(measured at AES output under AES-17)
DIGITAL i/o:
POWER SUPPLY:
WEIGHT: 4.0 kg
DISCRETE JFET D.I (Channels 1 & 2):
(measured to line outputs / insert send)
LINE OUTPUTS (Insert Sends):
MIC GAIN: -10 to +60dB (-10dB Pad)
LINE GAIN: -16 to +44dB (-10dB Pad)*
PHANTOM POWER: 48v +/-4v @ 10mA/Channel
MIC EIN: <-127.5dBu
CMRR: >80dB @ 100 to 10kHz
MAXIMUM INPUT LEVEL: +22dBu (+32dBu with Pad)
INPUT IMPEDANCE
 MicLO:  200ΩBalanced
 MicMED:  1k4ΩBalanced
 MicHI:  3k6ΩBalanced
 Line(AllZ): >10kΩBalanced
FREQUENCY RESPONSE: +/-0.5dB 10Hz to 100kHz
CROSSTALK: <-85dBu @ 1kHz & 10kHz
THD+N @ 0dBu (1kHz): 0.003% (-90.5dBu)
SNR: >90dB
HPF: Sweepable from 25Hz to 250 Hz
2nd Order (12dB/Octave)
XLR: Pin 2 (Hot), Pin 3 (Cold) & Pin 1 (Shield)
1/4” JACK: TIP (Hot), RING (Cold) & SLEEVE (Shield)
*Line input level at the combi jacks will be affected by the input
impedance switch position, this can be used as a second pad
control to adjust line input ranges on all channels.
MAXIMUM INPUT LEVEL: +18dBu
DIGITAL REFERENCE LEVEL: 0dBFS = +18dBu
INPUTIMPEDANCE:  >10kΩBalanced
FREQUENCY RESPONSE: +/-0.5dB 10Hz to Fs/2
CROSSTALK: <-80dBu @ 1kHz & 10kHz
THD+N @ -1dBFS (1kHz): <0.002% (-94dB)
THD+N @ -6dBFS (1kHz): <0.002% (-94dB)
DYNAMIC RANGE: 113dB un-weighted
115dB A-weighted
PEAK LED LINEUP: +16dBu (-2dBFS)
SIGNAL LED LINEUP: -10dBu (-28dBFS)
D.I GAIN: -10 to +60 dB (-10dB Pad)
MAXIMUM INPUT LEVEL: +16dBu (typical), +22dBu
INPUTIMPEDANCE:  1MegΩUnbalanced
FREQUENCY RESPONSE: +/-0.5dB 10Hz to 50kHz
THD+N @ 0dBu (1kHz): <0.03% (-70dBu)
SNR: 89dB
1/4” JACK: TIP (Hot) & SLEEVE (Shield)
MAXIMUM OUTPUT LEVEL: +27.5dBu
OUTPUTIMPEDANCE: <100ΩBalanced
ADAT 8 CHANNELS SMUX: 44.1 - 96kHz
AES | S/PDIF 8 CHANNELS: 44.1 - 96kHz
CLOCK: Internal or External
WORDCLOCKINPUT: 75ΩBNC
   Optional75ΩTermination
High stability, low noise internal SMPS
Fanless, quiet operation
Works anywhere in the world without reconfiguring
LINE VOLTAGES: 90 to 264V (a.c)
INTERNAL RAILS: +/-18VDC, +48VDC & +5VDC
FUSE: T1A (1Amp Time Delay)
CONSUMPTION: Maximum 40 Watts

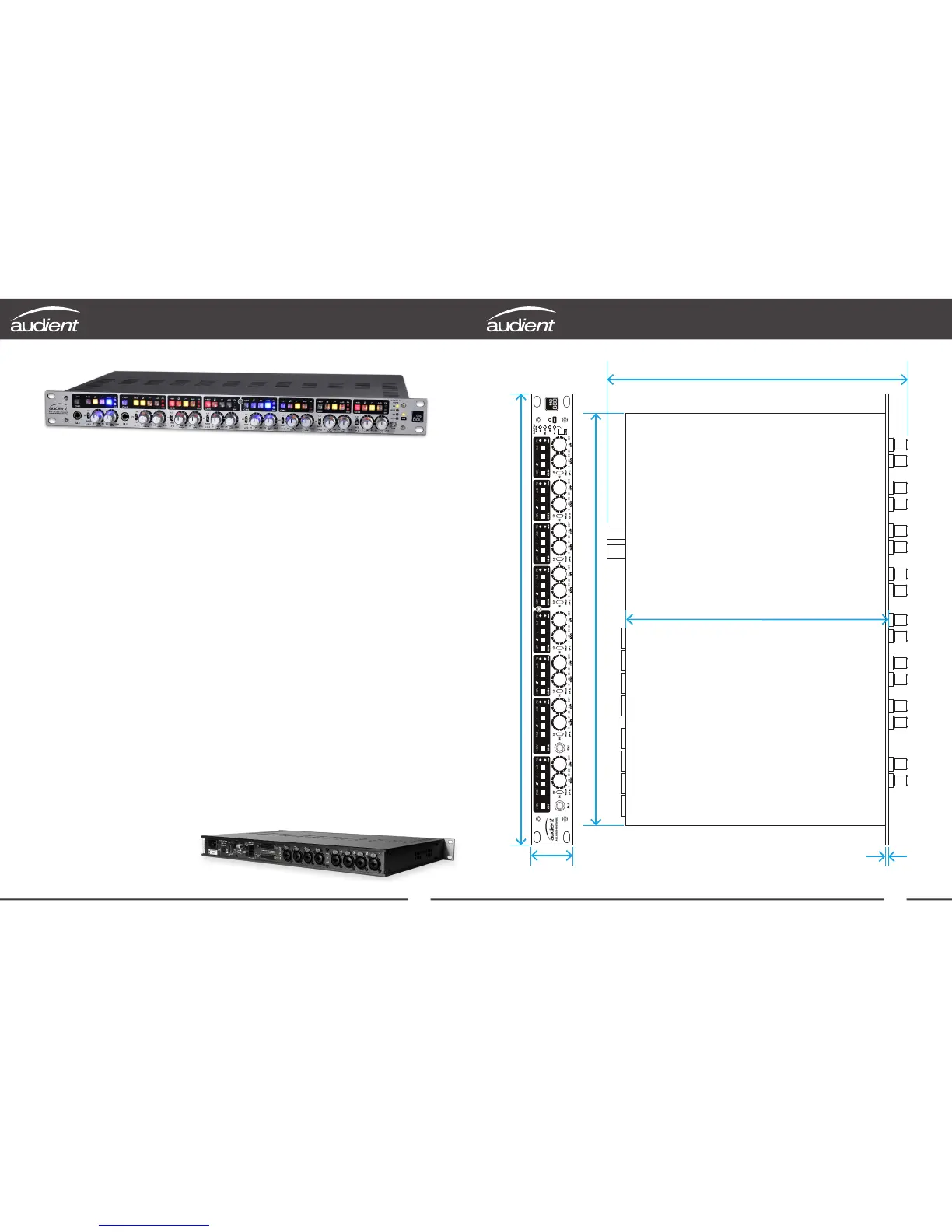

Dimensions
3mm
440mm 482mm
44.4mm
280mm
321mm

Audient ASP880 Specifications

General

Microphone Preamplifier Gain	0 to 60 dB
CMRR @ 1kHz	> 80dB
ADC	24-bit/96 kHz
Power	External Power Supply
Type	Microphone Preamplifier
Phantom Power	48V
HPF	12dB/octave
Inputs	8 x XLR/TRS combo jacks (mic/line)
Outputs	ADAT Optical
ADAT Output	8 channels
Word Clock I/O	BNC In/Out
Power Supply	12V DC
THD+N	<0.001% (Mic Input to Line Output)
Dimensions	1U 19-inch rackmount
