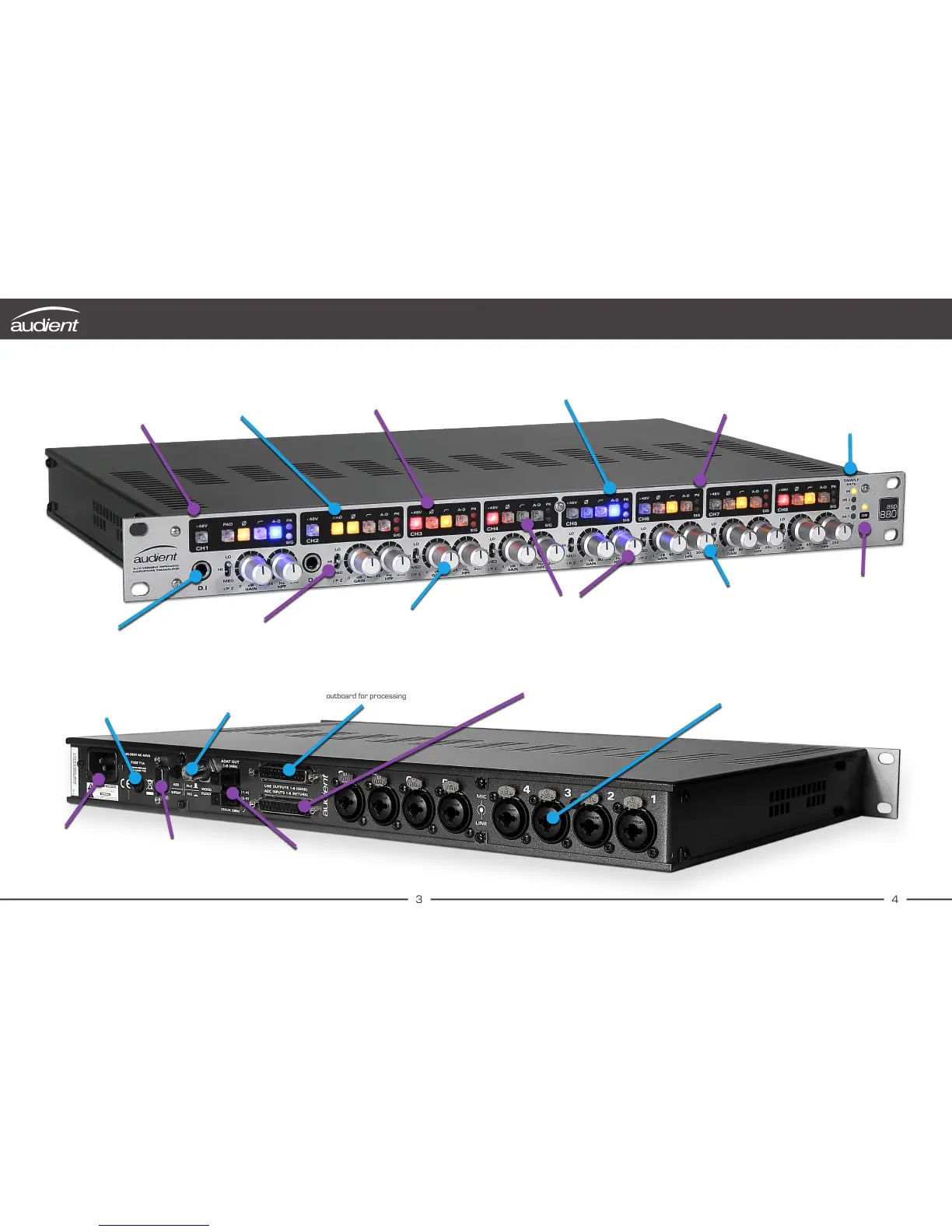

ASP880 Overview
48V PHANTOM POWER
Stable regulated supply for your mics
-10dB PAD
Preserve your headroom
on kick & snare drums
POLARITY REVERSE
so you can be sure everything is in-phase
and as full sounding as possible
ADC DIRECT ACCESS / INSERT
Insert analogue gear between mic pre and ADC
or use ASP880 as a standalone line level ADC
SIGNAL / PEAK METERS
+18dBu = 0dBFS Clip Indicators
PEAK = -2dBFS
SIG = -28dBFS
SAMPLE RATE INDICATORS
Sample rate switch = green when using
external clock source, toggle through internal
at 4 sample rates and then external sync
DISCRETE JFET D.I INPUT
Sounds fantastic on guitars & basses!
VARIABLE INPUT IMPEDANCE
Triangle of tone for your mics!
200,1400or3600Ω
60dB of CLASS-A GAIN
Clean, quiet & punchy!
SWEEPABLE HPF
Bypassable, smooth 12dB/oct variable
from 25 to 250Hz - clean up rumble and mud
POWER ON INDICATOR
SOLID ALUMINIUM KNOBS
TIP* roll them smoothly between
your fingers for easy operation
MAINS IEC INPUT
90-264Va.c Operation
anywhere in the world!
MAINS SAFETY FUSE
T1A Time Delay
(replace with same type)
AES or S/PDIF OUTPUT
9-Pin DSUB - format selected
with rear panel push switch
BNC WORDCLOCK INPUT
Hi-Zor75ΩTermination
available on rear panel switch
ADAT SMUX OUTPUT
Top port 8 channels <48kHz
Both ports 4 channels split >48kHz
DB25 ANALOGUE OUTPUTS
Use to feed the mic preamps into
outboard for processing
DB25 ADC INPUTS
Line level input direct to ADC to use as
standalone A-D converter, or return
outboard here to form an insert point
(pressing the front panel A-D switch)
XLR MIC / TRS LINE INPUTS
Line inputs are available on combi jacks
(padded into the mic pre) and have access
to all input functions (except P48)
