SPECIFICATIONS
Amplifier Power Rating . . . . . . . . . . . . . . . . . . . . . 80 Watts @ 8 ohms
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125v watts RMS @ 4 ohms
. . . . . . . . . . . . . . . . . . . . . . . . . 210 Watts RMS @ 2 ohms (minimum)
Minimum Speaker Load . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 ohms
Damping Factor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Greater than 200
EQ Center Frequencies . . . . . . . . . 45, 150, 300, 700, 2500 and 12KHz
S/N ratio . . . . . . . . . . . . . Greater than 100dB , A-wtd, ref. Full Output
Total Harmonic Distortion . . . . . . . . 0.05% (50 watts/8 ohms 20-20K)
Input Sensitivity . . . . . . . . . . . . . . . . .Variable 0-1 Vrms for full output
Input Impedance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30 Kilohms
PFM Highpass Filter Frequency . . . . . . . . . . . . Variable 20Hz to 80Hz
PFM Highpass Filter Slope . . . . . . . . . . . . . . . . . . . . . . . . . 18dB/octave
Protection . . . . . . . . . . . . . Clipping, Thermal, Short Circuit, DC offset
Power Consumption . . . . . . . . . . . 660 watts ( Full output into 2 ohms)
AC Line Fuse . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 amp
Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 pounds
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17"W x 12"D x 3.5"H
Options . . . . . . . . . . . . 5-way Binding Posts - Model 105 & Model205
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Non-Rackmount Face Plate
©AudioControl 1999, All Rights Reserved.
This manual was written, designed, printed, folded and stuffed
into the box in the U.S.A. Probably on a really soggy day consid-
ering where we live.

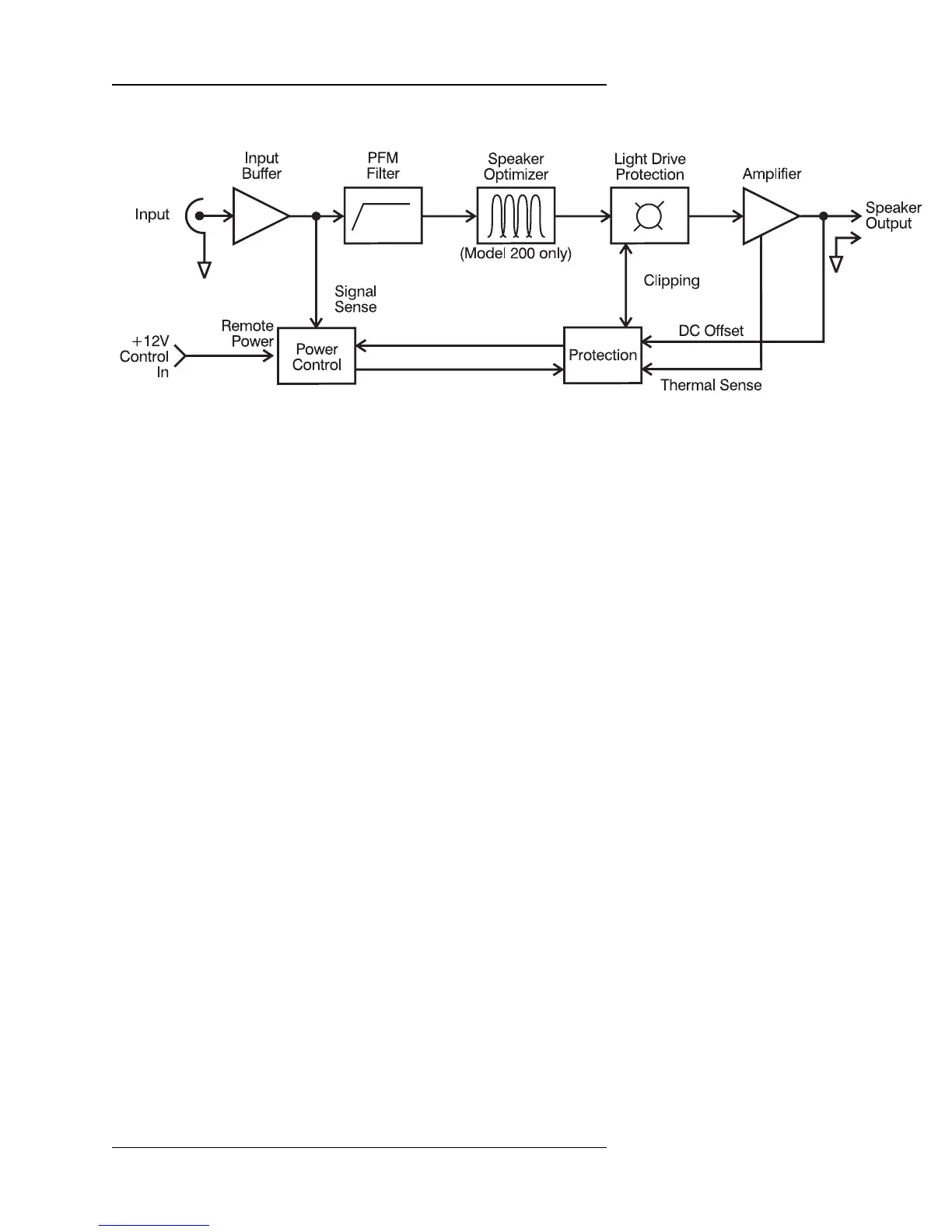

Block
