APx AMC I/O for B Series: Specifications 89
AMC
AMC Advanced Master Clock
Rear Panel Sync, Trigger and Ref I/O
specifications
with APx500 v5.0 or higher measurement software
as fitted in APx52x, 555, and 58x B Series audio analyzers
NP0020.00042 rev 000
December 2018

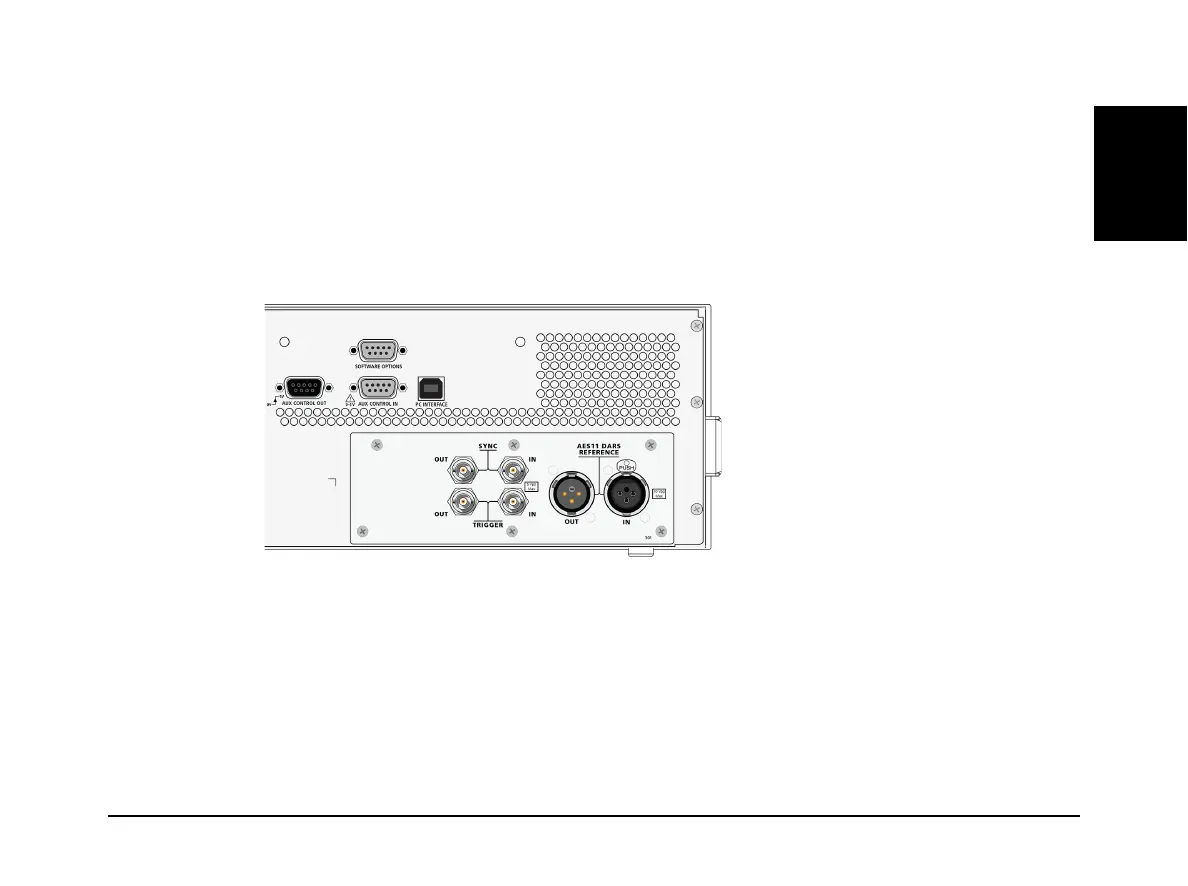

This illustration shows a section of the APx rear panel, focusing on the Auxiliary I/O
and the Sync, Trigger and DARS reference connections for the AMC.
These specifications cover rear panel Sync, Trigger and DARS Reference I/O functions for
APx analyzers fitted with the Advanced Master Clock (AMC).
The Auxiliary I/O (GPIO) function is also described here. The Auxiliary I/O function is not
part of the AMC option, but is fitted on all APx analyzers.
