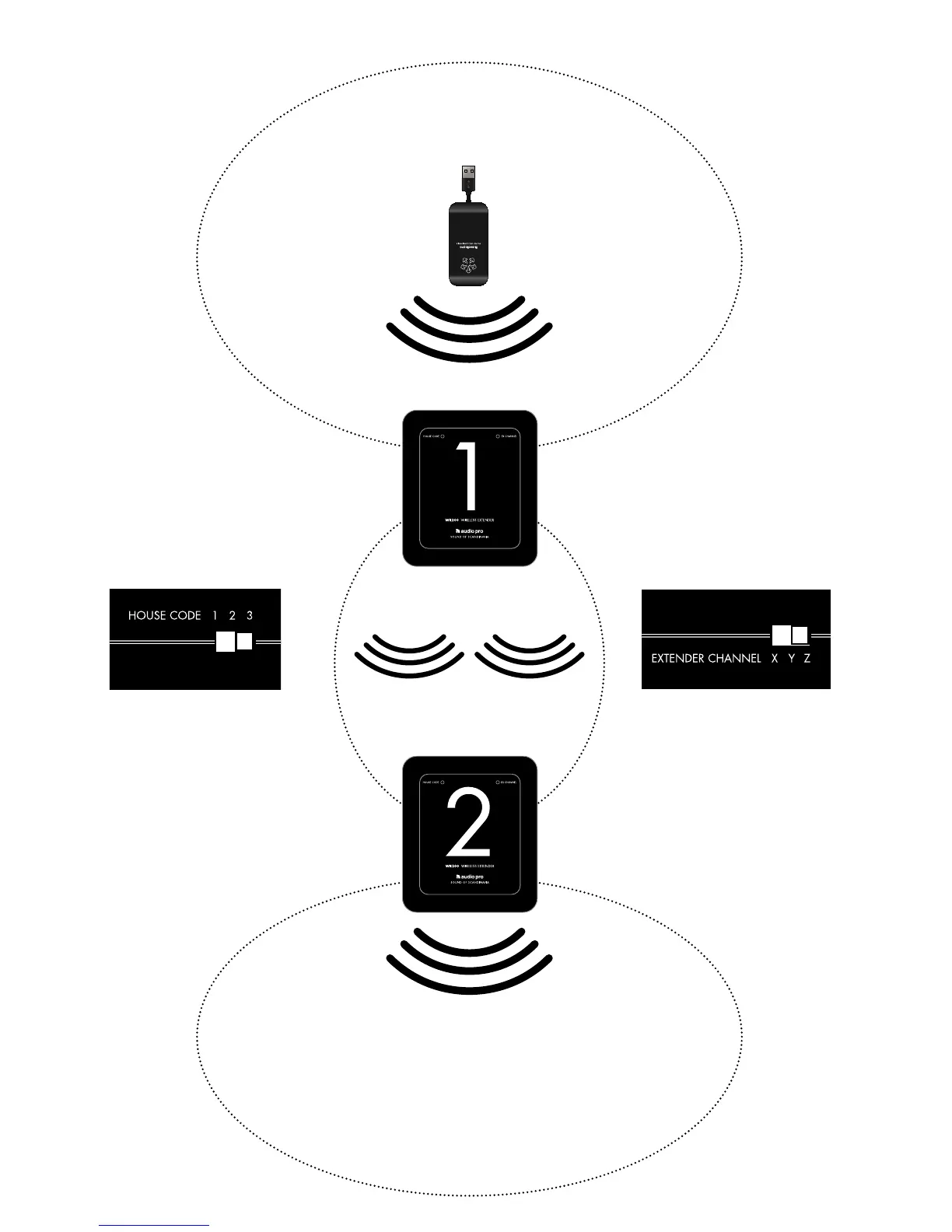

BASIC CONNECTION

TX100 transmitter

UNIT 1

HOUSE CODE: Same as on the

TX100 transmitter ( 1, 2 or 3)

UNIT 2

HOUSE CODE:

Set to different House Code

than TX100.

Example: Set TX100 and UNIT

1 to House Code 1, set UNIT 2

to House Code 2 or 3.

UNIT 1

EXTENDER CHANNEL:

Set to X, Y or Z

UNIT 2

EXTENDER CHANNEL:

Set to same channel X, Y

or Z as on UNIT 1.

Set all LV-speakers to same House Code

as UNIT 2 in order to receive a signal.

All speakers located within range are set

to the same House Code as the TX100.

Range: 15-30m

Range: 20-100m
