Audio Technica ATR2500-USB User Manual

8

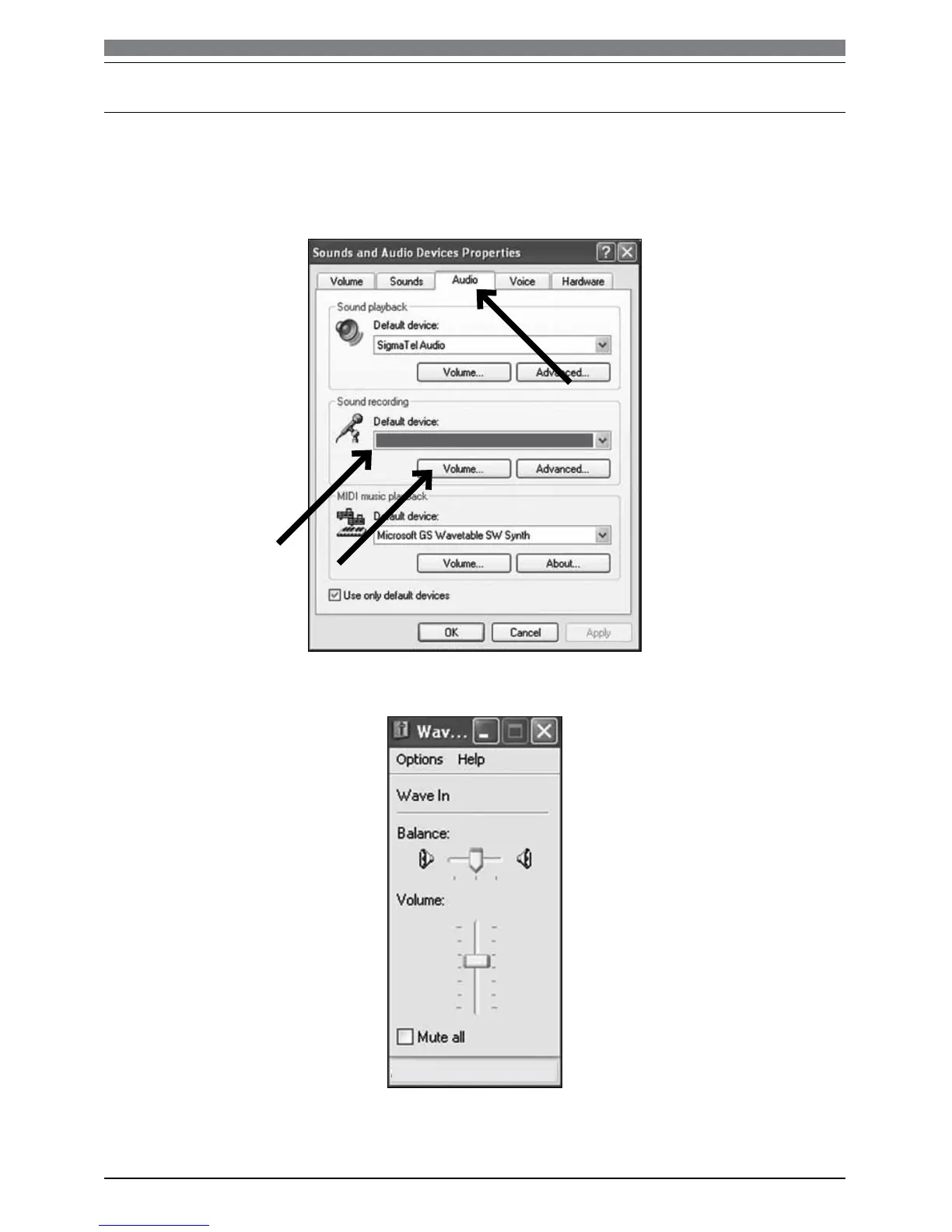

5. Select the Audio tab, and choose ATR2500-USB as the default device.
6. Adjust computer volume by clicking on the Volume button beneath Sound recording Default device.
Preliminary setup with Windows XP (continued)
ATR2500-USB
7. Through the Wave In window, you can set the computer volume or mute the microphone.
Your preferences are now set to use the ATR2500-USB with Windows XP with the recording program
of your choice.
ATR2500-USB

Audio Technica ATR2500-USB Specifications

General

Microphone frequency	30 - 15000 Hz
Microphone input impedance	16 Ω
Connectivity technology	Wired
Cable length	1.8 m
Product color	Silver
Weight	366 g
USB powered	Yes
Operating voltage	5 V
Package depth	177.8 mm
Package height	254 mm
Package weight	731 g
