Audio Technica ATW-T1006

ATW-T1006
10 mW
Fixed-charge back plate, permanently
polarized condenser
Half-cardioid (cardioid in hemisphere
above mounting surface)
20-20,000 Hz
80 Hz, 18 dB/octave
139 dB SPL, 1 kHz at 1% T.H.D.
Touch-sensitive user switch function:
toggle (mute on power up), momentary
on, momentary off; Low-cut lter: at,
roll-off; Gain: -6 dB, 0 dB, +6 dB
3.7 V rechargeable Li-ion battery
9 hours
Depending on environmental conditions
4 hours 30 minutes
Depending on environmental conditions
An empty battery will recharge 90% in 2 hours.
96.1mm (3.78") W × 38.0mm (1.50") H ×
122.8mm (4.83") D
408 grams (14.4 oz)
AC adapter (USB-type), USB cable
RF Power output
Element
Polar pattern
Frequency response
Low frequency roll-off
Maximum input sound level
Switches
Internal battery
Battery life
Battery charging time
Dimensions
Weight
Accessory included
In the interest of standards development, A.T.U.S.
offers full details on its test methods to other industry
professionals on request.
1 Pascal = 10 dynes/cm
2
= 10 microbars = 94 dB SPL
1
Typical, A-weighted, using Audio Precision System One.
Specications are subject to change without notice.
Specications
Audio-Technica Corporation
audio-technica.com ©2016 Audio-Technica 0001-0310-00
The low-cut lter can be turned on and off by pressing the recessed Low
Cut button on the bottom of the transmitter. The lter is off by default.
The LED below the Low Cut button illuminates red when the lter is off,
green when it is on.
All LEDs on the bottom of the transmitter will turn off seven seconds
after the last button is pressed. Pressing any button will cause the LEDs
to relight.
The settings can be restored to the factory default by pushing and
holding the Low Cut button and, while holding it, pushing and holding
the Power button. The three LEDs on the bottom of the transmitter will
rapidly blink green for two seconds and then illuminate according to
default settings once the defaults have been restored.
Note: All settings will be restored except for the System ID number. This
number and pairing with the receiver will be retained.
Avoid leaving the transmitter in the open sun or in areas where
temperatures exceed 110° F (43° C) for extended periods. Extremely high
humidity should also be avoided.
Note: Placing any object on a surface (such as a conference table) before
its nish is fully cured may result in damage to the nish.
Architect’s and Engineer’s Specications
The ATW-T1006 microphone/transmitter shall be a xed-charge
condenser designed for use in surface-mount boundary applications as
part of a digital wireless microphone system operating in the 2.4 GHz
range. It shall be capable of automatically adjusting its frequency to avoid
interference. It shall have a frequency response of 20 Hz to 20,000 Hz
and a cardioid polar pattern. The transmitter shall be capable of handling
sound input levels up to 139 dB.
The transmitter shall be equipped with a touch-sensitive user switch
and a corresponding Switch Function button. The Switch Function button
shall allow selection of user switch settings: toggle between live and
muted audio (toggle on/off); permit live audio only while the switch is
pressed (press to talk); mute the audio while the switch is pressed (press
to mute). Two red/green LED status indicators shall be provided – one
integrated into the user switch on the front of the unit (LED 1), the other
bent in an L-shape to display on both the top and rear of the unit (LED 2).
A pairing switch shall allow the transmitter to be paired with any System
10 receiver. An 80 Hz “low cut” switch shall be provided to tailor the low-
frequency response to minimize pickup of unwanted sounds. And there
shall be three selectable gain levels: -6 dB, 0 dB, and +6 dB.
The transmitter shall operate in two different modes: Standard and
Conference. In Standard mode, which is the default, both of the
transmitter’s LEDs shall illuminate green when the transmitter is on and
shall illuminate red when the transmitter is muted. In Conference mode,
both LEDs shall illuminate red when the transmitter is on and shall not
illuminate at all when the transmitter is muted. When the transmitter
power is off and the charging cable is plugged into the transmitter, LED
1 shall not illuminate, and LED 2 shall illuminate red while the battery is
charging and illuminate green once the battery is fully charged.
It shall be possible to electrically lock the transmitter mute function. A
backlit LCD display shall be provided to show System ID number and
mute lock status.
The transmitter shall be powered by a 3.7 V rechargeable lithium-ion
battery. An AC adapter (USB-type) and USB cable shall be included to
recharge the battery.
The transmitter shall have a maximum width of 96.1 mm (3.78"), a
maximum length of 122.8 mm (4.83") and a maximum height of 38.0 mm

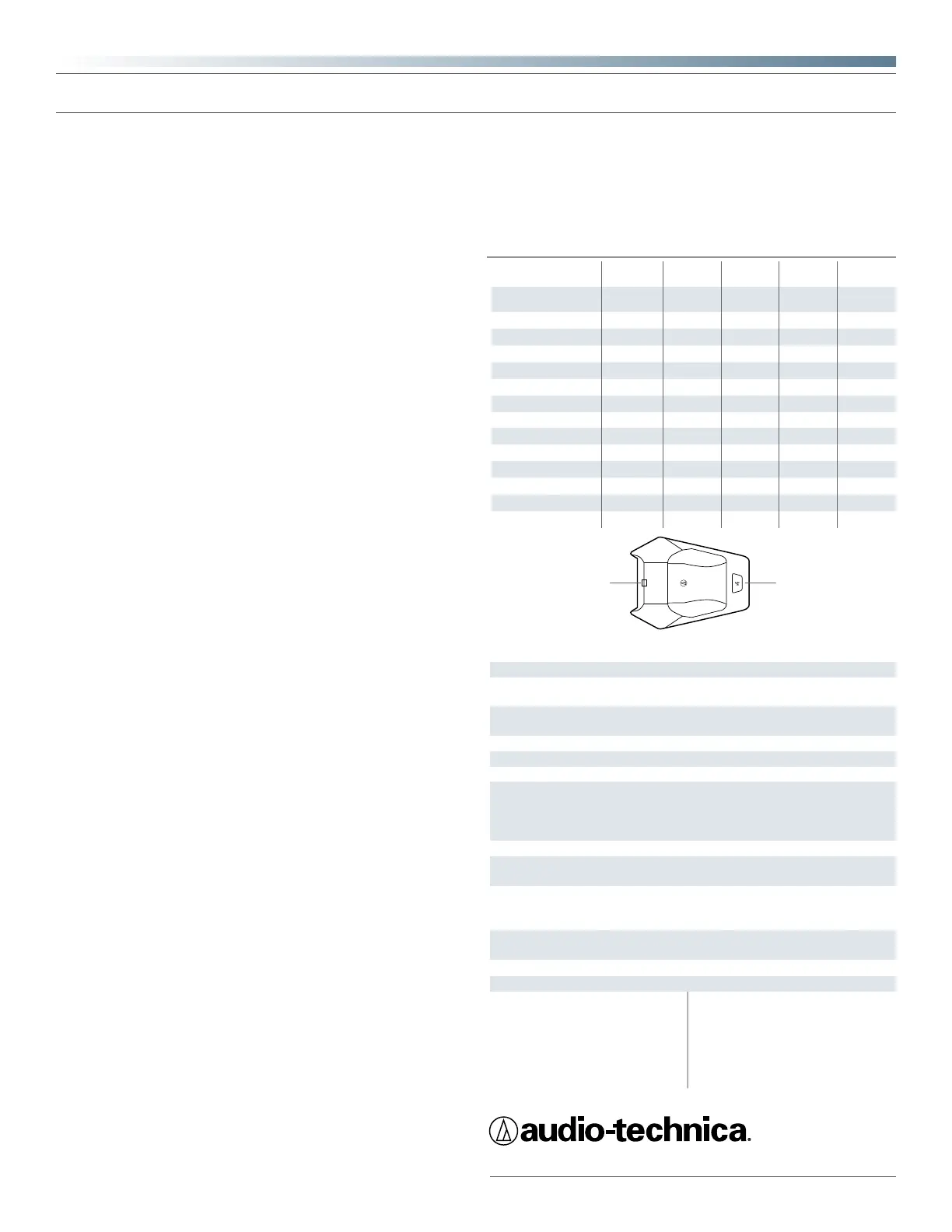

LED Function Standard Mode Conference Mode
Condition Transmitter
Power
LED 1 LED 2 LED 1 LED 2
Not linked with Receiver On Red/Green
Alternate
Green/Red
Alternate
Red/Green
Alternate
Green/Red
Alternate
Initialize/Toggle Mode On
Green Green Red Red
Initialize/Press to Talk On
Red Red Off Off
Initialize/Press to Mute On
Green Green Red Red
Mic Mute On
Red Red Off Off
Mic Talk On
Green Green Red Red
Charging/Mic Mute On
Red Red Off Off
Charging/Mic Talk On Green Green Red Red
Fully Charged/Mic Mute On
Red Red Off Off
Fully Charged/Mic Talk On
Green Green Red Red
Low Battery/Mic Mute On
Red Blink Red Blink Off Red Blink
Low Battery/Mic Talk On
Green Blink Green Blink Red Blink Red Blink
Charging Off
Off Red Off Red
Fully Charged Off
Off Green Off Green
(1.50"). Weight shall be 408 g (14.4 oz). The transmitter shall be housed
in a die-cast case with a perforated steel grille. Finish shall be low-
reectance black.
The Audio-Technica ATW-T1006 is specied.
LED
2
LED
1
