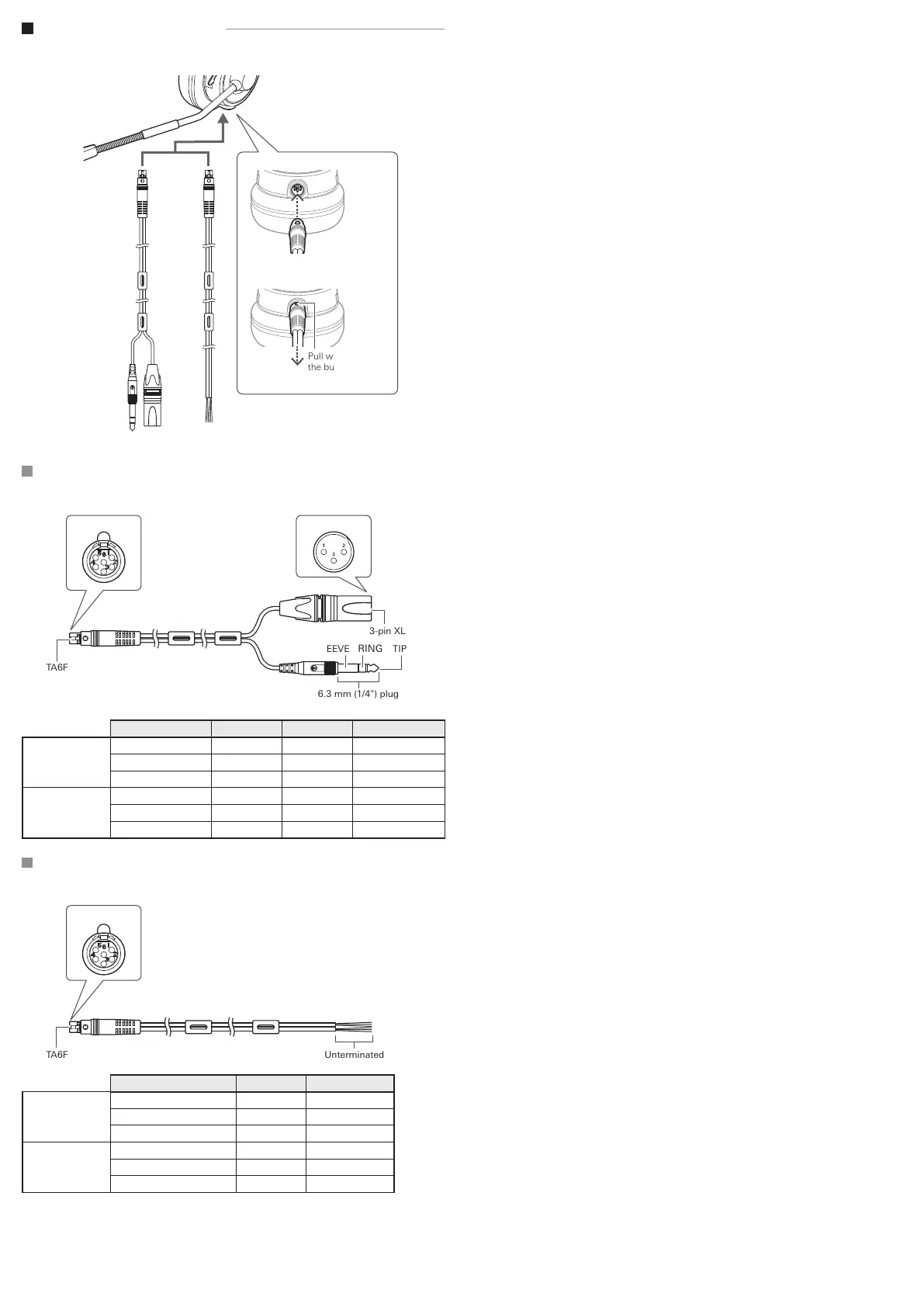

Connecting the product
Connect cables such as BPCB2 (included) or BPCB3 (sold separately) to the connector jack of the
product.
BPCB2
Cable for BPHS2 (all models) with a TA6F connector at one end and 3-pin XLRM connector and 6.3
mm (1/4") plug at the other.
Function TA6F 3-pin XLRM 6.3 mm (1/4") plug
Microphone
MIC + PIN 5 PIN 2 HOT -
MIC – PIN 6 PIN 3 COLD -
SHIELD PIN 1 PIN1 GND -
Headphones
SPEAKER − PIN 2 - SLEEVE
SPEAKER R+ PIN 4 - RING
SPEAKER L+ PIN 3 - TIP
BPCB3
Cable for BPHS2 (all models) with a TA6F connector at one end and unterminated connector at the
other.
Function TA6F Unterminated
Microphone
MIC + PIN 5 RED
MIC – PIN 6 YELLOW
SHIELD PIN 1 COPPER
Headphones
SPEAKER − PIN 2 BLACK
SPEAKER R+ PIN 4 RED
SPEAKER L+ PIN 3 GREEN
BPCB2 BPCB3
Pull while pressing
the button to
disconnect the
cable.
3-pin XLRM
3-pin XLRM
6.3 mm (1/4") plug
SLEEVE
RING
TIP
TA6F
TA6F
TA6F
TA6F Unterminated
