83
NE
) ) )
MIXER
Band mix
Stem 1
Stem 2
Guitaar
Links
(Stem 1 luidar)
M2R
Rechts
(Band mix luidar)
SYSTEEM 1
OMGEVINGSMICROFOON
(optie)
( ( ( ) ) )( ( (
Links
(Guitaar luidar)
M2R
Rechts
(Band mix luidar)
SYSTEEM 3
OMGEVINGSMICROFOON
(optie)
( ( ( ) ) )
Links
(Stem 2 luidar)
M2R
Rechts
(Band mix luidar)
SYSTEEM 2
OMGEVINGSMICROFOON
(optie)
M2T (SYSTEEM 2)
M2T (SYSTEEM 3)
M2T (SYSTEEM 1)
Input L/1
Input R/2
Loop Out L/1
Loop Out R/2
Input L/1
Input R/2
Loop Out L/1
Loop Out R/2
Input L/1
Input R/2
Loop Out L/1
Loop Out R/2

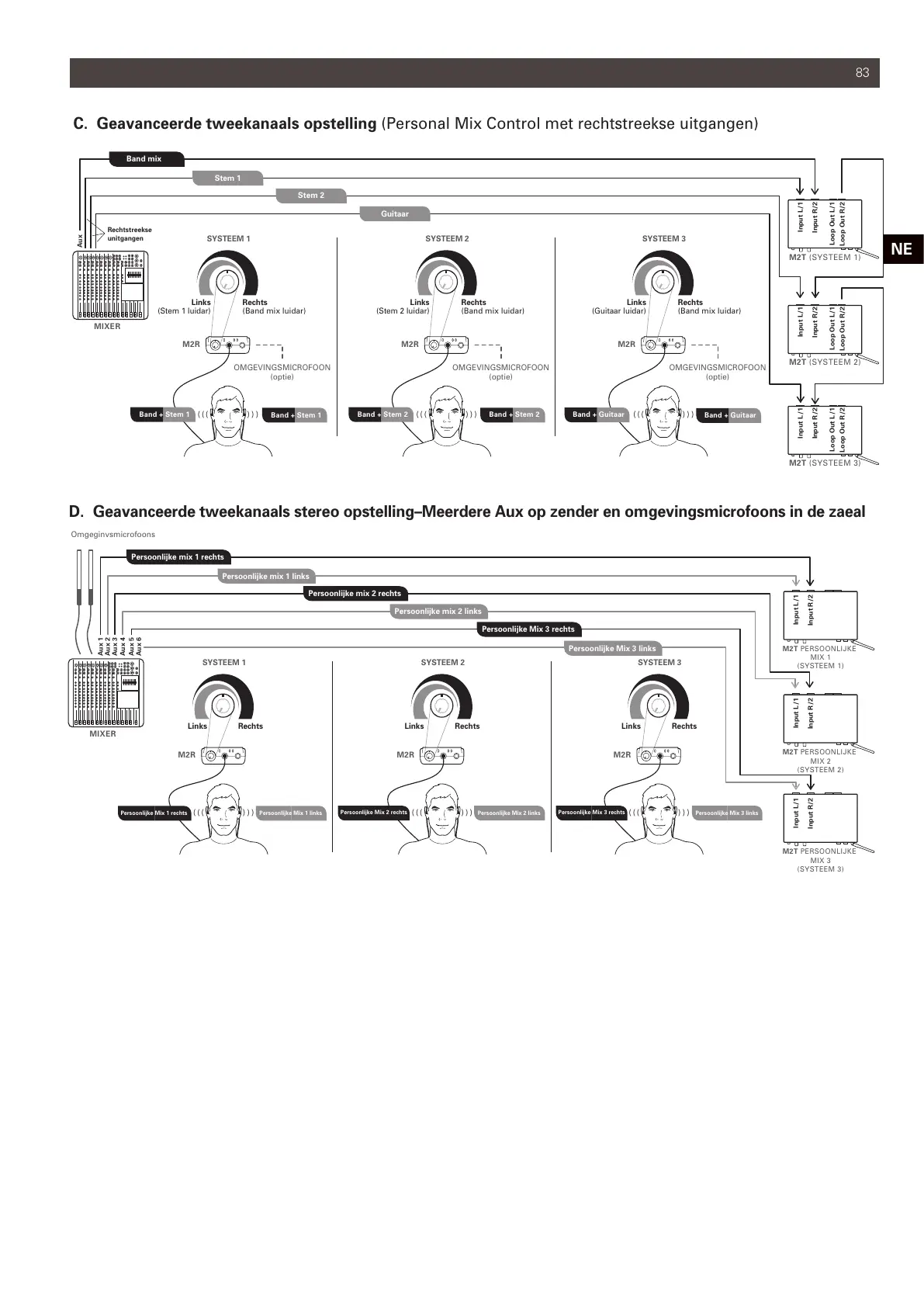

C. Geavanceerde tweekanaals opstelling (Personal Mix Control met rechtstreekse uitgangen)
Aux
Rechtstreekse
unitgangen
Instrumenten + Gitarre
Band + Stem 1
Band + Stem 1
Band + Stem 2
Band + Stem 2
Band + Guitaar
Band + Guitaar
M2T PERSOONLIJKE
MIX 2
(SYSTEEM 2)
M2T PERSOONLIJKE
MIX 3
(SYSTEEM 3)
M2T PERSOONLIJKE
MIX 1
(SYSTEEM 1)
Omgeginvsmicrofoons
) ) )
MIXER
Persoonlijke mix 1 rechts
Persoonlijke mix 1 links
Links
M2R
Rechts
SYSTEEM 1
Persoonlijke Mix 1 rechts
Persoonlijke Mix 1 links
( ( ( ) ) )( ( (
M2R
SYSTEEM 3
( ( ( ) ) )
M2R
SYSTEEM 2
Input L/1
Input R/2
Input L/1
Input R/2
Input L/1
Input R/2
D. Geavanceerde tweekanaals stereo opstellingMeerdere Aux op zender en omgevingsmicrofoons in de zaeal
Aux 1
Aux 2
Aux 3
Aux 4
Aux 5
Aux 6
Persoonlijke Mix 2 rechts
Persoonlijke Mix 2 links
Persoonlijke Mix 3 rechts
Persoonlijke Mix 3 links
Persoonlijke mix 2 rechts
Persoonlijke Mix 3 rechts
Persoonlijke mix 2 links
Persoonlijke Mix 3 links
Links Rechts
Links Rechts
