Audiocenter TS12 User Manual

This is balanced XLR output socket. Parallel to INPUT socket (Line B), input signal can
be bypass, without influence.
Power switch
Turn on or off power. Slide the switch up to (1) position to turn on the power.Slide the
switch down to (0) position to turn off the power.
AC input socket
Connect the power cable here.First connect on end of the power cable to the product and
then connect the other end of the power cable to AC socket.
Inputs socket (LINE B)
Balanced XLR and phone type multi-function input socket.
OUTPUTS Socket（LINE B）
INPUTS Socket（AUX）
Unbalanced RCA input socket.
11
AC INP UT
(230 V/50-60 )Hz
1
1
7
PRO TECT
LIMIT ER
SIGN AL A
POW ER
SIGN AL B
LINE B
LINE A LINE B
LINE A
VOL A
VOL B
A BLIN K/ STAN DBY
PRE SETPHA SE
ENT ER
11
1
13
13
10
12
6
4
5
2
2
3
7
9
8
14
14

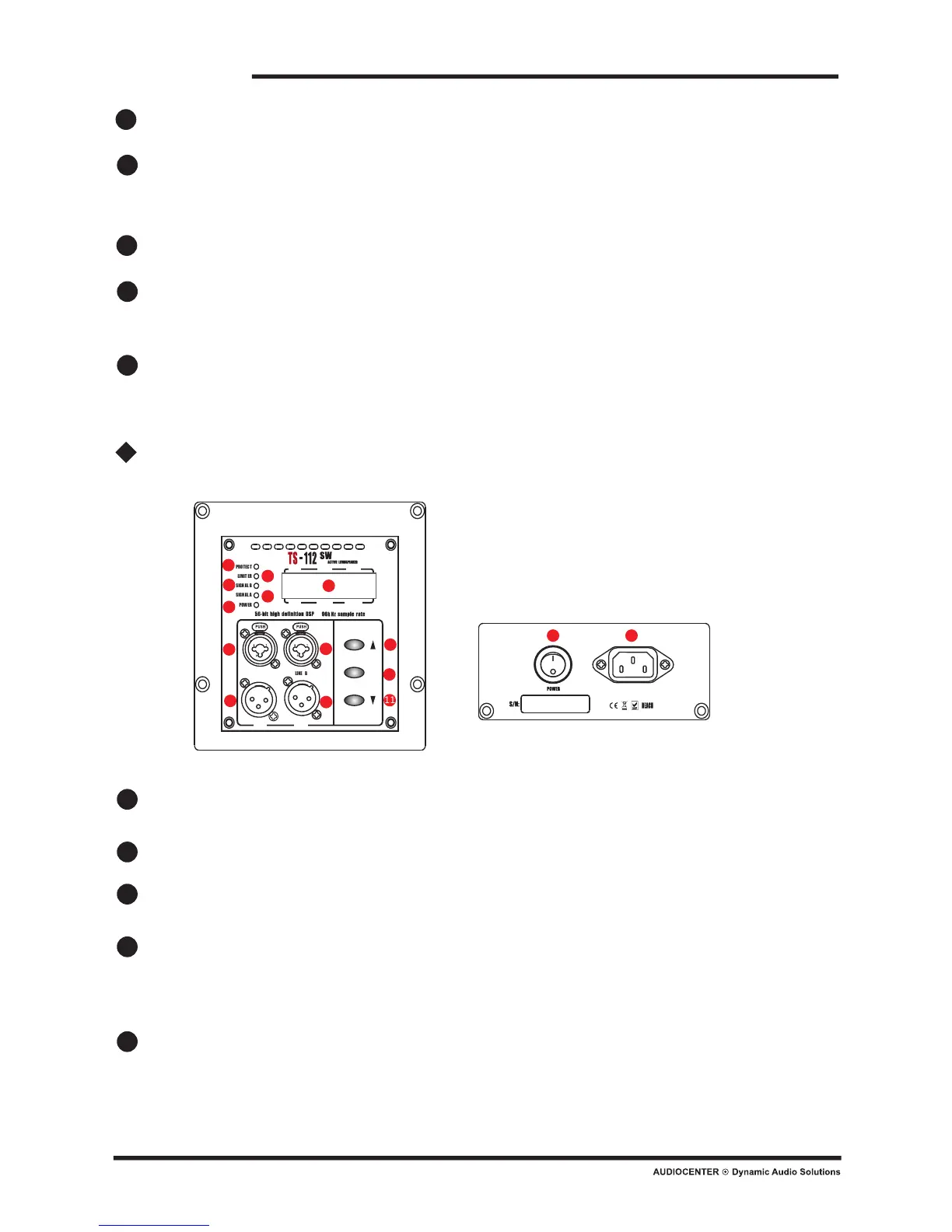

TS-SW series back panel control and functions
Page 9
13
14
15
16
17
Power LED
When connected to power, the LED is on.
Signal A LED
When there is audio input signal in Line A/Mic channel, the LED is on.
Signal B LED
When there is audio input signal in LineB/AUX, the LED is on.
Limiter LED
When output limiter is used, the LED is on. If the output voltage of the amplifier is over
the maximum value, the output limiter will operate, damping the output signal of the
amplifer.
Protect LED
When system protection is activated,the LED is on.The Protection System will be
activated in following situations:
the amplifier over heated
DC output
1
2
3
4
TS/TS-SW
5

Audiocenter TS12 Specifications

General

Brand	Audiocenter
Model	TS12
Category	Speaker System
Language	English
