Agood configuration for smaller intercom systems when you want to operate the MS-2002 as a master speaker station, with
one (1) speaker to monitor both intercom channels. In this configuration, the Combine/Isolate switch is set to the Isolate
position. With this setting, the two (2) intercom channels are completely separated. The MS-2002 dip switches are set to
monaural operation so that both intercom channels are heard in the speaker.

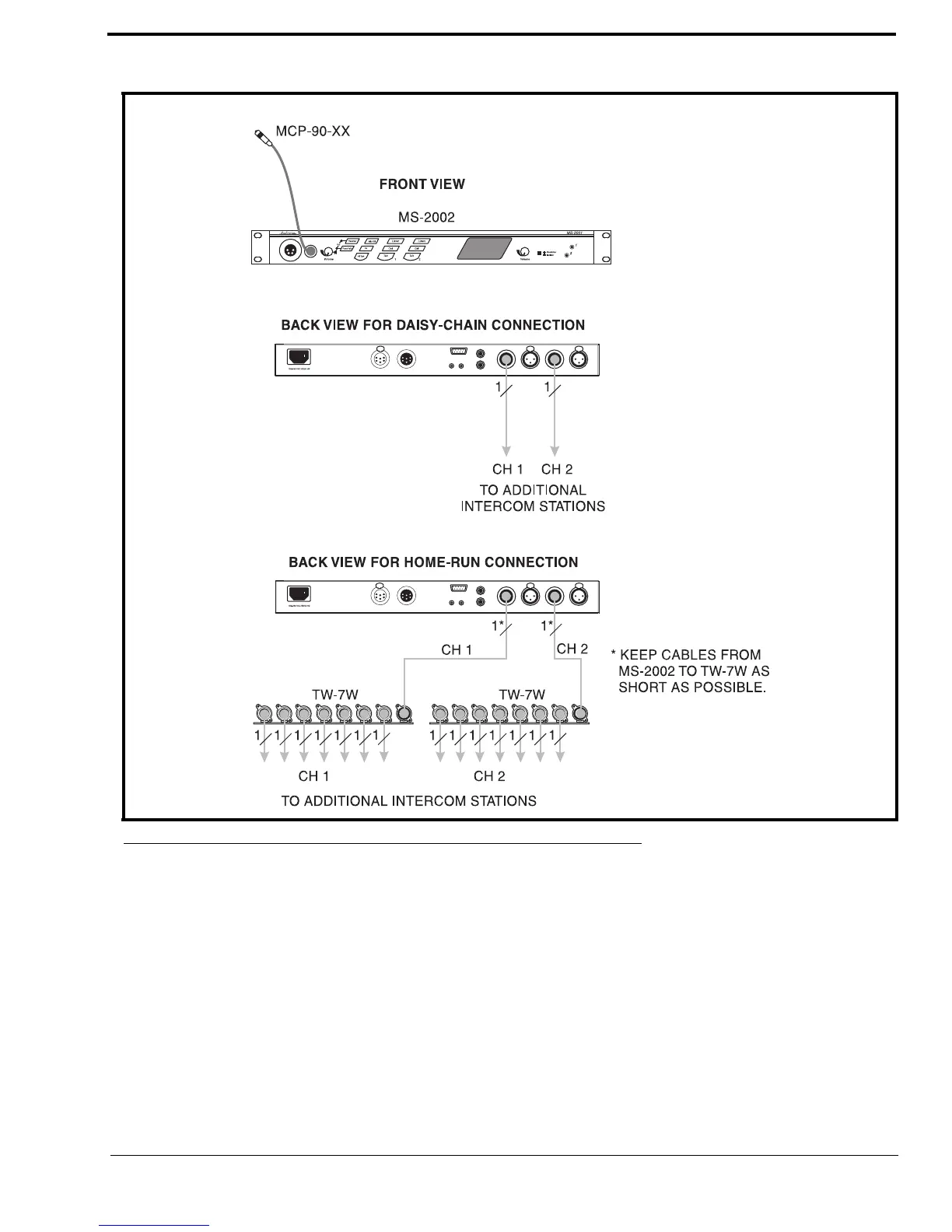

FIGURE 3. MS-2002 Monaural Master Speaker Station Configuration.
