You can connect two (2) audio sources to the Program Inputs connector: one (1) for each channel. Audio sources can be
directly connected with a user-supplied DB9M connector. For more information on the program input connector
specifications, see “Specifications” on page 15. However, a more convenient method is to use an XP-USPG Breakout Panel as
shown. The XP-USPG also interfaces the PA jack of the MS-2002 to a standard, 2-pin XLR audio cable.
NOTE: The SP-USPG Breakout Panel can be rack mounted using a BOP-1000 Rack Mount Plate.

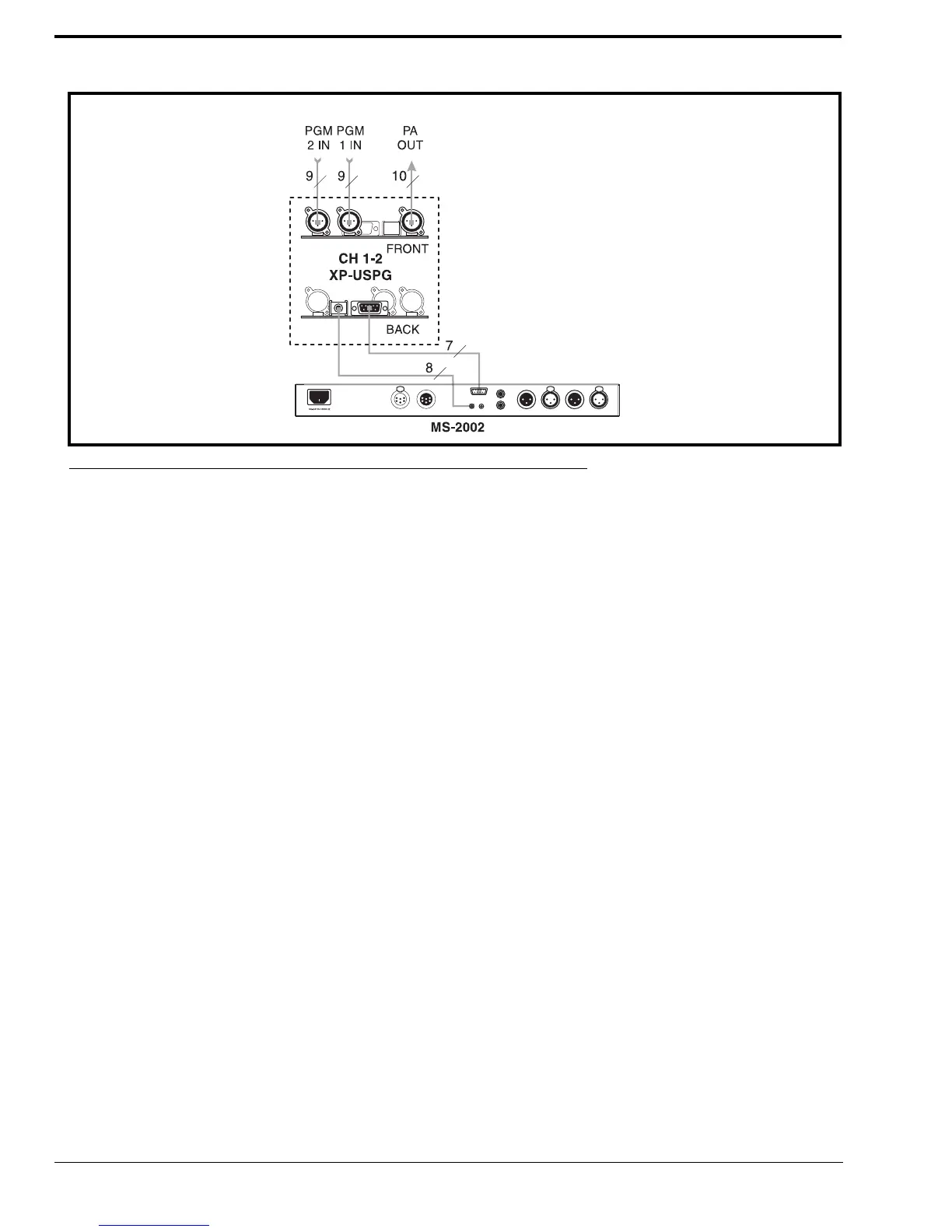

FIGURE 6. External Audio Input and PA Output.
