- 6 -
7) Power Connector: This convenient little connector allows you to
hook up all the power and turn-on wires for your OVERDRIVE PLUS
Line Driver in the convenience of a well-lighted area and then plug them
in by feel all at once in your trunk’s cavernous darkness. Screws on top
of the connector should face up. But if you put the plug in upside down,
nothing will be damaged, the OVERDRIVE Plus just will not power up!
The Inside

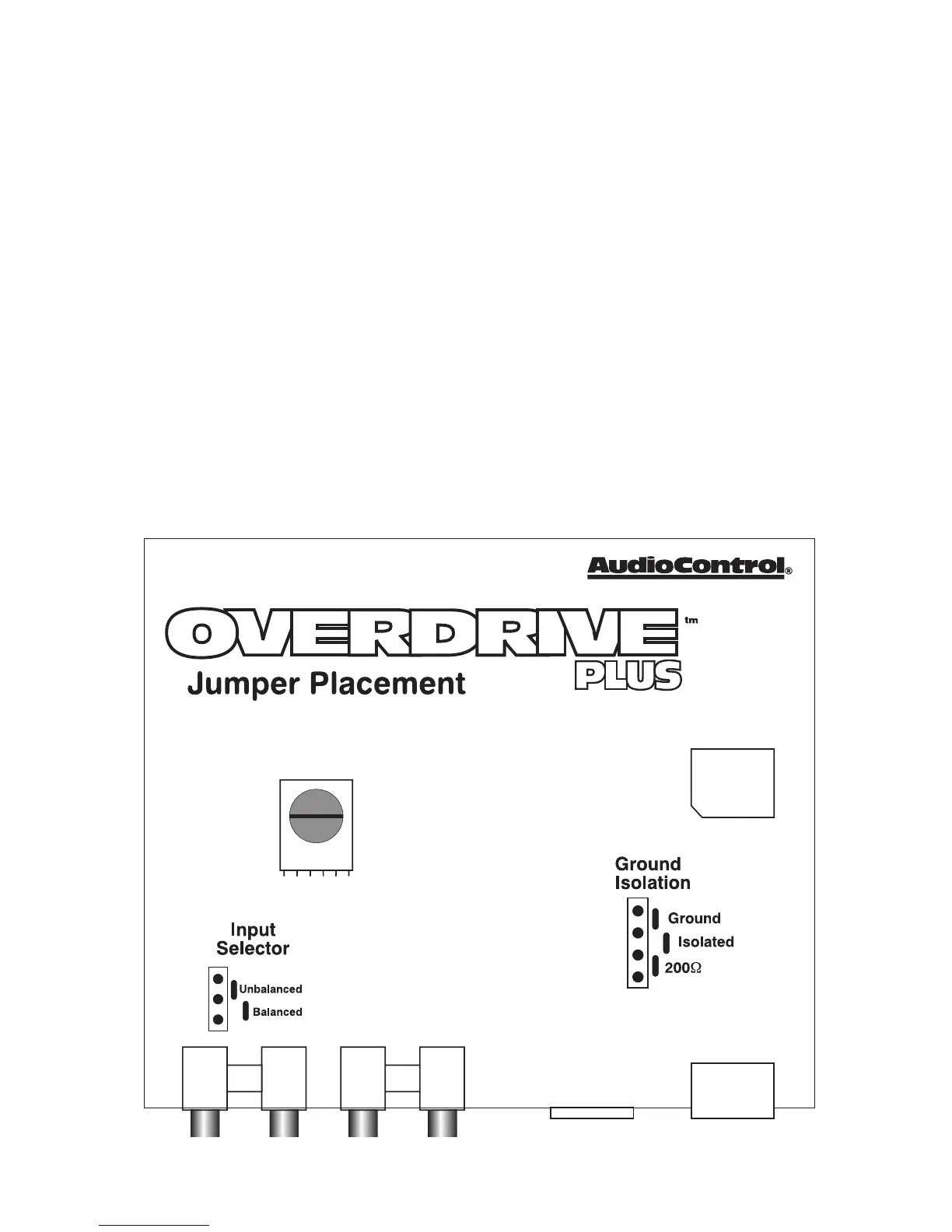

8) Ground Isolation Jumpers: OK, we all know there are installation
rules to follow for best results. Power and signal wires should be on oppo-
site sides of the car. All units should be tied to a single ground… Yes that
includes the head unit, you know the factory ground sucks…it’s tied to the
headlight dimmer. But, even when we follow all the rules, bad things do
happen on occasion. Should alternator whine rear its ugly head during the
installation, we have provided some alternate power supply
⑧
