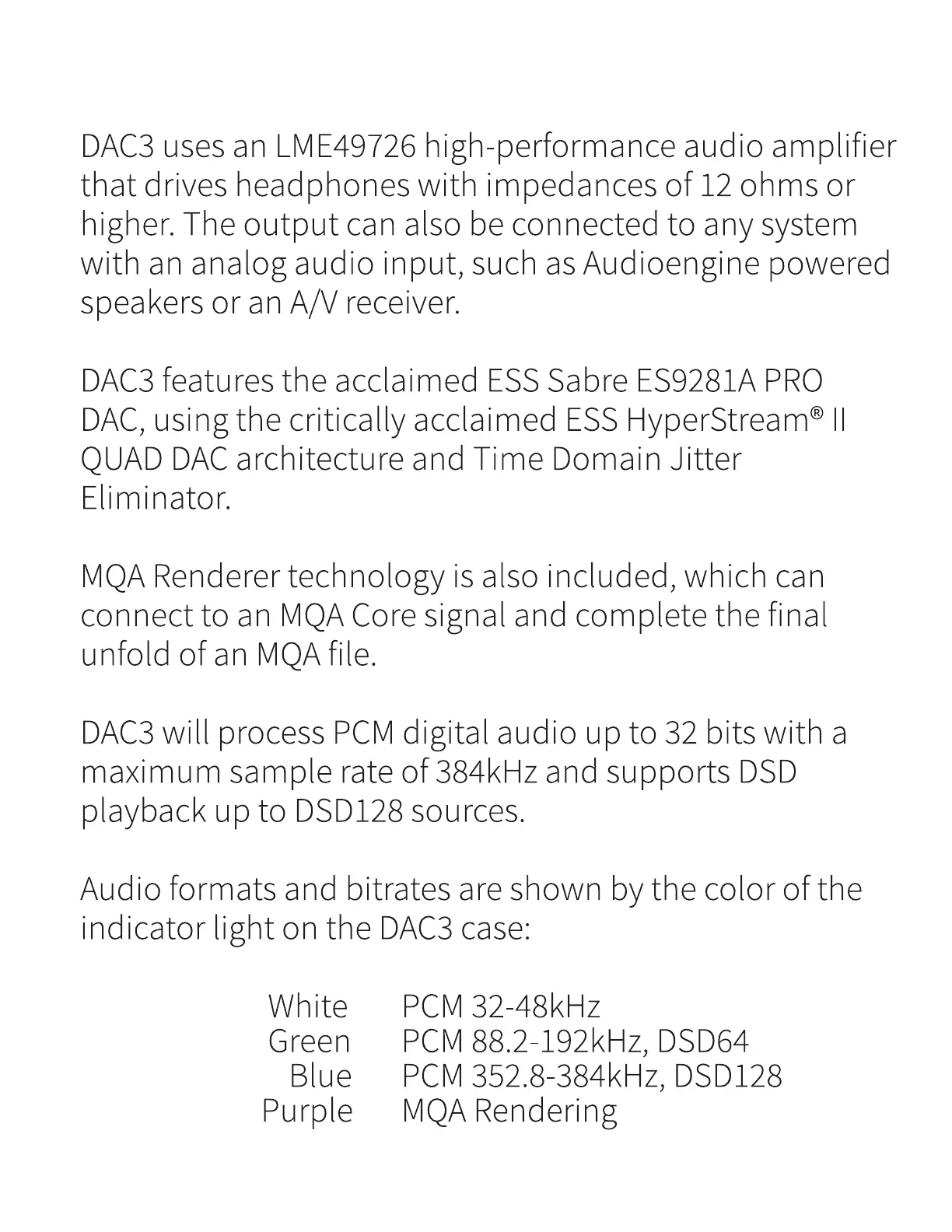

AudioEngine DAC3 User Manual

DAC3 uses an LME49726 high-performance audio amplifier
that drives headphones with impedances of
12 ohms or
higher.
The output can also be connected to any system
with an analog audio input, such as Audioengine powered
speakers or
an A/V receiver.
DAC3 features the acclaimed ESS Sabre ES9281A PRO
DAC, using the critically acclaimed ESS HyperStream® 11
QUAD DAC architecture and Time Domain Jitter
Eliminator.
MQA Renderer technology is also included, which can
connect to an MQA Core signal and complete the final
unfold of
an MQA file.
DAC3 will process PCM digital audio up to 32 bits with a
maximum sample
rate of 384kHz and supports DSD
playback up to DSD128 sources.
Audio formats and bitrates are shown by the color of the
indicator light
on the DAC3 case:
White
Green
Blue
Purple
PCM 32-48kHz
PCM 88.2-192kHz, DSD64
PCM 352.8-384kHz, DSD128
MQA Rendering

AudioEngine DAC3 Specifications

General

Brand	AudioEngine
Model	DAC3
Category	Amplifier
Language	English
