b) If we consider 2 stacks of 4 FR-X, we will have the following conguration:

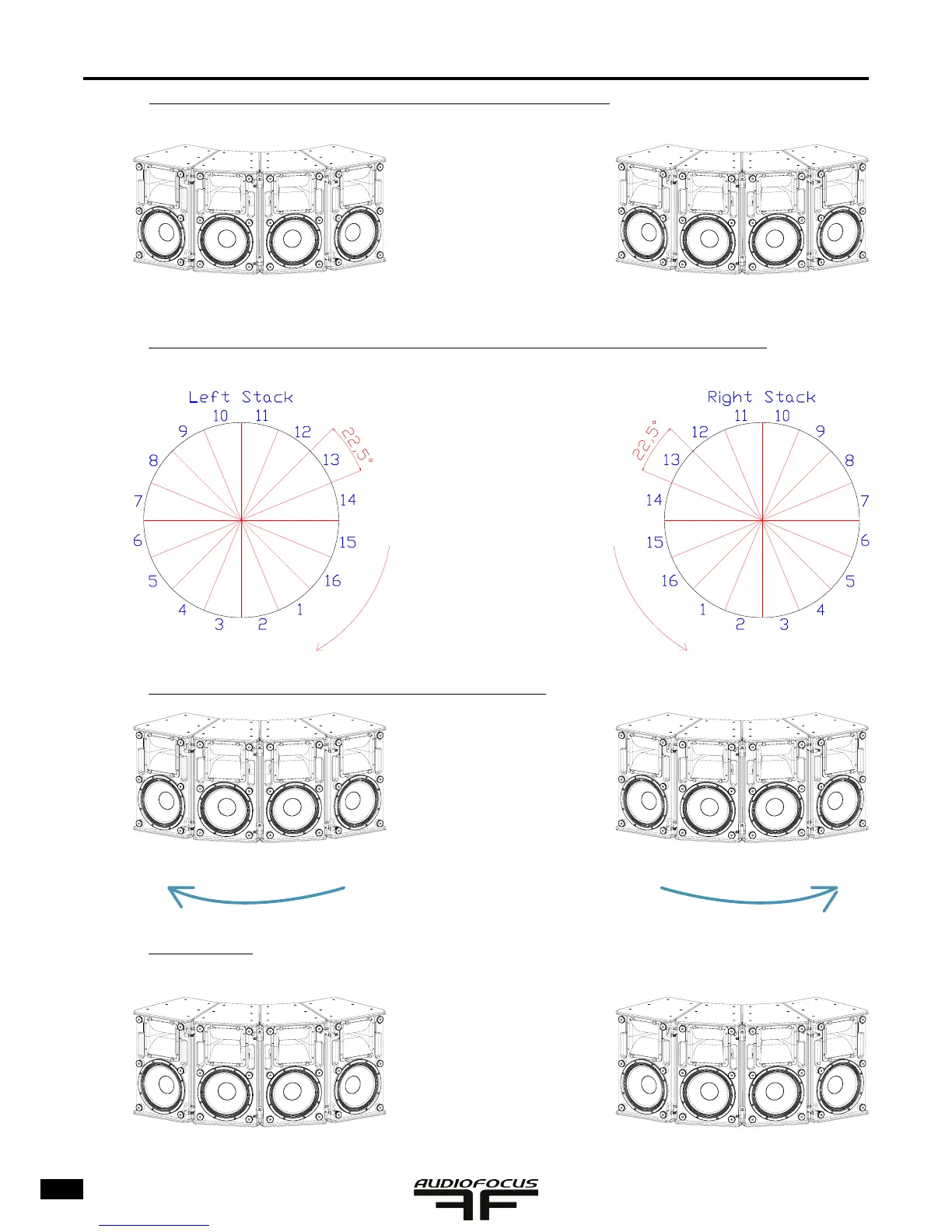

c) Identify the position of each cabinet as illustrated below. Note that left and right stacks are mirrored.
d) With four FR-X per side your cabinet positions will be as follows:
e) Set your presets: - Odd ranks (1-3-5...) have to be placed in preset 3
- Even ranks (2-4-6...) have to be placed in preset 4
Preset 4 Preset 3 Preset 4 Preset 3 Preset 3 Preset 4 Preset 3 Preset 4
Left stack Right stack
4 3 2 1 1 2 3 4
