19) The back panel supports must now
be installed.
Due to a mistake in design drawings, the
left and right mounting holes in the metal
panels are not aligned equally. Therefore
the back panel supports must be
positioned correctly to match.
Black marks on the support pieces should
be on the right side. Also the holes are
placed away from the cabinet top and
bottom edge.

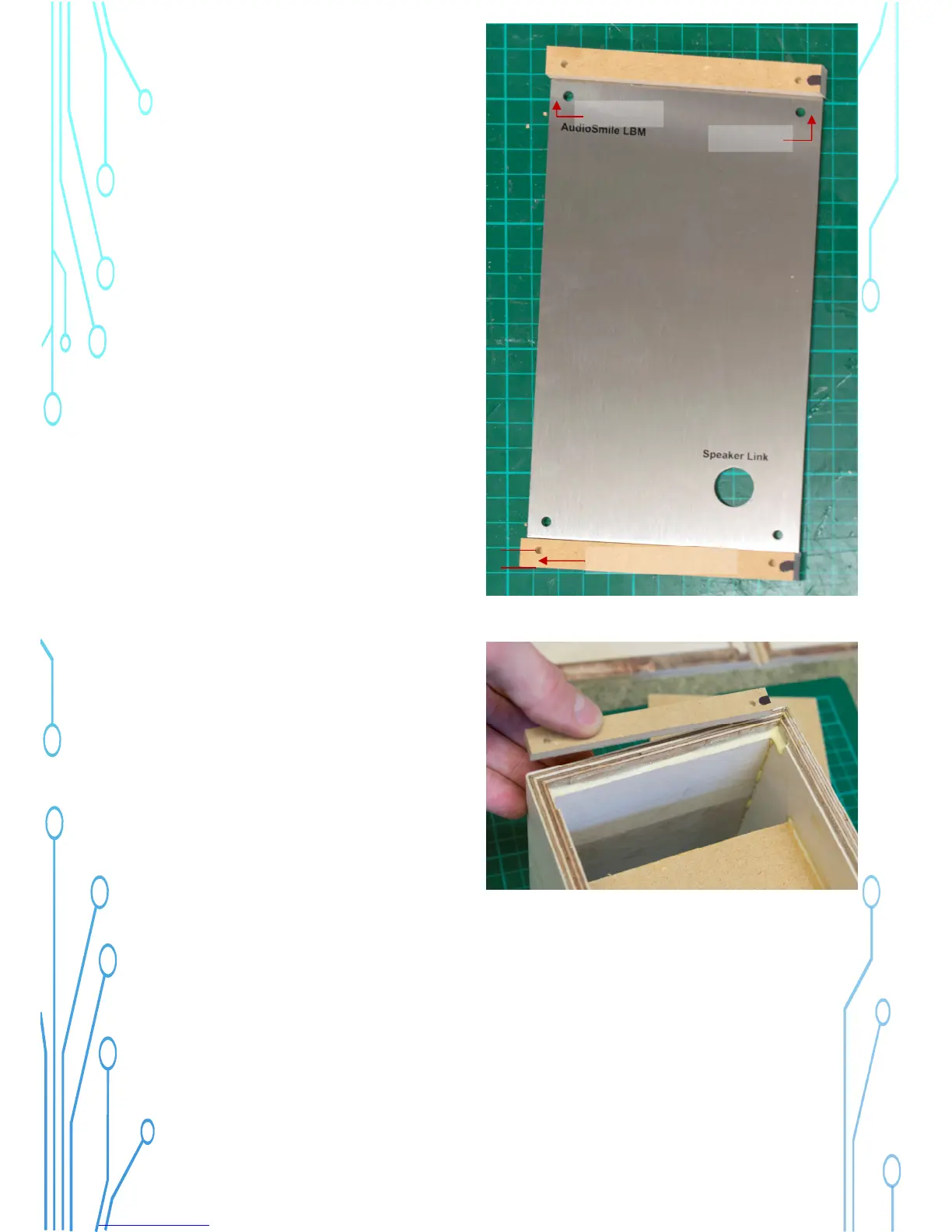

Please view the image carefully.
Smaller Gap
Larger Gap
Away from cabinet edge
20) Place glue around the top and
bottom of the cabinet back. This area is
rebated deeper to accept the back panel
supports.
To Next Page
