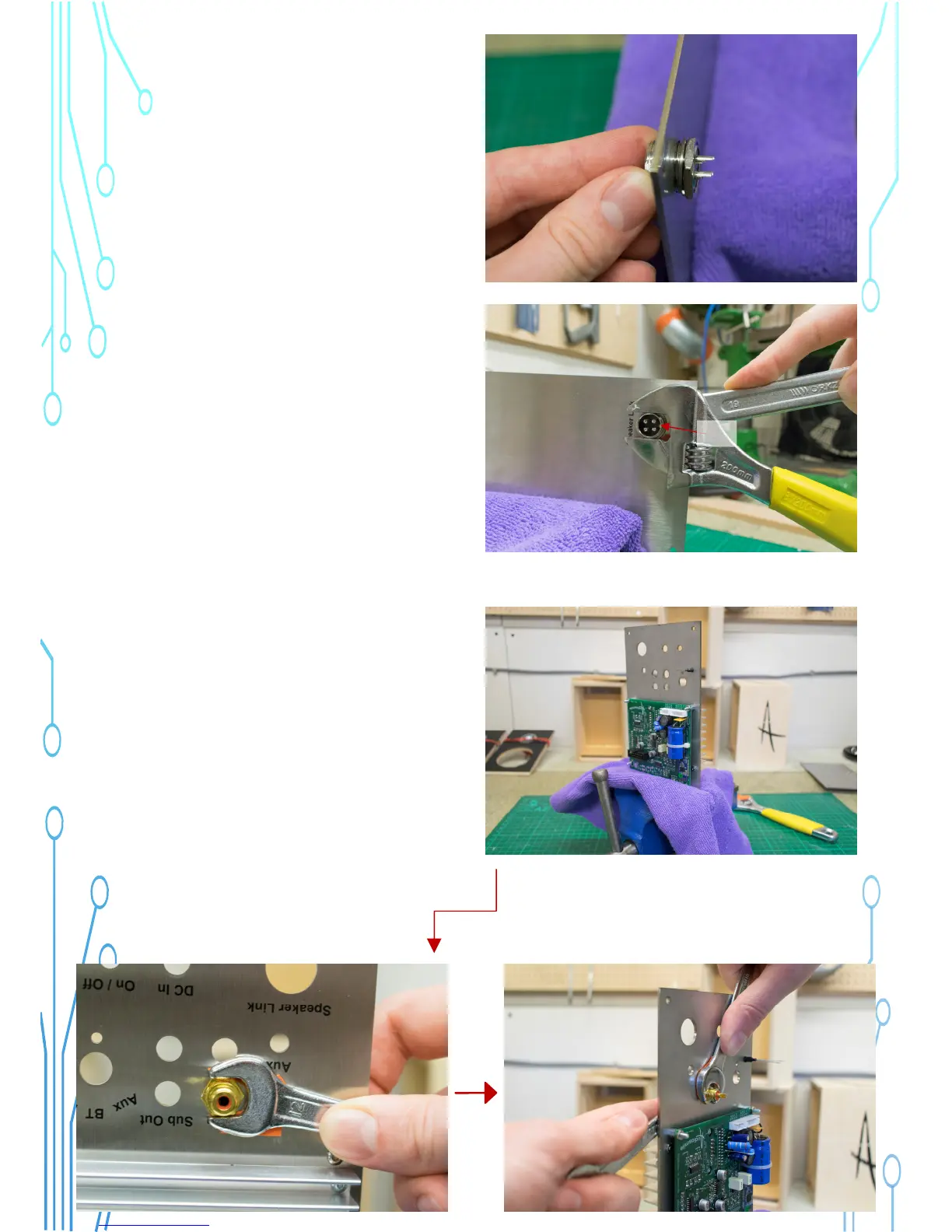

23) Install one link connector in the slave
panel. The spring washer and nut should
go on the back of the panel.
Align the connector ‘lug’ to the bottom of
the panel.
The front of the link connector has flat
sides so it can be held with a spanner. The
flat are spaced 14.5mm which is not a
standard size, so an adjustable spanner
will help.
The nut is 19mm.
Lug
24) Hold the master panel in the vice.
Install the 3x RCA connectors. Begin with
the RCA in the corner of the square
pattern.
The front of the RCA plug has a 12mm hex
shape to hold and align it. The nut is also
12mm.
The Subwoofer output only needs one
connector, so one hole will be blank. Your
kit may have 2x Red, 1x Black or 1x Red,
2x Black connectors.
