General Features and Specifications:
• 100W Amplifier (120Vac 60Hz)
• Power Consumption 200W
• Front Ported Enclosure
• Down-firing 10” Mica Filled Polypropylene Woofer
• Rubber Surround
• Crossover Frequency Adjustment (30z ~ 180Hz)
• Level Adjustment
• Line Level Inputs (RCA Connectors)
• Speaker Level Inputs • Speaker Level Pass Through Outputs
• Power Switch
• Power Indicator
• 13.25” H x 11.13” W x 14.25” D
(337
mm H x 283 mm W x 362mm D)
• Net weight: 24.2 lbs. (11.02kg)

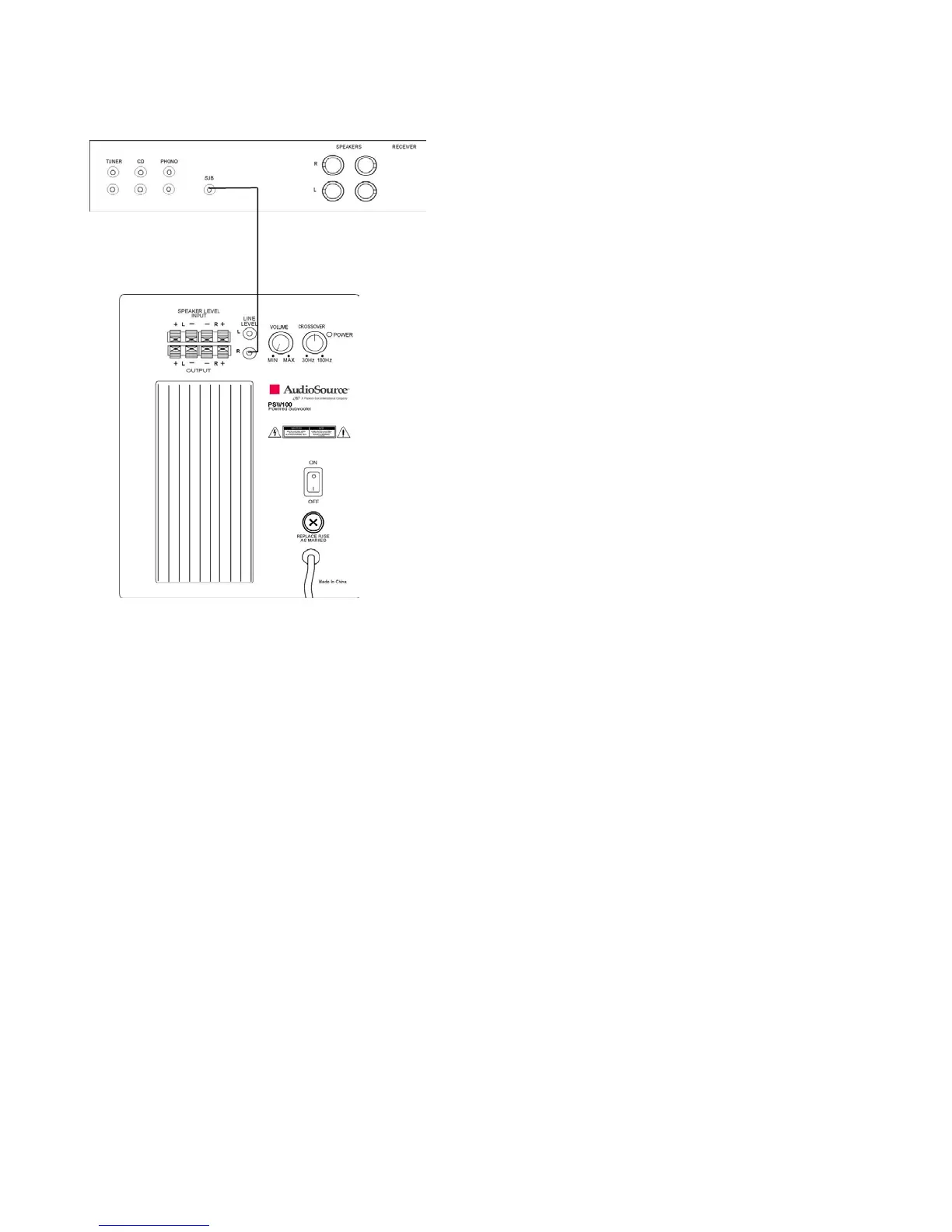

Line Level Connections
In this example, the subwoofer output of a surround
sound receiver, processor or other device is connected to
the PSW100’s line level input.
As mentioned elsewhere in this manual if the subwoofer
output of the device connected to the PSW100 has its
own crossover frequency, you should be sure that the
crossover adjustment on the PSW100 is set to a higher
frequency than the crossover frequency of the connected
device.
Example: If your Surround Receiver has a subwoofer
output set to 80Hz, then you should set the crossover
frequency adjustment on the PSW100 to approximately
100Hz.
Note: You would never connect both the line level inputs
and speaker level input at the same time.
