AudioSource SW 50 - Dedicated Subwoofer Connections

Dedicated Subwoofer Connections

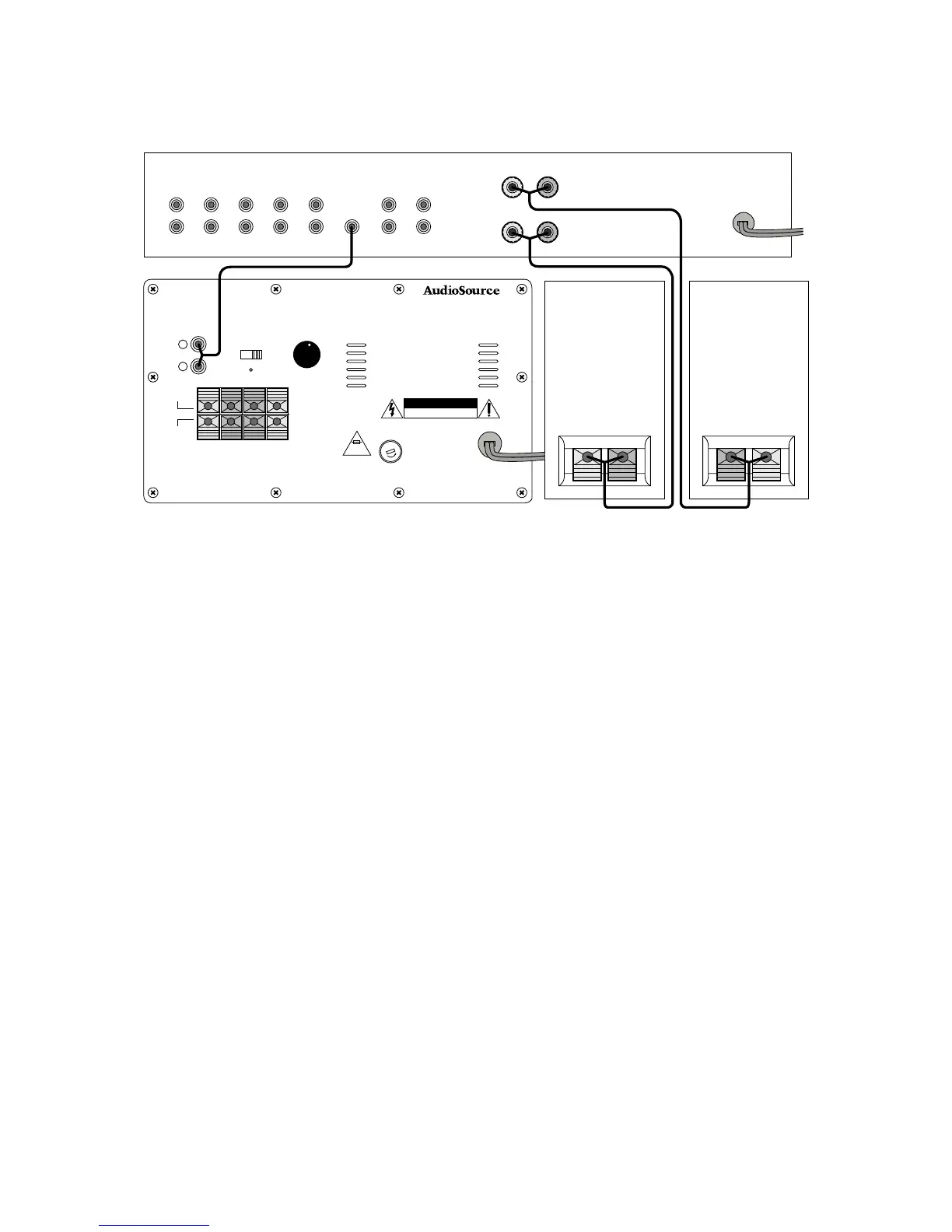

Many surround sound decoders, home theater processors and audio/video receivers are equipped with a
dedicated subwoofer line output. In this case, the signal is already processed and does not need to return to
the system or other speakers. Connect this line output to the line inputs of the SW 50. A Y connector should
be used to feed this single output to both the left and the right line inputs.
–
+
