Step 12.
Step 13.

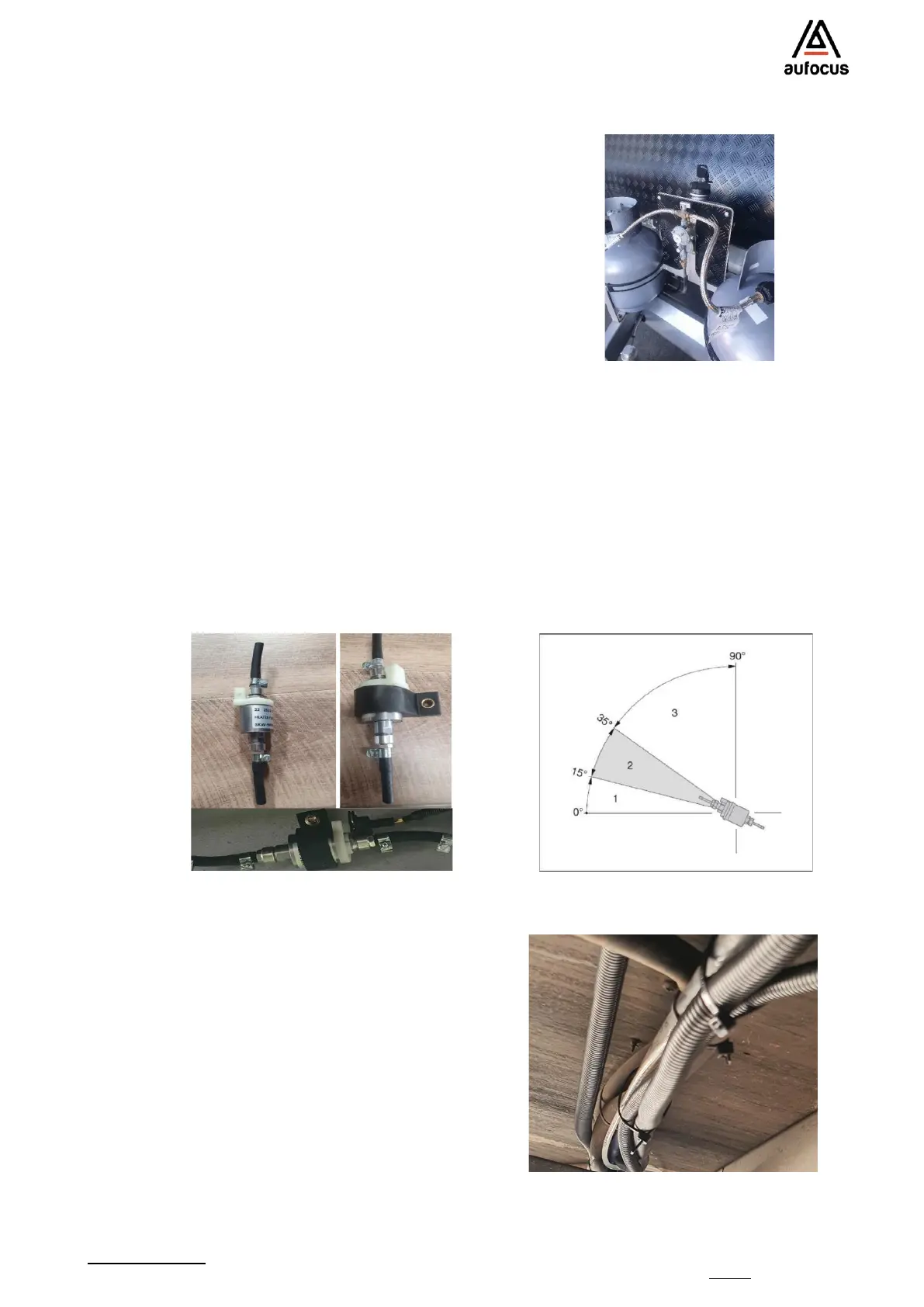

Find the location where you want to mount the fuel pump and place the small foam square
provided in place.
Note: Before mounting the actual pump, mount the short black rubber joiners to each end of
the fuel pump (Note: some models may already have the joiners attached.) and then attach the
rubber fuel pump mount over the fuel pump. Secure the joiners with mini clamps in preparation
to mount it.) Once done, go ahead and use a long self-mounting screw to mount it! Note the
image below is the recommended mounting angle.
Step 14.
Mount the fuel tank into position firmly.
In the image below the fuel tank has been
mounted to a black checker plate
between the gas bottles.
Feed the fuel line from the main unit to
the fuel pump, cut the required length,
and then measure and use the provided
conduit to cover the fuel line. Now
proceed to join the fuel line to the fuel
pump joiner. Do the same from the other
side of the fuel pump to the fuel tank!
Note: Use the provided cable ties to make
sure the fuel line and conduit is secured
neatly to the undercarriage.
