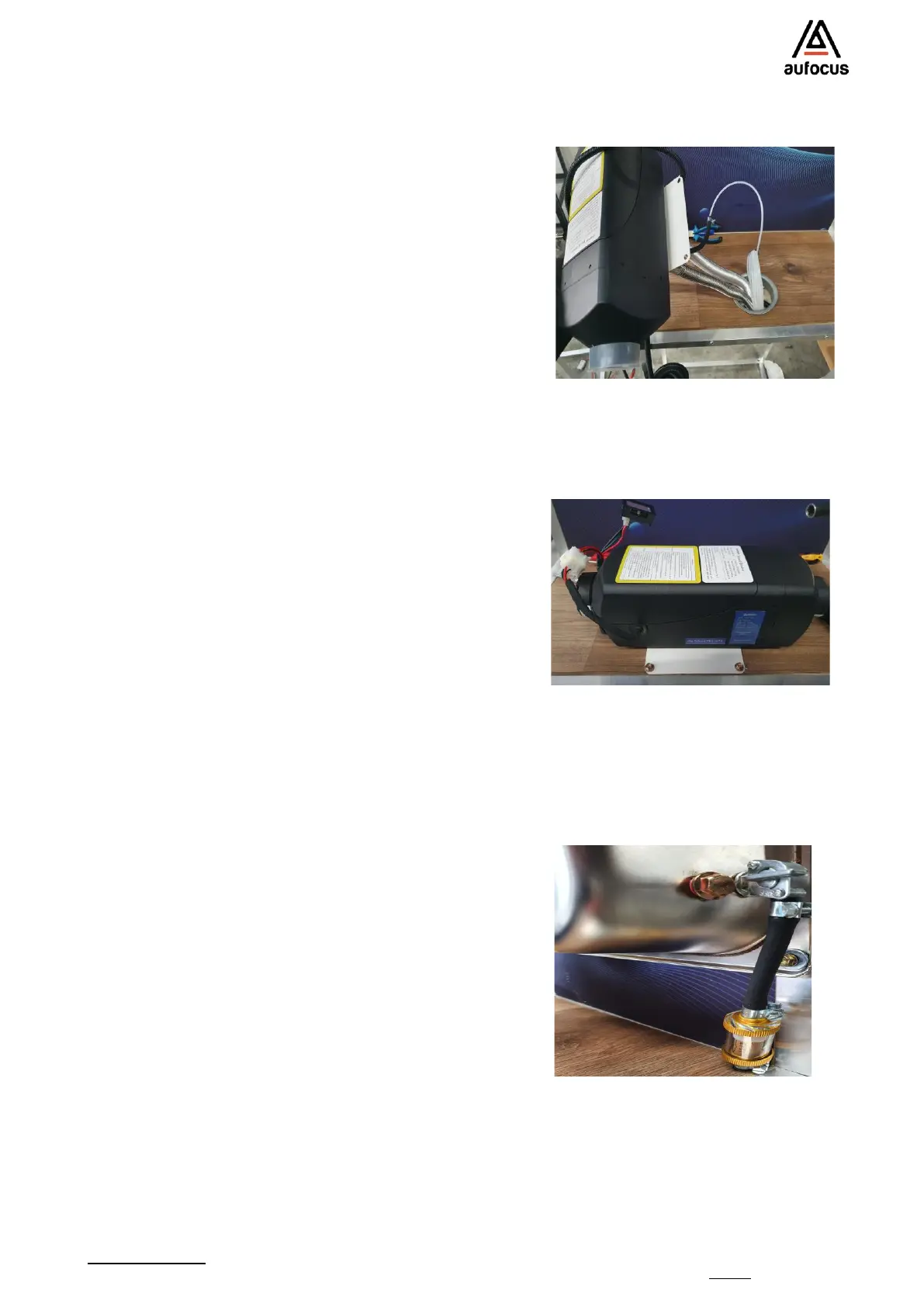

Step 9.
Step 10.
Step 11.
Feed all of the main unit attached (cold air
intake pipe, exhaust pipe, black rubber
fuel line joiner and fuel pump power)
through the mounting hole with the main
unit mounting plate firmly against the
base of the floor.
Check the position of the mounting plate
carefully on the ground and ensure that
there as much clearance as possible from
the exhaust outlet and floor or mounting
ring then mount the plate firmly to the
floor using the self-tapping screws
provided.
Mount the long black fuel line joiner and
fuel filter to the fuel tank using the mini
clamps provided.
