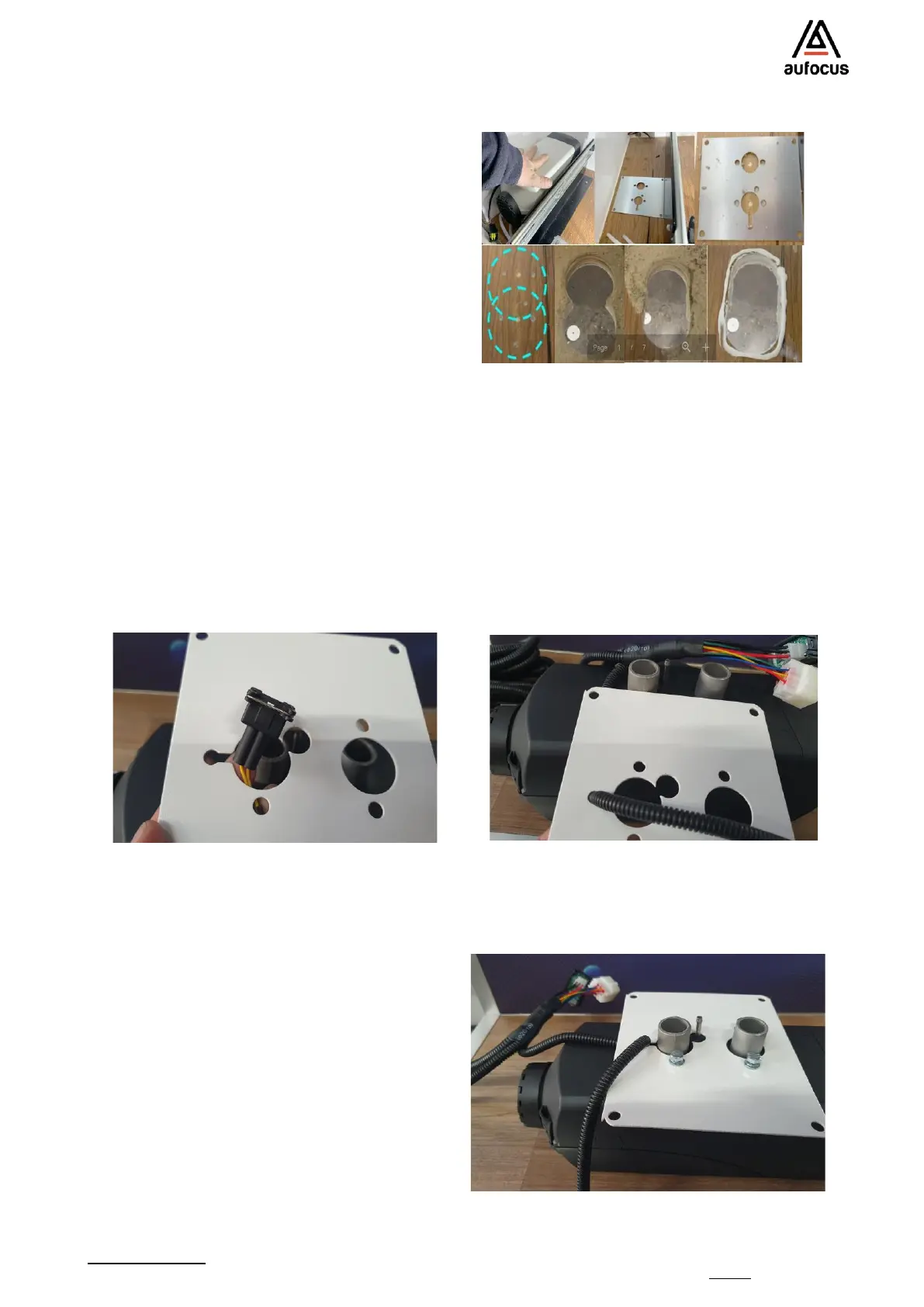

Option b.
Step 3.
Use heat resistant silicone around the edges and on the inside of the cut as shown in the images
above.
Step 4.
Feed the fuel pump power from the wiring harness through the mounting plate cold air void and
into the small adjoining void on the mounting plate. (Not all the way through. Leave around 100
mm from the wiring harness junction.
Step 5.
Overlap 2 x 75mm hole saws ensuring
the size of the overlapped holes to not
exceed the size of the mounting plate.
Remove the centres so that you will
have an oval shape. As per the images
below.
Mount the mounting plate to the main unit
securely using the bolts provided.
