Assemby Instructions for APT4300 – Aunger 4’x 3’ Trailer
3
This assembly instruction is for building TRAILER KIT APT4300.

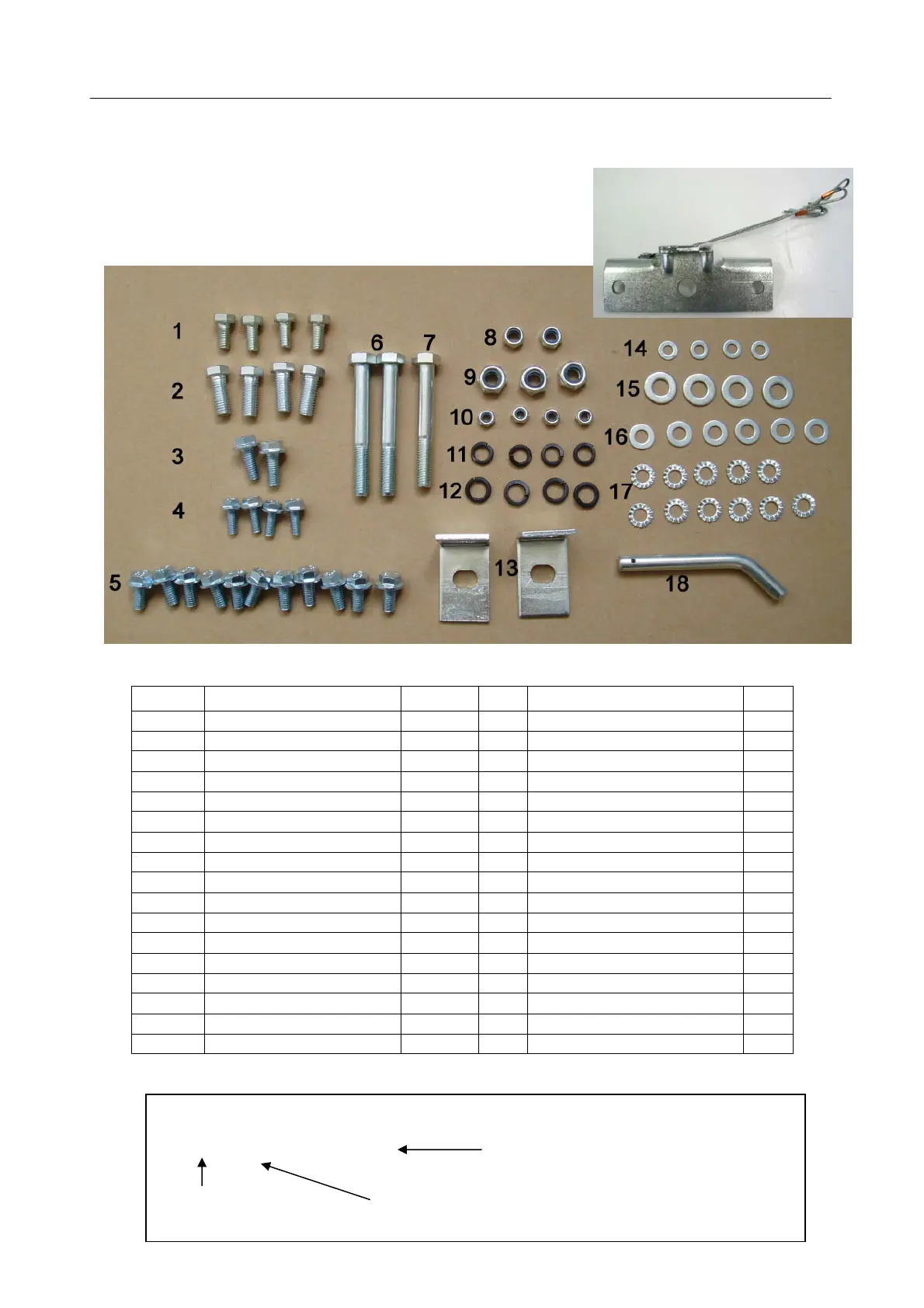

Please use the enclosed assembly kit:
NO. DESCRIPTION QTY NO. DESCRIPTION QTY
1 M8*20 HEX-BOLT 4 18 10 L LATCH 1
2 M10*30 HEX-BOLT 4 19 FRONT GATE 1
3 M8*30 FLANGE HEX-BOLT
2 20 REAR GATE 1
4 M6*15 FLANGE HEX BOLT
4 21 LEFT SIDE PANEL 1
5 M8*15 FLANGE HEX-BOLT
11 22 RIGHT SIDE PANEL 1
6 M10*80 HEX-BOLT 2 23 PLATFORM 1
7 M10*75 HEX-BOLT 1 24 DRAWBAR 1
8 M8 LOCKNUT 2 25 FENDER (Mud Guard) 2
9 M10 LOCKNUT 3 26 LIGHT BOARD 1
10 M6 LOCKNUT 4 27 LIGHT BOARD SUPPORT 2
11 M8 SPRING WASHER 4 28 HITCH COUPLER (Coupling) 1
12 M10 SPRING WASHER 4 29 TRIANGLE BRACKET 1
13 RIGHT-ANGLE ELBOW 2 30 AXLE w/ shock absorbers 1
14 M6 FLAT WASHER 4 31 WHEEL 2
15 M10 FLAT WASHER 4 32 ELBOW (Drawbar Bracket) 1
16 M8 FLAT WASHER 6 33 CHAIN 1
17 M8 LOCK WASHER 11
Explanation of bolt sizes
E.g. M10*30 Flange Hex Bolt Type of Bolt i.e hex head with flange
Size of the bolt head – 10mm Length of Bolt Shaft – 30mm
