Aura Cebilon - Page 11

Installation
scheme
Leitungswasser / Mains Water
RO-Wasser / RO-Water
Abwasser / Waste Water
11
8
2
7
6 3 4 5
1

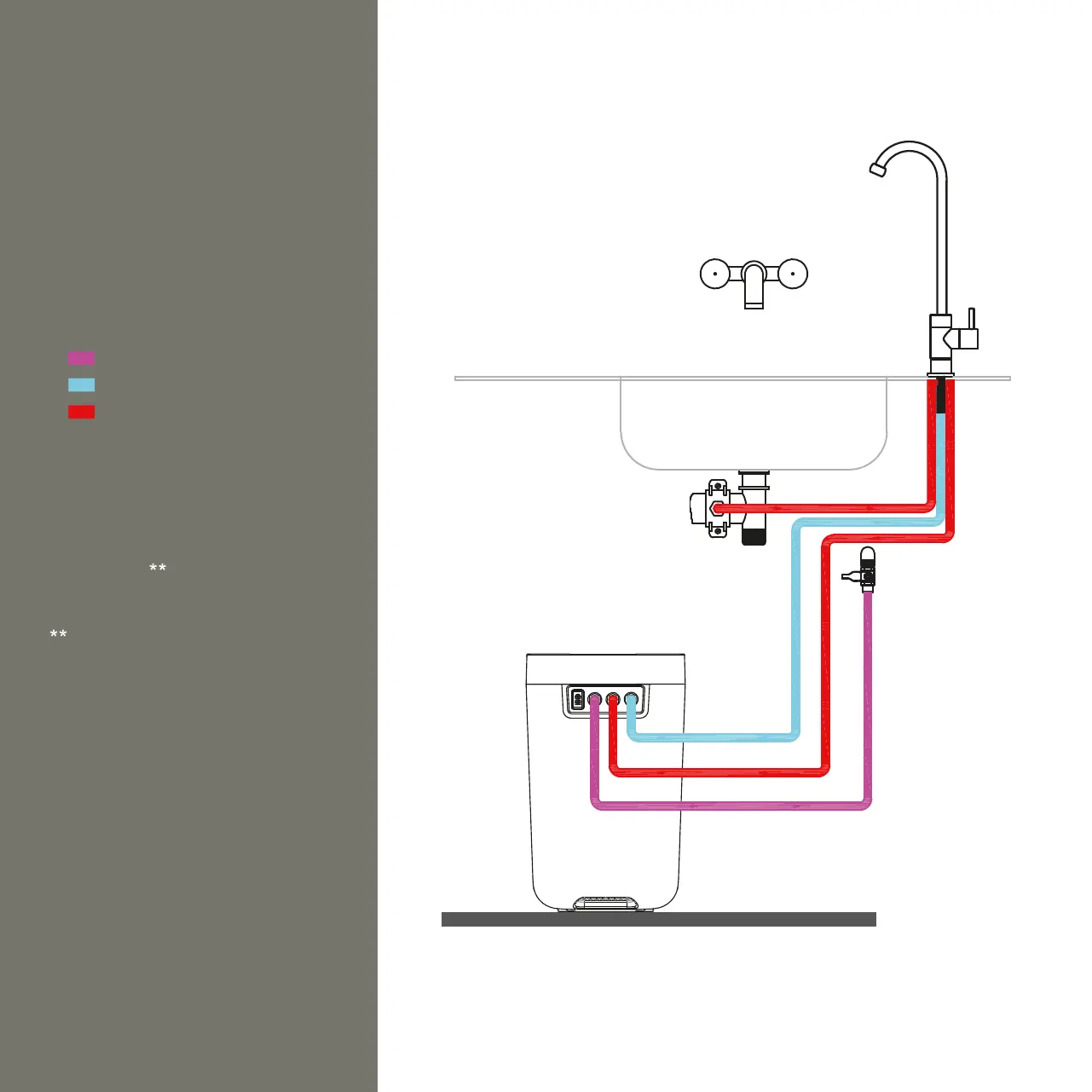

Figure 4. RO Installation Diagram
1 Cebilon
2 Water Inlet Valve
3 Appliance Water Inlet
4 Waste Water Outlet
5 RO Water Outlet (Clean Water)
6 24 V Input
7 Waste Water Bracket
8 Clean Water Faucet
Applicable for 101 ME and 101 MD models.
