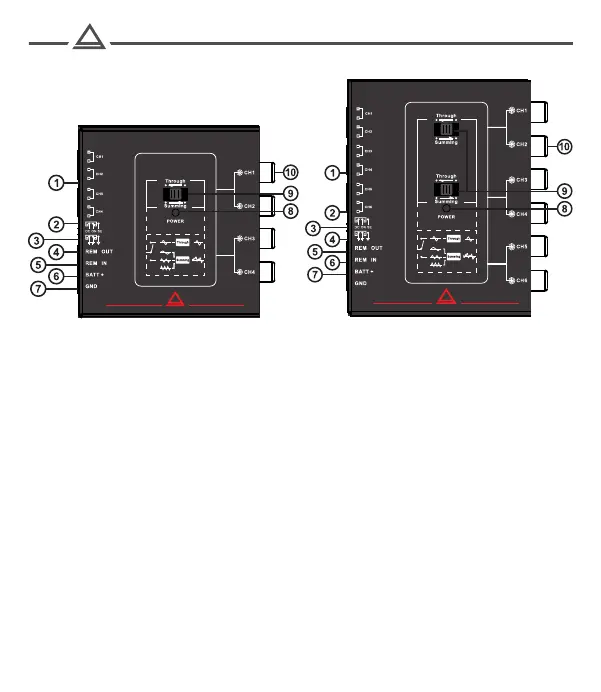

Controls
Hi-INPUT
LINE
OUTPUT
Hi-LOW CONVERTER
6 CHANNEL RHL-6
Hi-INPUT LINE
OUTPUT
Hi-LOW CONVERTER
4 CHANNEL RHL-4
1. High level inputs
2. Jumper for selecting the device power-on mode*
3. Grounding type selection jumper
4. Control output +12V (power control for external amplifiers)
5. Control input +12V (Remote)
6. Power supply +12V
7. Power -12V (ground)
8. Power indicator
9. Audio through/sum selector
10. RCA audio outputs for external amplifiers
*Set jumper (2) to SE position to turn on the device via an audio signal
3
