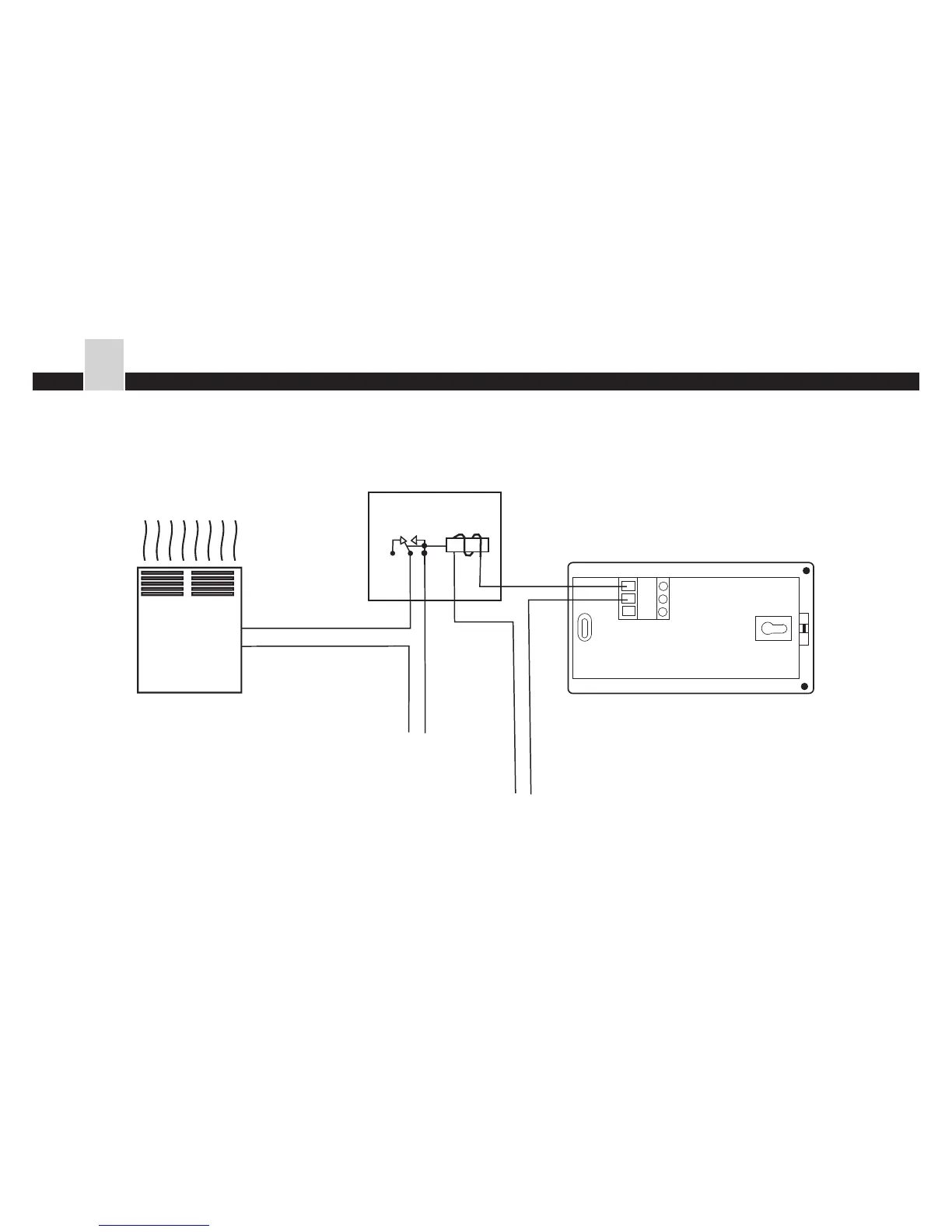

8.2 How to connect AURATON 2005 to single-
phase heating device with working load
exceeding 5A thought magnetoelectric
relay.
AURATON 2005
NO
COM
NC
POWER
SUPPLY
max ~220V
HEATING
DEVICE
MAGNETOELECTRIC
RELAY
AURATON 2005 - How to connect
