AURATON RTH
receiver connected
to air-conditioner
AURATON H-1
window handle
to be purchased
separately
RTH receiver operation
with air-conditioning device
Basic device configuration

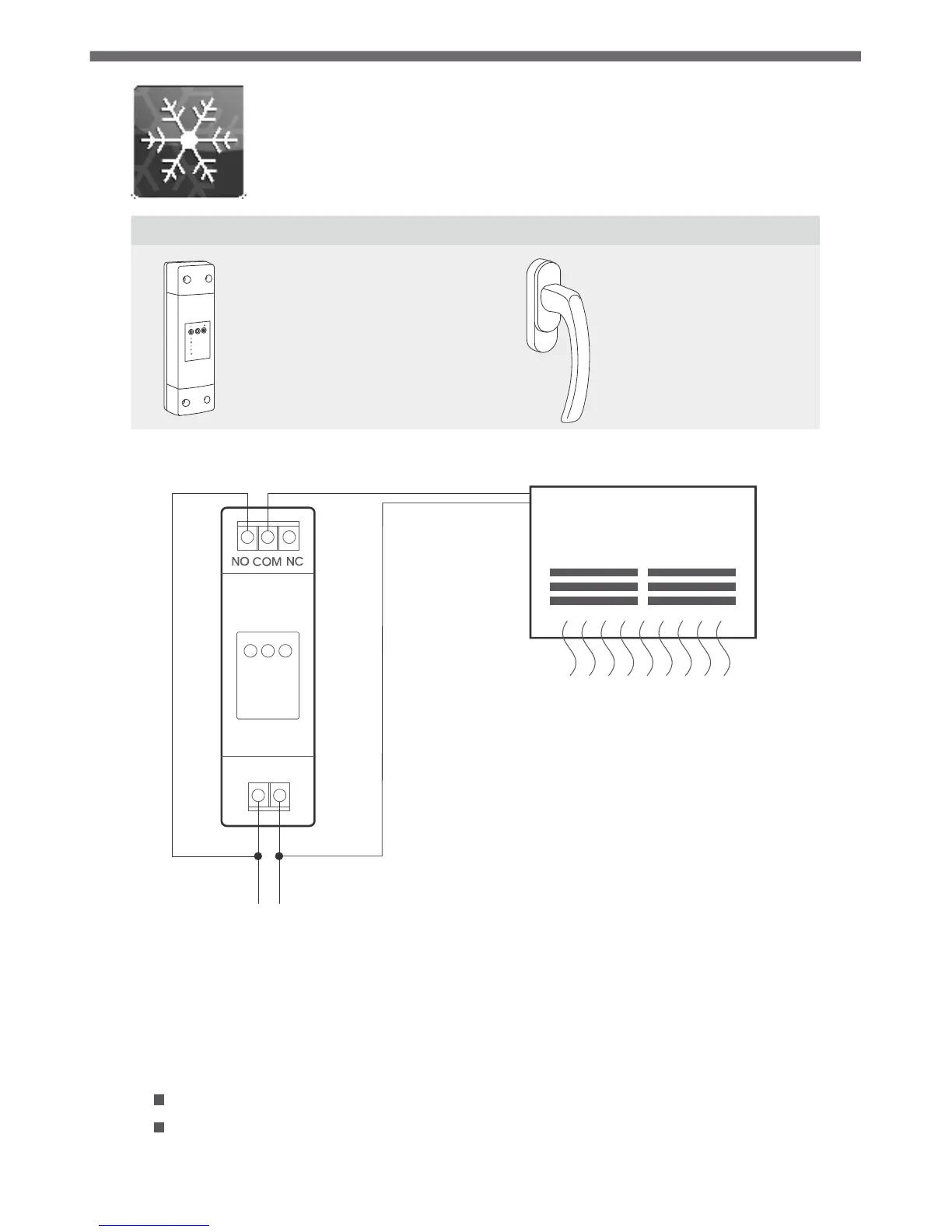

A simplified schematic
of connecting the AURATON RTH
receiver with air-conditioning
device
air-conditioning
device
~230 VAC
AURATON RTH
NL
Max 16A
Cooperation of the RTH receiver with the H-1 handles
without the T-1 controller and the T-2 thermometer
A) Air-conditioning controlling.
In order for the RTH receiver to be able to control air-conditioning:
it cannot be the associated with any T-1 controller or T-2 thermometer,
it must be associated with at least one H-1 handle or window position
sensor.
AURATON RTH
O
FF
ON
IN
OUT
ALARM
RESET
